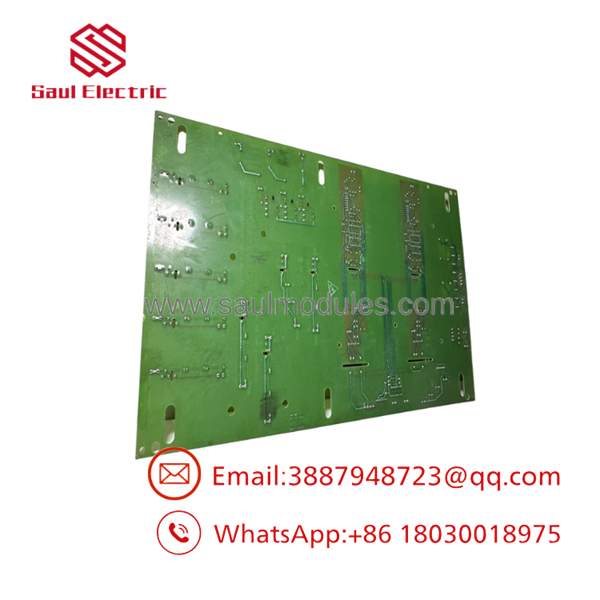

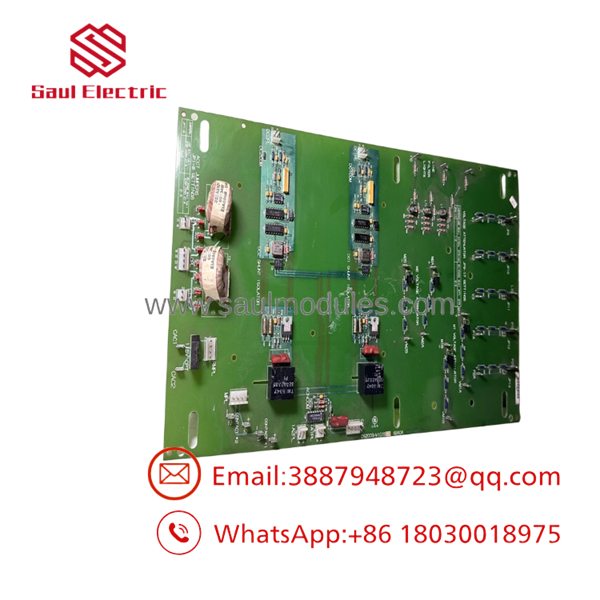

GE DS200SHVIG1B High Voltage Interface Board

Description

Product Introduction & Engineering Value

The GE DS200SHVIG1B is a High Voltage Interface Board from the DS200 family used with GE Mark V-era industrial control equipment. Its job is to interface higher-voltage field/control signals with the electronics that perform monitoring and control.

This is not a board to substitute by appearance alone. Legacy GE boards can share similar mechanical formats while having different electrical functions. When replacing a DS200SHVIG1B, the complete part number, board revision, terminal arrangement, and original system documentation should be checked before energization.

Technical Specifications

Specification caution: Exact voltage ratings, terminal assignments, signal ranges, fuse arrangements, and connector pinouts should be taken from the applicable GE documentation for the specific installation. Those values should not be extrapolated from the DS200 family designation.

Field Application & the “Trench” Experience

A technician replacing a high-voltage interface board during a turbine-control outage has very little room for error. The original board may have been operating for years, and a failure can appear as a misleading combination of voltage, feedback, or control alarms.

Consider a plausible outage: the maintenance team identifies DS200SHVIG1B as the failed board and has a spare ready. Before removing the original, they photograph every terminal connection and record the board identification. After installation, they perform insulation and wiring checks before applying control power. The board powers correctly, but the team does not immediately return the equipment to service. They first verify the expected field signals.

That sequence matters. High-voltage interface hardware deserves a controlled commissioning process, not a simple plug-and-play swap.

Niche application scenarios

• GE Mark V turbine control cabinets: interfacing monitored or controlled high-voltage signals within legacy turbine-control installations.
• Industrial drive control panels: replacement of failed interface circuitry during planned maintenance.
• Legacy power-conversion equipment: maintaining existing GE control electronics where migration to a newer platform is not immediately justified.

Transparency SOP: QA & Testing

A proper QA workflow for a DS200SHVIG1B should cover both the electronics and the physical condition of the board.

1. Identity verification
Confirm DS200SHVIG1B, board family markings, revision information, and available serial/traceability data.

2. Visual examination
Inspect connectors, terminals, PCB traces, solder joints, components, mounting hardware, and any areas showing heat discoloration or contamination.

3. Electrical screening
Check for obvious shorts, damaged components, abnormal resistance paths, and other conditions that could create problems during initial energization.

4. Functional verification
Where suitable GE test equipment or a compatible system is available, verify the board under controlled operating conditions.

5. Shipment documentation
Record the tested condition, available test results, warranty terms, and actual stock condition.

For New Surplus units, ask specifically whether the board is unused original inventory or whether it has previously been installed and subsequently tested.

DS200SHVIG1B

DS200SHVIG1B

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not confuse physical fit with electrical compatibility.
A DS200 board that slides into the same general cabinet location is not automatically a valid replacement for DS200SHVIG1B.

⚠️ Trap #2 — High-voltage circuits change the replacement procedure.
Follow the site’s lockout/tagout and electrical safety procedures. Verify that hazardous voltage has been isolated and discharged before touching the board or associated wiring.

PRO TIP: Photograph the terminal block and connector arrangement before removal. Label field wiring if the installation documentation is incomplete. On legacy equipment, a clear photo of the original installation can be more useful than a generic wiring diagram.

⚠️ Trap #3 — Don’t skip post-installation signal verification.
A board that powers up without an immediate fault is not necessarily functioning correctly. Verify field inputs/outputs against the expected values before placing the controlled equipment back into operation.

Dynamic FAQ

What is the GE DS200SHVIG1B?

The DS200SHVIG1B is identified as a GE DS200 High Voltage Interface Board associated with GE’s legacy Mark V control architecture.

Is DS200SHVIG1B a standard digital I/O module?

No. It should be treated as a specialized interface board rather than a generic PLC digital I/O card. The actual signal functions must be verified against the applicable GE system documentation.

Can I substitute another DS200SHVI board?

Not without verification. Compare the complete part number, revision, terminal configuration, electrical characteristics, and application requirements. Similar-looking boards may have different configurations.

What information should I provide when requesting a replacement?

Provide the complete part number, photographs of the board label and connectors, the equipment model, and the original board revision if available. This gives the supplier enough information to reduce the risk of an incorrect substitution.

How should New Surplus condition be verified?

Ask for photographs of the actual unit and confirmation that it is unused surplus. Also ask whether it has been electrically tested, repaired, modified, or previously installed.

What warranty should I request?

For a critical spare, confirm the warranty period, DOA policy, return conditions, and whether functional testing is documented. Warranty coverage varies by supplier, so it should be confirmed before purchase.
