Description
Product Introduction & Engineering Value
The GE DS200TCDAH1BHE is a TCDA digital I/O board from the DS200 Mark V family. It provides the interface between discrete field signals and the control system, making terminal identification and configuration verification central to a successful replacement.
Do not substitute another DS200TCDA solely because the board looks identical. The complete DS200TCDAH1BHE identifier, hardware configuration, field wiring, and host-system drawings should be checked before installation.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: DS200
Control Platform: Mark V
Board Designation: TCDA
Part Number: DS200TCDAH1BHE
Board Type: Digital I/O interface board
Primary Role: Discrete field-signal interface
Configuration: H1BHE
Typical Installation: GE Mark V control cabinet
Application: Turbine control and related industrial control systems
Lifecycle: Legacy hardware
Replacement Requirement: Exact part-number and configuration verification
Technical caution: Public documentation does not provide enough authoritative information to safely specify every channel assignment, terminal number, voltage level, or electrical rating for the exact H1BHE configuration. Use the applicable GE system drawings and board documentation for those details.
Field Application & the “Trench” Experience
A turbine maintenance crew is replacing a failed discrete I/O board during a scheduled outage. The removed board is marked DS200TCDAH1BHE. The spare is already in the storeroom, so the job appears simple.
The technician still stops first.
Every field connection is photographed and labeled. The original board’s rack position and configuration are recorded, and the spare is compared against the removed unit. After installation, the team verifies individual discrete inputs and outputs before allowing the control sequence to proceed.
That extra verification is worthwhile. A misplaced field wire can create a control-system fault that looks like a failed replacement board.
Specific application scenarios
- Gas turbine permissive circuits: Interfacing discrete status and permissive signals used during startup and shutdown sequences.
- Turbine auxiliary equipment: Handling discrete feedback from pumps, valves, switches, and protective devices.
- Mark V outage maintenance: Replacing failed TCDA hardware while preserving the existing control architecture.

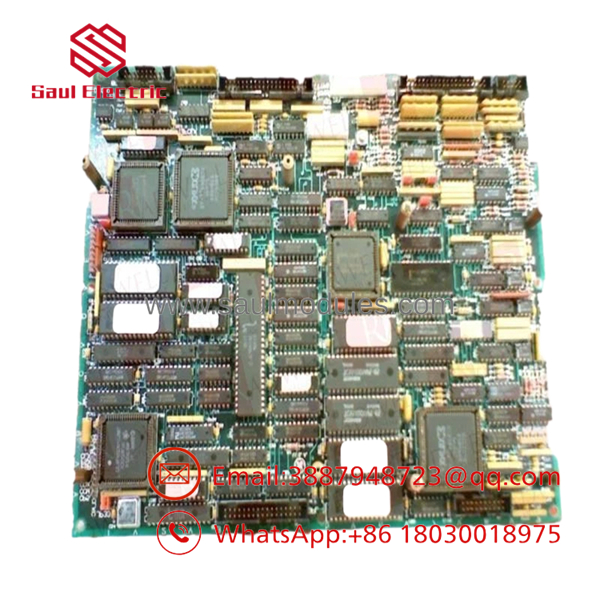

DS200TCDAH1BHE
Transparency SOP: QA & Testing
For New Surplus inventory, use a structured receiving inspection:
- Verify identification — Confirm DS200TCDAH1BHE on the actual board.
- Inspect the PCB — Check connectors, terminal interfaces, edge contacts, solder joints, and visible components.
- Review configuration — Compare switches, jumpers, daughterboards, and revision markings with the original.
- Check physical condition — Look for corrosion, contamination, impact damage, or evidence of previous installation.
- Functional test — When a compatible Mark V test setup is available, test applicable I/O functions.
- Document the result — Record the board number, condition, and test status.
- ESD protection — Use appropriate anti-static packaging for storage and shipment.
For refurbished units, ask for the specific repair and functional-test scope. A visual inspection alone does not establish operational reliability.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing TCDA compatibility with exact configuration
The TCDA designation is not enough. Match the complete DS200TCDAH1BHE identifier and verify the host-system configuration.
⚠️ Trap #2 — Moving wires without documenting them
This is an avoidable maintenance error. Photograph the original terminal arrangement before disconnecting the board, and retain those records with the work order.
PRO TIP: Mark both the terminal location and the wire identification. Wire color alone is not a reliable substitute for a terminal record.
⚠️ Trap #3 — Testing only the board
After installation, verify the complete signal path—from the field device through the wiring and terminal interface to the control system. A board-level check does not prove that the field circuit is correct.
Dynamic FAQ
What is the GE ?
The is a GE TCDA digital I/O/interface board associated with the DS200 Mark V control platform.
What is the TCDA board used for?
It provides discrete field-signal interface functions within compatible GE Mark V control systems. Exact channel assignments should be verified against the applicable system documentation.
Can be replaced by another TCDA board?
Not automatically. Verify the complete part number, hardware configuration, terminal arrangement, and host-system requirements before approving a substitute.
What should I provide when sourcing this board?
Provide the complete number, photographs of the original board, all revision/configuration markings, host equipment information, and the board’s cabinet or rack location.
How can I verify New Surplus authenticity?
Request photographs of the actual unit, including the GE identification label and PCB markings. Confirm that it is unused rather than previously installed or refurbished, and request available inspection or functional-test records.
Does the replacement come with a warranty?
Warranty terms depend on the supplier and inventory condition. Confirm the warranty duration, test coverage, DOA policy, return procedure, and commissioning support before purchase.
