GE DS200TCEBG1AAB Speedtronic Mark V Emergency Trip Board

Description

3. Product Introduction

The GE DS200TCEBG1AAB serves as an Emergency Trip Board / Protective Executive Card (TCEB) within the GE Speedtronic Mark V turbine control system. Installed in the protective core cabinet segment (such as the <P> core), it provides independent, hardwired backup overspeed protection and coordinates emergency shutdown sequences across gas and steam turbines.

Operating in Triple Modular Redundant (TMR) configurations alongside the <R>, <S>, and <T> primary control cores, the TCEBG1AAB conditions high-speed magnetic pulse inputs from shaft speed sensors. When an emergency condition or overspeed limit is detected, it directly energizes or de-energizes the trip solenoid valve (TSV) circuit through onboard relay outputs, bypassing main software processors to ensure immediate mechanical safety isolation.

4. Key Technical Specifications

5. Application Scenarios & The “Trench” Experience

During an overspeed test on a heavy-duty gas turbine, shaft speed accelerates toward the 110% trip threshold. While main control processors manage primary governor response, the independent <P> core containing the DS200TCEBG1AAB board constantly evaluates raw pulse streams from magnetic speed sensors. The moment speed crosses the hardwired limit, logic gates on the TCEB card drop out the master trip circuit, dumping hydraulic trip oil pressure instantly. Having a reliable, bench-certified TCEB board ensures that fail-safe hardware trips actuate without delay during real-world load rejection events.

• Heavy Gas Turbine Emergency Protection – Hardwired Overspeed Trip – Provides autonomous speed monitoring to prevent catastrophic rotor overspeed.
• Steam Turbine Trip Logic – Master Trip Solenoid Actuation – Intermediates trip commands directly to electro-hydraulic trip valves.
• Plant Safety Interlocks – Independent Safety Layer – Operates within the Mark V <P> core outside primary software control loops.

6. Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark V test rigs.

1. Inbound Visual & Substrate Audit: High-magnification check for scorched traces, compromised relay contacts, PCB delamination, or connector pin bending.
2. Contact & Edge Connector Cleaning: Micro-cleansing multi-pin ribbon cable headers and card edge fingers to ensure low-resistance signal transfer.
3. Power Rail Bench Check: Applying clean DC bench supplies to verify onboard power distribution rails and relay driver logic.
4. Speed Input Simulation: Injecting high-frequency pulse signals (2 Hz to 20 kHz) to confirm speed conditioning accuracy and relay dropout response.
5. Anti-Static Packaging: Sealed inside thick static-shielding ESD bags with fresh desiccant packages before protective foam encapsulation.

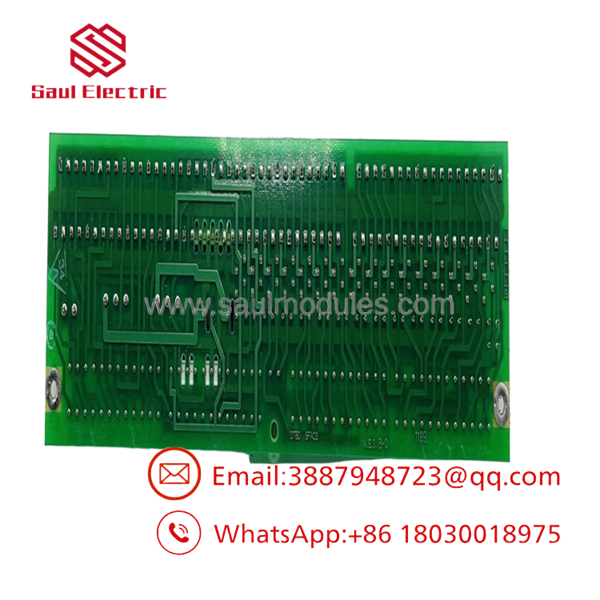

DS200TCEBG1AAB

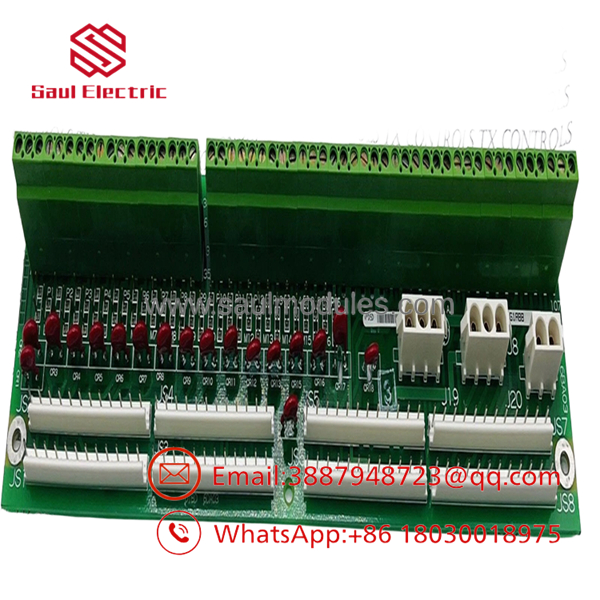

DS200TCEBG1AAB

7. The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ DO NOT REMOVE UNDER POWER: The TCEB board is wired directly into the turbine master trip loop. Pulling or inserting this board while the system is live will break continuity in the trip string, causing an immediate, ungraceful turbine trip.
• ❗ MATCH ALL HARDWARE JUMPERS EXACTLY: The DS200TCEBG1AAB features several configurable hardware shorting jumpers that dictate speed sensor thresholds and relay output configurations. Record and duplicate all jumper settings pin-for-pin from your old card.
• ⚠️ Verify Cable Seating in the <P> Core: Multi-pin ribbon cables connect the TCEB board to adjacent protective cards (such as the TPTC/TCQA). Ensure all cable latches are fully engaged—loose ribbon connectors can cause false open-circuit trip alarms.
• ❗ ESD ESD Protection: Always wear a grounded wrist strap when handling the module to protect onboard logic ICs from static discharge damage.

8. Frequently Asked Questions (FAQ for Conversion)

Q: What is the primary function of the DS200TCEBG1AAB board?

A: It serves as the main Emergency Trip Board in the Mark V protective core, handling speed signal conditioning and driving trip outputs to shutdown solenoids.

Q: Does replacing this board require software flashing or configuration downloads?

A: No. The DS200TCEBG1AAB is a hardwired protective interface card. System behavior is governed by physical jumper positions and controller settings.

Q: Where is the TCEB board located inside the Mark V cabinet?

A: It is typically housed inside the protective <P> core chassis rather than the primary <R>, <S>, or <T> control cores.

Q: Why source surplus Mark V cards instead of upgrading the entire turbine control system?

A: Replacing a single protective board takes less than an hour during a maintenance window, avoiding the massive capital cost and weeks of downtime required for a full system migration.

Q: What warranty coverage is provided with this module?

A: Every unit includes a full 12-month replacement warranty from the delivery date, covering input channel accuracy, relay actuation, and trace continuity.
