Description
Product Introduction
The GE DS3800DFXD11B1B is a legacy Digital Frequency Board (DFXD) engineered specifically for GE Speedtronic Mark IV gas and steam turbine control systems. Positioned within the main control or protective processor racks, this card acts as the primary hardware interface for processing high-speed pulse inputs generated by magnetic pickup sensors mounted on the turbine rotor shaft.
Unlike general-purpose digital input modules that read static contact closures, the DFXD card isolates high-frequency AC pulse trains, cleans up signal noise, and converts raw frequency streams into standardized digital values. These values are streamed directly across the Mark IV backplane bus to execute real-time speed governing, acceleration rate monitoring, and overspeed trip evaluations.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control |
| Board Functional Acronym | DFXD (Digital Frequency Board) |
| Input Signal Compatibility | Passive & Active Magnetic Speed Pickups (Pulse-Frequency Inputs) |
| Signal Processing | Hardware-level frequency-to-digital conversion & pulse shaping |
| Backplane Connector | Multi-pin edge connectors for Mark IV backplane rack insertion |
| Hardware Configuration | Physical BERG jumper blocks for gain tuning & frequency range selection |
| Diagnostic Indicators | Onboard status LEDs for power rail monitoring and channel active indication |
| Board Generation / Prefix | DS3800 Series (Classic Mark IV modular PCB layout) |
| Form Factor | Full-sized Mark IV rack-mount circuit card (~28 cm x 21 cm) |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 3:45 AM during a critical grid-synchronization sequence on a legacy Frame 7E gas turbine. As the unit accelerates past 3,000 RPM, the Mark IV control panel suddenly drops the turbine offline on an “Erratic Speed Feedback / Loss of Sensing” trip. The plant instrumentation team swaps the magnetic speed pickups on the shaft, but the tachometer feedback on the operator screen continues to jump erratically by several hundred RPM. The root cause is a thermal breakdown of the input optocouplers and filtering capacitors on the aging DFXD card inside the rack. Dropping in a fully bench-tested DS3800DFXD11B1B replacement stabilizes the pulse conditioning circuit, restores clean RPM tracking, and allows the plant to re-sync before the morning peak dispatch.
Industrial Applications
- Gas Turbine Speed Governing: Conditioning magnetic pickup feedback for closed-loop speed and acceleration control on GE Frame 5, 6, and 7 turbines.
- Steam Turbine Overspeed Protection: Providing independent digital frequency conversion for mechanical and electrical trip logic in utility power plants.
- Heavy Industrial Drive Speed Feedback: Monitoring shaft speed inputs in large legacy GE drive systems used in steel mills and paper plants.
- Flow Transducer Processing: Reading high-frequency pulse output meters for fuel gas and liquid fuel mass flow calculations.

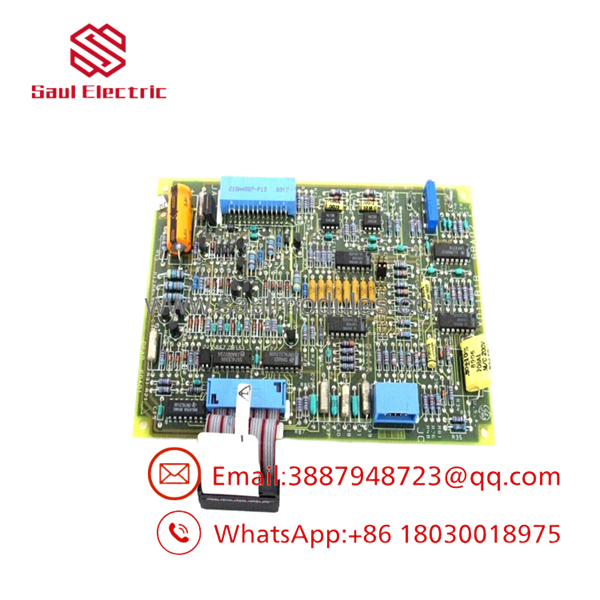

DS3800DFXD11B1B

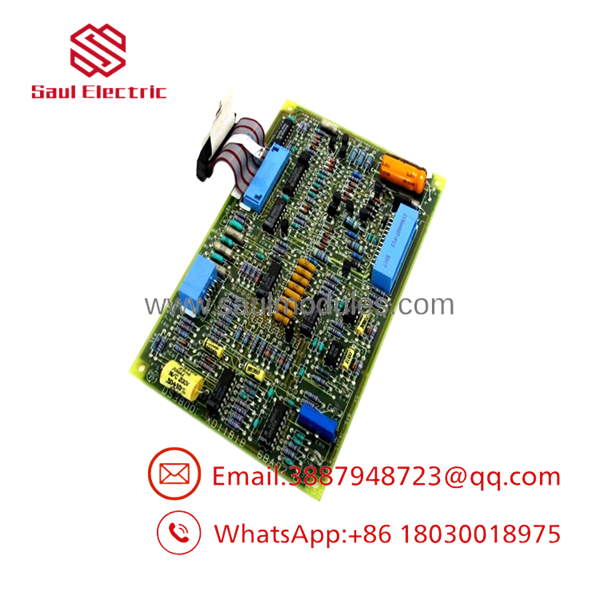

DS3800DFXD11B1B
Transparency SOP: Quality Assurance & Testing
We don’t just pull legacy boards out of a warehouse box and throw them into a crate; we validate them on live GE Mark IV test fixtures.
- Inbound Physical Inspection: Complete visual audit under magnification. Inspection for trace corrosion, solder mask discoloration, aged electrolytic capacitors, and edge-connector plating wear.
- Anti-Static ESD Cleaning: Ultrasonic bath cleaning to remove decades of accumulated industrial dust, carbon residue, and airborne oil haze.
- Benchtop Signal Generator Calibration: Injecting precise frequency sweep signals (0–20 kHz) across every input channel to verify frequency tracking linearity and signal threshold sensitivity.
- Live Mark IV Rack Testing: Board installation into a live Speedtronic Mark IV test chassis. Verification of backplane bus communication, boot diagnostics, and power rail stability.
- Thermal Cycle Burn-In: Running the card under load in a heated environment to verify zero frequency drift or thermal breakdown on active onboard ICs.
- Jumper Verification & ESD Packaging: Documenting default jumper layouts before sealing the board in a static-shielding vacuum package.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. The Sensitivity Jumper Trap (BERGs)
The DS3800DFXD11B1B uses physical BERG jumpers to set input threshold sensitivity for magnetic pickup sensors. If your replacement board came out of a panel that used active (powered) sensors and your turbine uses passive pickups, the card won’t detect the low-amplitude voltage AC pulses during initial turbine cranking. The system will report zero RPM and abort the start sequence.
Fix: Take a photo of every jumper block on the failed card before pulling it, and match the jumper settings on the new DS3800 board precisely.
❗ 2. Inspecting the Edge Connectors
Because Mark IV panels use card-edge connectors exposed to years of ambient plant vibration, the gold plating on the card connector tabs can wear thin or oxidize. Slide a pencil eraser gently over the edge connector pads on the replacement card to clean off oxidation before plugging it into the backplane.
Fix: Never use abrasive pads or emery cloth on card edges—you will strip the thin gold flashing and cause intermittent backplane faults down the road.
⚠️ 3. Revision Suffix Matching (11B1B)
The trailing revision code (11B1B) reflects specific artwork modifications and component substitutions introduced during the Mark IV production lifecycle. Installing an older revision (like an 10A variant) in place of a 11B1B can result in minor pinout shifts or altered frequency filtration characteristics.
Fix: Always verify that the exact full part number matches your site’s physical card or drawings.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3800DFXD11B1B card while the Mark IV system is powered up?
A: No. Pulling any DS3800 series board live from a Mark IV rack can cause backplane voltage spikes, corrupt active memory loops, or cause an immediate turbine trip. Always shut down control power to the rack enclosure before removing or inserting cards.
Q: What is the main difference between a Mark IV DS3800 card and a Mark V DS200 card?
A: The DS3800 series belongs to the earlier Speedtronic Mark IV architecture, utilizing larger full-frame circuit boards with discrete components and edge card connectors. The DS200 series was engineered for the subsequent Mark V platform, featuring higher-density surface-mount components, 50-pin ribbon cable interfaces, and digital software-configured bus structures.
Q: What does the ’11B1B’ suffix at the end of the part number mean?
A: In GE legacy nomenclature, the 11 designates the specific artwork group, while B1B represents sequential factory engineering revisions. These revisions typically resolved noise susceptibility issues or incorporated upgraded passive components.
Q: Why does my Mark IV panel register a frequency mismatch alarm immediately after replacing this card?
A: This is almost always caused by misaligned BERG jumpers on the input channels, or poor contact on the backplane edge connector. Re-verify that all jumper headers match your original card layout and ensure the card is seated completely flush in the rack slots.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3800DFXD11B1B board shipped carries a full 12-month replacement warranty. If a board fails under normal operating conditions within one year of installation, we replace it immediately from our inventory.
