GE DS3800DFXD1B1B Speedtronic Mark IV Digital Board

Description

Product Introduction

The GE DS3800DFXD1B1B is a dedicated digital auxiliary board engineered for legacy General Electric Speedtronic Mark IV turbine management systems. Slotted directly into the core processor card cage, this module handles high-speed digital logic signals, pulse-frequency signal processing, and discrete bus communications between the primary control processor and peripheral field interfaces.

To be honest, the Mark IV architecture relies heavily on these board-level hardware logic paths to offload repetitive frequency calculations and discrete state monitoring from the main processors. The DS3800DFXD1B1B uses discrete logic ICs and calibrated timing circuits to ensure deterministic response times, protecting your turbine from signal latency during rapid load swings or grid disturbances.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In our field experience, maintaining 1980s-era Mark IV control systems presents unique challenges—especially when component aging causes subtle timing drifts. Picture a peak-demand summer afternoon at an aging peaking facility. As Gas Turbine #3 ramps up, the controller logs erratic speed feedback alarms and refuses to sync to the grid. The problem isn’t a bad sensor in the field; it is a degraded electrolytic capacitor on an aging digital board altering the frequency threshold timing.

• Legacy Power Generation – GE Frame 5 & Frame 7M Gas Turbines – Manages digital pulse processing and discrete control logic within Mark IV racks.
• Pipeline Pumping Stations – Gas Turbine Compressor Drives – Processes discrete permissive interlocks and high-speed digital state feedback.
• Industrial Cogeneration Units – Steam & Gas Turbine Sets – Provides stable logic execution for auxiliary protective trip inputs.

During a forced outage at a remote compressor station, an old DFX board suffered a gate IC failure after a lightning-induced power spike. The unit dropped offline, stalling natural gas transport line pressure. We dispatched a pre-tested DS3800DFXD1B1B card from our surplus inventory via priority air freight. The plant instrument technician swapped the card in 15 minutes, verified status LED handshakes on the rack, and restored full compressor operations before line pressure dropped below operational limits.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV racks.

1. Inbound Visual Inspection: Microscopic audit checking for trace oxidation, cold solder joints, bulged capacitors, and edge-connector plating wear.
2. Backplane Connector Integrity: Gold-finger edge contacts are cleaned and micro-tested for plating depth and low contact resistance.
3. Signal Generator Bench Test: Frequency generators feed simulated speed/frequency pulse trains into the card to verify precise logic state transitions.
4. Live Card Cage Thermal Soak: Installed in a live Mark IV rack simulator running at elevated operating temperatures to capture intermittent thermal faults.
5. Anti-Static Sealing: Vacuum-sealed in ESD protective bags with fresh moisture absorbent and encased in custom-cut foam packaging.

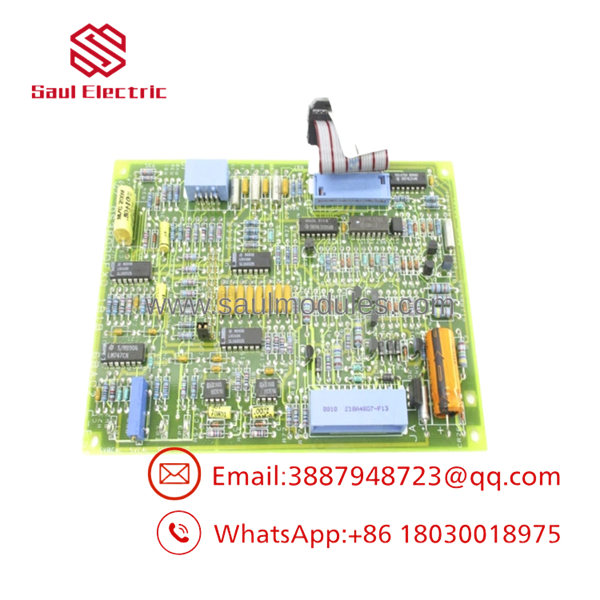

DS3800DFXD1B1B

The Veteran’s Tech Trap Guide

• ⚠️ Clean the Edge Connector First: Legacy Mark IV card cages accumulate dust over decades. Before sliding the new DS3800DFXD1B1B into the slot, clean the backplane edge connector pins with isopropyl alcohol and a lint-free swab. Dirty edge pins account for half of all “failed” replacement board calls.
• ❗ Never Hot-Swap Mark IV Cards: Mark IV card cage backplanes do NOT support hot-swapping. Inserting or pulling this card while the 24VDC/5VDC bus is live will arc the edge connector fingers and can destroy driver logic gates across the entire rack. Always de-energize the cage.
• ⚠️ Match Onboard Jumpers and Dip Switches: The DS3800DFXD1B1B features hardware jumpers and micro-switches used to address the board on the bus and set timing constants. Inspect every jumper position on your old card and match them exactly on the replacement card before installation.
• ❗ Handle ESD-Sensitive ICs with Care: This generation of logic board lacks modern internal ESD suppression diodes. Always wear a grounded wrist strap when handling the card—a small static discharge can unnoticeably ruin a logic gate array.

Frequently Asked Questions

• Q: Is the GE DS3800DFXD1B1B hot-swappable?
  • A: No. Attempting to pull or insert this card into an energized Mark IV rack will cause bus fault crashes and can permanently damage the backplane edge connectors.
• Q: What is the difference between DS3800 and DS200 part numbers?
  • A: “DS3800” designates the Speedtronic Mark IV platform generation, whereas “DS200” designates the subsequent Speedtronic Mark V series. They belong to entirely different hardware families and are not physically or electrically interchangeable.
• Q: What does the “D1B1B” revision suffix indicate?
  • A: “D1” indicates the functional artwork revision group, while “B1B” tracks sequential factory hardware and component updates made during GE’s manufacturing lifecycle.
• Q: Do I need to reload software or PROM chips when replacing this card?
  • A: Generally no, as long as you match the jumper configurations and hardware revisions from your original board. However, always verify that socketed PROMs (if transferred from your old board) are seated firmly and orientated correctly.
• Q: What warranty coverage comes with this module?
  • A: We back all New Surplus and Refurbished GE Mark IV inventory with a full 12-month replacement warranty.
• Q: Why source surplus Mark IV boards instead of upgrading to a new PLC system?
  • A: A full control system migration costs hundreds of thousands of dollars and weeks of planned downtime. Sourcing tested surplus hardware allows you to extend the operational life of your existing turbomachinery with zero cabinet re-wiring or logic reprogramming.
