GE DS3800DGRC1B1C Control Board

Description

Product Introduction & Engineering Value

The GE DS3800DGRC1B1C is a legacy DS3800-series printed circuit board used in GE industrial control equipment. Because DS3800 boards were produced in numerous configurations, the complete designation—not simply the DS3800DGRC family—should be used when sourcing a replacement.

For maintenance teams, the value is primarily about restoring an existing control assembly without changing the surrounding architecture. Before installation, compare the board number, revision markings, connectors, jumpers, and application documentation with the failed unit.

Technical Specifications

Technical caution: Publicly accessible aftermarket references do not provide enough authoritative information to assign exact voltage ratings, I/O counts, signal ranges, communication protocols, or connector pinouts to DS3800DGRC1B1C. Those parameters should be verified against the original GE documentation for the specific equipment.

Field Application & the “Trench” Experience

A legacy DS3800 installation can create an uncomfortable maintenance decision: the control system is old, documentation may be incomplete, and one PCB has suddenly become the limiting factor for production.

Picture a planned outage where a technician identifies DS3800DGRC1B1C on the failed board. A visually similar DS3800 board is available in stores, but the technician does not install it simply because the mounting holes and connectors appear compatible. Instead, the complete part number and board markings are compared first. The replacement is then checked for configuration hardware and physical condition before controlled testing.

That is the right approach with legacy electronics. Similarity is not equivalence.

Niche application scenarios

• Legacy GE industrial control cabinets: replacement of a failed DS3800 circuit board while retaining the existing control architecture.
• Plant equipment scheduled outages: maintaining an exact-match spare for equipment where an obsolete PCB can extend downtime.
• Older GE control-system refurbishment: supporting existing electronics while a longer-term migration strategy is evaluated.

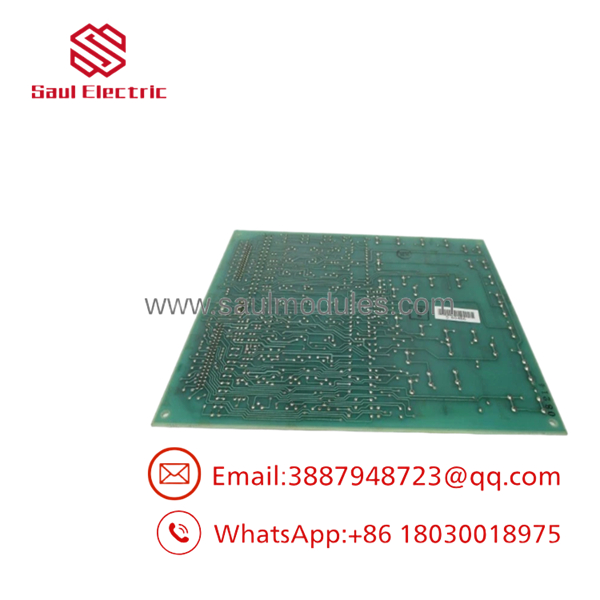

DS3800DGRC1B1C

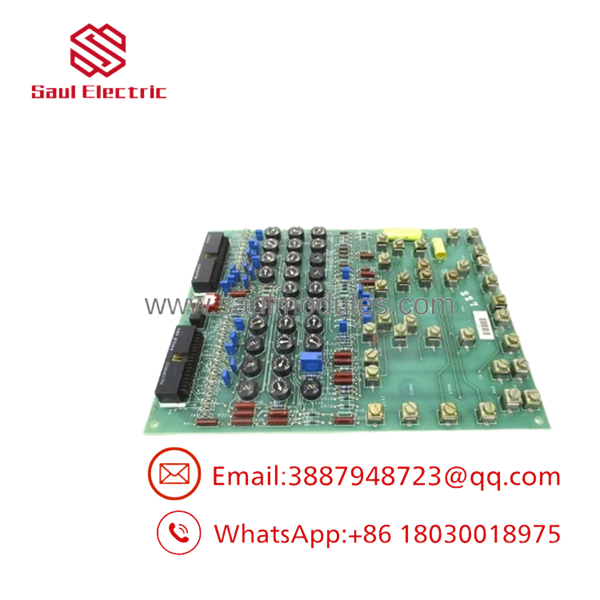

DS3800DGRC1B1C

Transparency SOP: QA & Testing

A sensible QA process for a DS3800DGRC1B1C should proceed in stages:

1. Part-number verification — Confirm DS3800DGRC1B1C and all available board/revision markings.
2. PCB inspection — Examine traces, solder joints, components, connectors, mounting hardware, and evidence of corrosion.
3. Configuration inspection — Record jumper, switch, or configuration positions if present.
4. Electrical screening — Check for obvious shorts, damaged components, abnormal resistance paths, and signs of overheating.
5. Functional testing — Where a compatible GE test platform is available, verify the board under controlled operating conditions.
6. QA record — Document test status, physical condition, serial information when available, and warranty coverage.

For New Surplus inventory, the supplier should clearly state whether the actual board is unused and whether it has subsequently been electrically tested.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not stop at “DS3800DGRC.”
The final configuration 1B1C is part of the identification. Always match the complete designation.

⚠️ Trap #2 — Do not assume a newer revision is automatically compatible.
Legacy GE boards can have hardware and configuration differences that are not obvious from the PCB layout. Confirm compatibility before installing a different revision.

PRO TIP: Photograph the original board from several angles before removal. Capture the complete label, jumper positions, connectors, component markings, and any handwritten maintenance annotations.

⚠️ Trap #3 — Avoid powering an unverified board in a critical cabinet.
If the board’s electrical function is not documented, use the applicable GE drawings and controlled test procedures rather than experimenting on an operating system.

Dynamic FAQ

What is the GE DS3800DGRC1B1C?

The is a GE DS3800-series industrial control printed circuit board identified by the complete part number.

What equipment does it fit?

It is associated with legacy GE industrial control equipment. Exact equipment compatibility should be established from the original board documentation, cabinet drawings, or equipment model rather than from the DS3800 family designation alone.

Is DS3800DGRC1B1C interchangeable with another DS3800DGRC board?

Not automatically. Verify the complete part number, configuration, revision, connectors, and electrical characteristics before substitution.

What should I provide when requesting a replacement?

Provide the complete number and photographs of the actual board label. Equipment model, original revision, and application information can further reduce the risk of receiving an incorrect configuration.

How can I verify New Surplus condition?

Ask for photographs of the actual inventory unit and confirmation of whether it has ever been installed, repaired, modified, or electrically tested. The seller should also define exactly what “New Surplus” means in its warranty documentation.

What warranty should I request?

For a critical legacy control spare, confirm the warranty duration, DOA policy, return conditions, and test status before purchasing. Warranty terms vary significantly between New Surplus, Refurbished, and Used inventory.
