Description
Product Introduction & Engineering Value
The GE DS3800HADA1A1A is a legacy DS3800-series circuit board used in GE industrial control equipment. With older control hardware, the part number is the starting point for compatibility—not the appearance of the PCB. The complete HADA1A1 designation should be retained when purchasing a replacement.
For maintenance teams keeping aging GE equipment operational, the practical value of an original replacement board is avoiding unnecessary cabinet modifications. Verify the installed board, connectors, hardware configuration, and host equipment before installation.
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: DS3800HADA1A1A
- Product Family: DS3800
- Board Designation: HADA
- Product Type: Industrial control PCB
- Hardware Configuration: A1A1
- System Category: Legacy GE industrial control
- Installation: Compatible GE control cabinet or equipment assembly
- Application: Industrial automation and control equipment
- Replacement Strategy: Exact part-number matching
- Lifecycle: Legacy / secondary-market support
- Configuration Dependency: Host equipment and system architecture
Engineering note: Individual DS3800 variants can have significantly different electrical functions. Public documentation is not always sufficient to establish exact voltage, I/O count, terminal assignment, connector pinout, or communication specifications for every suffix. Those parameters should be verified against GE documentation and the actual installed board.
Field Application & the “Trench” Experience
A maintenance technician receives an alarm from an older GE control cabinet during a scheduled plant shutdown. The suspected board is identified as DS3800HADA1A1A, but the spare room contains several DS3800 boards with similar dimensions.
Instead of selecting the closest-looking PCB, the technician compares the complete part number, board markings, connector arrangement, and cabinet documentation. The correct replacement is then inspected before installation. After the board swap, the affected equipment is checked under the plant’s normal commissioning procedure.
That is the difference between a controlled legacy repair and a parts-swapping exercise.
Practical application scenarios:
- Legacy GE machine-control cabinet maintenance during planned shutdowns.
- Process equipment refurbishment where the existing DS3800 architecture remains in service.
- Long-term spare inventory programs for plants supporting obsolete GE control hardware.
Transparency SOP: QA & Testing
For DS3800HADA1A1A New Surplus or Refurbished stock, use a documented inspection sequence:
- Identification: Confirm the full GE part number and all visible board markings.
- PCB inspection: Examine connectors, components, solder joints, traces, mounting points, and edge contacts.
- Condition check: Look for corrosion, contamination, moisture damage, discoloration, cracked components, and signs of previous repair.
- Configuration review: Compare the replacement’s physical configuration with the customer’s existing board.
- Functional testing: Perform appropriate testing when compatible GE test equipment and procedures are available.
- Traceability: Record photographs, inspection results, test status, and stock condition.
For New Surplus, ask whether the board has ever been installed or energized. For Refurbished, request the actual refurbishment and testing scope rather than accepting a generic “tested” description.

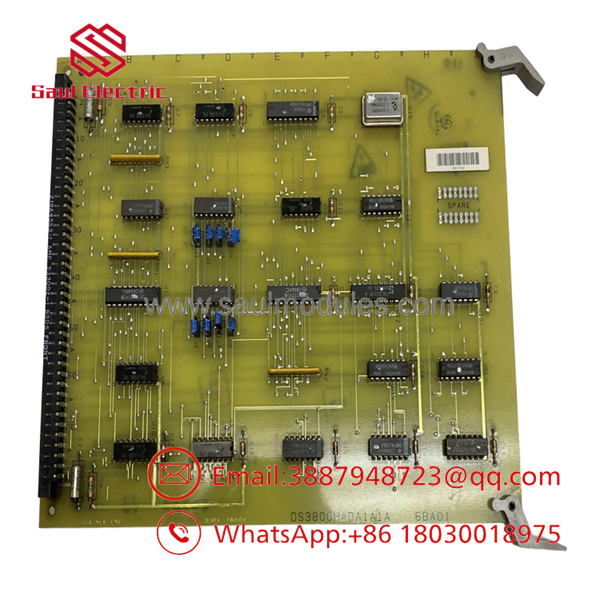

DS3800HADA1A1A
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — DS3800 family matching is not sufficient.
The DS3800 family contains numerous board types. A visually similar board can have entirely different circuitry.
⚠️ Trap #2 — Preserve the complete suffix.
DS3800HADA1A1A should be recorded exactly as marked. Dropping the A1A1 configuration from a purchasing request creates unnecessary compatibility risk.
⚠️ Trap #3 — Don’t assume old drawings show the current cabinet.
Decades of maintenance can result in field modifications. Photograph the actual board, connectors, and wiring before removal.
PRO TIP: Record the board identification and physical configuration in your spare-parts database. For obsolete equipment, those photographs can be more useful during an emergency repair than a generic catalog description.
Dynamic FAQ
Q: What is the GE DS3800HADA1A1A?
A: It is a legacy GE DS3800-series industrial control board, identified by the HADA board designation and A1A1 configuration.
Q: What system does it belong to?
A: It belongs to GE’s DS3800 family of legacy industrial control hardware. The exact host equipment and board function should be confirmed from the installed system documentation.
Q: Can another HADA board be used as a replacement?
A: Not automatically. The complete part number, hardware configuration, connector arrangement, and system requirements should be compared before substitution.
Q: What information should I provide when sourcing this board?
A: Provide , clear photographs of the board label and PCB, any revision markings, connector details, and the equipment in which the board is installed.
Q: What should a supplier disclose about New Surplus stock?
A: The supplier should confirm whether the unit is unused, whether it has ever been installed or energized, its physical condition, and what inspection or testing was performed.
Q: Is there a warranty for the DS3800HADA1A1A?
A: Warranty terms depend on the supplier and stock condition. Confirm the warranty period, test coverage, DOA policy, and return conditions before purchase.
