GE DS3800HCIA1B1B Mark IV Current Input Board

Description

Product Introduction

The GE DS3800HCIA1B1B is a high-speed current interface board designed specifically for GE Speedtronic Mark IV turbine control racks and drive systems. It acts as a rugged signal-conditioning gateway between field-mounted current transformers (CTs) or transducers and the panel’s central processing logic. By translating raw analog currents into scaled, low-noise internal feedback, the card guarantees precise real-time monitoring across power and excitation circuits.

Engineers depend on the HCIA module because it offloads direct high-power sensing lines from fragile processor cards. Operating with dedicated onboard scaling network resistors and high-isolation amplifiers, it protects internal system buses from current spikes and ground loop noise. That hardware boundary ensures stable governor control and dependable generator load-sharing without risk to the core control rack.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 2:45 AM during peak heat, and a utility’s steam turbine drops off the grid due to a false “Generator Stator Phase Imbalance” fault. The plant electrician checks the CT outputs—they are perfectly balanced. The problem isn’t the generator; it’s an aging current interface board whose internal isolation amplifier drifted under high cabinet ambient temps, skewing Channel B’s feedback signal. Every hour the unit sits idle burns through generation revenue. Swapping in a clean, bench-verified DS3800HCIA1B1B card clears the phantom fault instantly and allows a clean synchronizer tie-in before morning demand ramps up.

• Combined-Cycle Power Plants – GE Frame 6/7/9 Gas Turbines – Precise conditioning of CT feedback signals for generator load regulation.
• Paper Mills & Refineries – Steam Turbine Co-generation – Monitoring current feedback loops in islanded power generation systems.
• Industrial Drive Systems – Large Synchronous Motor Controls – Providing fast-response current loop feedback to firing circuits.

Field Case Study

A chemical manufacturing plant experienced random trip warnings on its primary gas turbine generator set whenever local ambient temperatures inside the control house spiked. Diagnostic logs showed brief, millisecond-long current spikes on the excitation feedback loop. We dispatched a fully tested DS3800HCIA1B1B replacement board within 6 hours. The field tech verified the DIP switch settings, swapped the board into slot 4, and permanently eliminated the noise-induced trips—saving an estimated $110,000 in unscheduled batch dump costs.

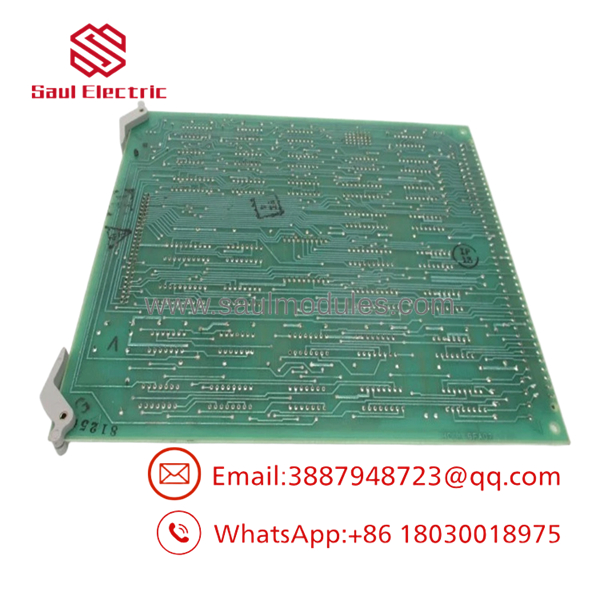

DS3800HCIA1B1B

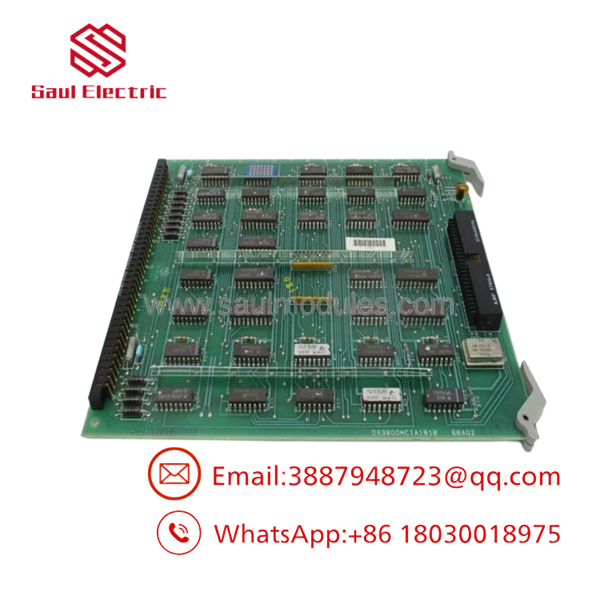

DS3800HCIA1B1B

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV test racks. Here is our exact internal verification workflow before any DS3800HCIA1B1B leaves our warehouse:

1. Inbound Visual Inspection: Check gold edge fingers for scratches, inspect ceramic isolation components for micro-cracks, and confirm intact OEM batch labels.
2. Cold Impedance Audit: Measure resistance across power rail inputs and signal channels to confirm no short circuits exist before powering up.
3. Power-On Self-Test (POST): Mount the card in a live Mark IV rack chassis to verify logic power draw and bus handshake stability.
4. Current Signal Sweep: Inject calibrated 0–5A AC and 4–20mA DC current inputs across all feedback channels using a high-precision signal calibrator. Confirm linear output scaling to within ±0.2%.
5. Revision Level Verification: Log exact revision codes (1B1B) on the final quality sign-off document.
6. ESD Packaging: Enclose inside anti-static shielding bags with fresh desiccant packs before custom foam boxing.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Match DIP Switches and Jumper Pins EXACTLY!

The DS3800HCIA1B1B utilizes onboard DIP switches and hardware pin jumpers to set current input gain factors and filter time constants. Placing a replacement card with “factory default” switch settings into a live rack can cause incorrect current feedback calculations, leading to immediate over-current trips upon startup. Take a photo of the original board’s switch banks before pulling it!

❗ 2. Clean the Edge Connector Slots

Legacy Mark IV racks use card-edge motherboards that collect dust over decades of service. When replacing an HCIA board, inspect the card cage backplane connector. Clean the backplane contacts with an approved non-residue electrical contact cleaner before sliding in the new card. Dirty edge contacts cause intermittent signal dropout that looks like a failing board.

⚠️ 3. Always Disconnect External CT Loops Before Removal

Never pull an HCIA card while current transformers are actively energized without verifying that the external CT secondary circuits are shorted! Opening an active current transformer secondary loop produces dangerous high-voltage transients that can destroy equipment and create severe arc-flash risks.

Frequently Asked Questions (FAQ for Conversion)

A: No. Removing this card while the control rack is energized interrupts active current feedback loops, which will immediately trip the turbine’s trip-solenoid circuit or trigger a major system fault lockout. Always execute full LOTO procedures before replacement.

Q: What does the “1B1B” suffix mean?

A: In GE Mark IV nomenclature, 1B1B represents the specific artwork and component assembly revision level. The first 1B denotes the PCB layout revision, while the second 1B indicates the specific installed component bill of materials.

Q: Can this board handle both AC and DC current feedback inputs?

A: Yes, depending on the specific channel configuration and jumper selection. The HCIA family supports both AC current transformer (CT) secondary inputs and DC transducer signal inputs.

Q: Is this unit new or refurbished, and what warranty covers it?

A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.

Q: Why buy surplus instead of ordering directly from GE?

A: Legacy Mark IV components are long discontinued by the OEM. Sourcing New Surplus from our stock avoids multi-month factory lead times, eliminates exorbitant expediting fees, and provides immediate drop-in replacements for active plants.
