GE DS3800HDRC Speedtronic Mark IV / Drive Control Board

Description

Product Introduction

The GE DS3800HDRC is a legacy Relay Driver and Control Board engineered for GE Speedtronic Mark IV turbine control cabinets and early-generation DC2000 drive lineups. Positioned within the card rack, this board serves as an intermediary driver layer between low-voltage digital logic processors and heavy-duty electromechanical relays, contactors, or solenoid valves out in the plant.

Designed with robust noise-rejection isolation, the HDRC board protects sensitive system microprocessors from the severe inductive kickback and voltage spikes generated when switching large field relay coils. Onboard status LEDs allow technicians to trace discrete output calls directly at the rack level without needing to tap into terminal strips under power.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 3:30 AM on a freezing night. A paper mill’s main section drive trips out on a sudden interlock failure, halting the entire line. The operator console shows a “Solenoid Coil Fail” alarm, but physical checks on the field solenoid show the coil is in working order. Troubleshooting the rack leads straight to an old DS3800HDRC card: an output switching transistor shorted out from years of thermal cycling, dropping the driver channel low. When a relay driver card fails, simple output commands turn into phantom outages.

• Legacy Power Plants – Speedtronic Mark IV Gas/Steam Turbine Panels – Drives trip solenoids, fuel bypass valves, and auxiliary lube pump starters.
• Paper & Steel Mills – GE DC2000 Heavy Drive Systems – Controls main line contactor energization sequences and brake interlocks.
• Chemical Processing Facilities – Industrial Process Racks – Buffers discrete interlock signals between central logic and motor control centers (MCC).

Field Case Study: A municipal water station lost remote pump control when an output driver channel on an aging DS3800HDRC card failed open. The local tech swapped the degraded card with a bench-tested surplus unit in under 30 minutes. The board picked up relay commands immediately, restoring full remote SCADA control and preventing a wet-well overflow.

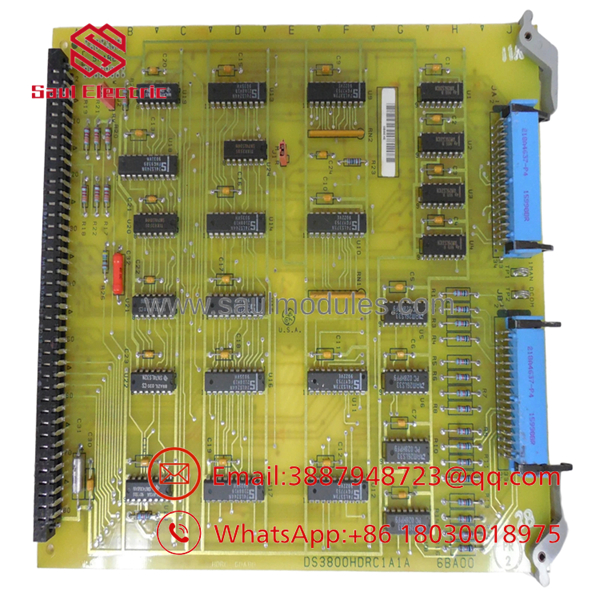

DS3800HDRC

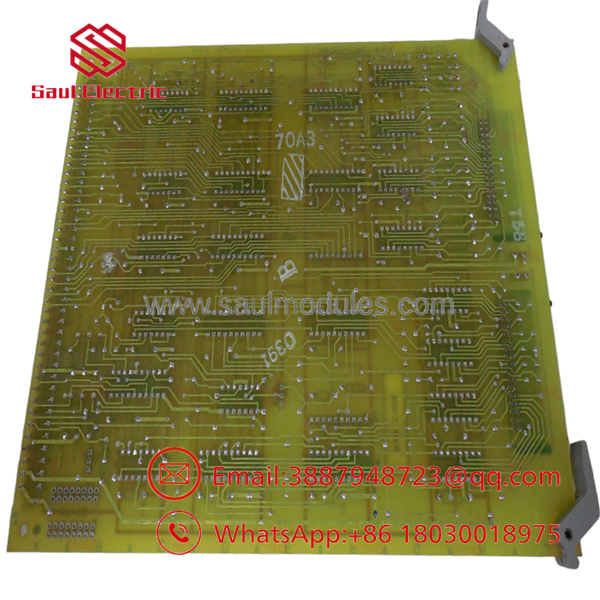

DS3800HDRC

Transparency SOP: Quality Assurance & Testing

We understand that pulling an old board off a shelf without thorough testing is a recipe for a 2 AM callback. Every DS3800HDRC undergoes a strict 5-step bench test before shipping:

1. Inbound Visual Inspection: High-magnification check for burned output traces, cracked resistor packs, dry solder joints, and edge connector corrosion.
2. Dielectric & Short Isolation Checks: Resistance checks across driver outputs and ground rails to rule out internal silicon punch-through.
3. Live Mark IV / DC2000 Rig Testing: Installed into a powered test rack to confirm edge-connector fit, bus handshakes, and logic power startup.
4. Output Load Stress Test: Dynamic firing of all relay driver channels into a dummy inductive load panel to verify switching timing and LED indicator function over 12 hours.
5. Anti-Static Packaging: Cleaned, fitted with protective edge covers, vacuum-sealed in an ESD shielding bag, and packed in reinforced foam.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Handle Edge Connectors with Care: The gold-plated edge fingers on the DS3800HDRC board oxidation over decades of cabinet service. Before seating a replacement, clean the rack backplane slot and inspect the edge fingers. Never use abrasive sanders—use a lint-free swab with contact cleaner to avoid stripping the plating.

❗ 2. Check Jumper Pin Settings: Depending on the specific system revision (Mark IV vs DC2000), jumper blocks on this board adjust signal polarity and coil suppression options. Take a clear photograph of your old card’s jumpers and match them pin-for-pin on the new unit before powering up the rack.

⚠️ 3. Inspect Flyback Diodes on Field Coils: If an output channel on your old HDRC card blew out, check the flyback diode across the field relay coil before plugging in the new card! A shorted flywheel diode in the field will instantly fry the driver transistor on your fresh replacement board the second it fires.

❗ 4. Never Pull Under Load: This board carries driver lines for real-world field devices. Removing it while the system is live can generate inductive spikes that destroy adjacent logic cards and cause uncontrolled dropping of field relays. Always lock out cabinet power first.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE hot-swappable?

A: No. Hot-swapping the will cause unexpected dropping or latching of field relays and can damage backplane bus pins. Always power down the card rack before removal or installation.

Q: What is the difference between and DS3800HDRC1A?

A: The “1A” or “1B” suffix represents subtle manufacturing artwork updates and component revisions implemented by GE over time. In almost all applications, a DS3800HDRC1A is a direct form-fit-function replacement for older base revisions, provided jumper settings match.

Q: Are these boards brand new from General Electric?

A: General Electric discontinued the DS3800 series decades ago. Our inventory consists of clean New Surplus (unused OEM spares) and Refurbished / Bench-Tested cards reclaimed from decommissioned facilities.

Q: What warranty coverage do you offer on these legacy boards?

A: All units come backed by our full 12-month operational warranty. If the board develops any hardware fault within one year of installation, we will send an immediate advance replacement or issue a full credit.

Q: How do I know the driver channels are fully functional before installation?

A: Every unit shipped includes a Quality Control sign-off report confirming that all output driver channels were dynamically load-tested on our specialized bench rig.
