GE DS3800HLSD1A1A Mark IV Control Board

Description

Product Introduction & Engineering Value

The DS3800HLSD1A1A is legacy turbine-control electronics from the Mark IV generation. These boards are now primarily encountered in long-running turbine installations where maintaining the existing control architecture is preferable to an immediate controls migration.

The practical issue is identification. DS3800 boards can share similar mechanical construction and connector layouts while serving different control functions. For a replacement, verify the complete DS3800HLSD1A1A number and the installed system location before approving the spare.

Technical Specifications

Engineering note

Publicly available information for the exact DS3800HLSD1A1A configuration is limited. I would not publish unverified channel counts, voltage ratings, processor specifications, communication protocols, or I/O capacity as fixed product specifications.

For procurement, the physical PCB markings, cabinet slot/location, associated wiring, and Mark IV documentation should be used to establish the exact application.

Field Application & the “Trench” Experience

A plant running an older gas turbine has a control-board fault during a planned maintenance window. The board is no longer supported through normal OEM channels, and the maintenance team needs to keep the existing Mark IV cabinet operational.

The engineer removes the original board only after photographing its component side, connector locations, board identification, and cabinet position. The spare DS3800HLSD1A1A is then compared against the original before power is restored.

With Mark IV equipment, that discipline matters. These are mature control systems, and undocumented modifications accumulated over decades can make a generic catalog description less useful than the actual board and cabinet records.

Specific application scenarios:

• Legacy gas-turbine Mark IV control cabinets
• Steam-turbine auxiliary control systems
• Mark IV I/O and interface-board replacement
• Long-life turbine control-system maintenance
• Obsolescence management for DS3800 electronics

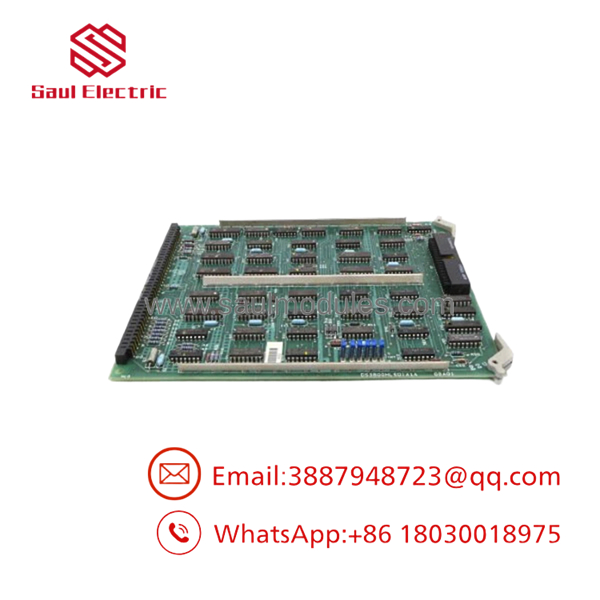

DS3800HLSD1A1A

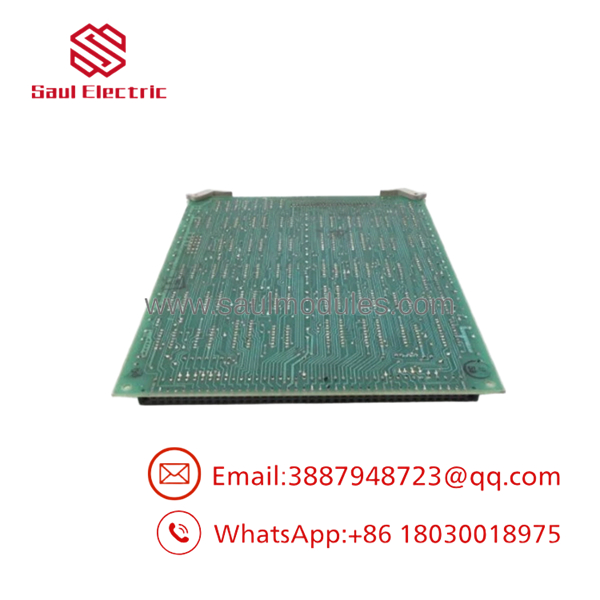

DS3800HLSD1A1A

Transparency SOP: QA & Testing

For DS3800HLSD1A1A, inspection should be tailored to the customer’s Mark IV application.

1. Part-number verification — Confirm the complete DS3800HLSD1A1A marking.
2. Visual inspection — Examine the PCB, ICs, capacitors, resistors, connectors, solder joints, and traces.
3. Component condition — Look for corrosion, heat discoloration, cracked components, and aging capacitors.
4. Connector inspection — Check contacts for oxidation and mechanical damage.
5. Circuit testing — Perform continuity and component-level checks where applicable.
6. Functional testing — Use a compatible Mark IV test setup or approved application-specific procedure.
7. System integration — Verify board operation with the actual cabinet interface before returning the turbine to service.
8. Documentation — Record revision, serial/part number, photographs, test results, and material condition.

For New Surplus, confirm that the actual PCB has never been installed or energized. For Refurbished, request the actual repair and test scope.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Don’t assume a DS3800 board is interchangeable because it fits.
Mechanical compatibility does not establish electrical or functional compatibility.

⚠️ Trap #2 — Mark IV documentation is part of the spare.
For obsolete boards, the cabinet slot, wiring drawings, terminal references, and system documentation can be essential to confirming what the PCB actually does.

⚠️ Trap #3 — Watch for aging components.
A board can pass a basic visual inspection and still contain degraded electrolytic capacitors, oxidized contacts, or marginal components after decades in service.

PRO TIP: When purchasing this type of legacy PCB, require photographs of the actual board, including both sides and the complete part-number label. Do not rely on a generic DS3800 product photograph.

Dynamic FAQ

Q: What is the GE DS3800HLSD1A1A?
A: It is a GE DS3800-series Mark IV Speedtronic control/interface board identified by the HLSD functional designation.

Q: Is DS3800HLSD1A1A a Mark V board?
A: No. The DS3800 family is associated with the earlier Mark IV Speedtronic generation.

Q: Can another DS3800 board replace it?
A: Not based on mechanical fit alone. Verify the complete part number, revision, cabinet position, wiring, and application-specific documentation.

Q: What should be checked before installing a replacement?
A: Record the original board’s part number and revision, photograph connector wiring, confirm the cabinet slot, inspect the associated power supply and I/O path, and compare the replacement PCB before energization.

Q: How should New Surplus authenticity be verified?
A: Request actual-unit photographs, complete DS3800HLSD1A1A markings, confirmation that the board has never been installed or energized, and any available original packaging or traceability.

Q: What should I request for Refurbished stock and warranty?
A: Request the refurbishment scope, component/connector inspection, functional-test procedure, actual-unit photographs, serial/part-number traceability, and written warranty/DOA terms. For a decades-old Mark IV board, “visually good” is not a functional test.
