GE DS3800HMPH1B1A Speedtronic Mark IV Microprocessor Board

Description

Product Introduction

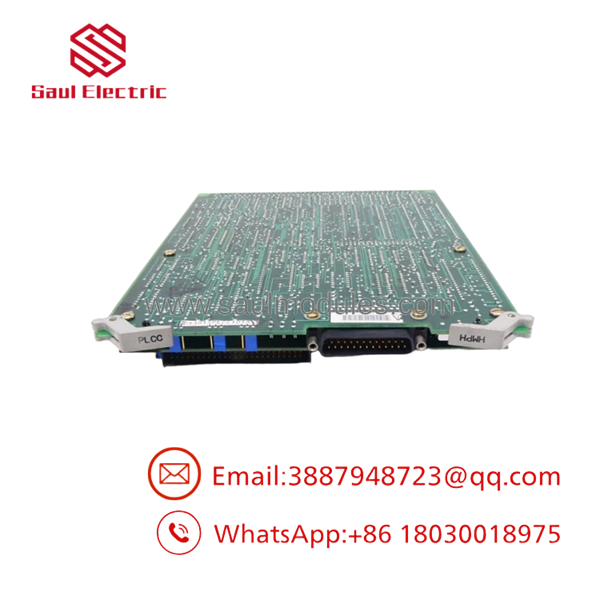

The GE DS3800HMPH1B1A serves as a central Microprocessor Board (HMPH) within legacy GE Speedtronic Mark IV gas/steam turbine control architectures and heavy-duty industrial drive systems. Situated within the primary control card cage, the HMPH module executes main operational algorithms, real-time control logic, and system bus communication.

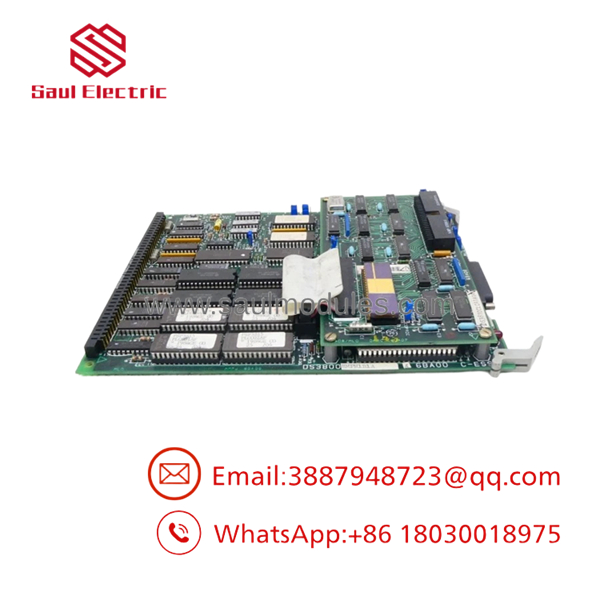

Featuring socketed EPROM memory locations, clock generation circuitry, and multi-pin bus connectors, the DS3800HMPH1B1A manages real-time processing duties. It coordinates input processing and control calculations while passing data across backplane buses to I/O expansion, communication, and gate-drive boards.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During a turbine startup sequence, a central processor execution fault causes a watchdog timeout on a primary Mark IV control core, freezing the governor output. Diagnostic checks identify corrupted bus communications stemming from onboard memory bus degradation on the main processing card. Technicians isolate rack power, unseat the faulty board using the card extraction tabs, and install a bench-verified DS3800HMPH1B1A module. After transferring the socketed system firmware PROMs and setting all hardware jumpers, the core boots cleanly—allowing the turbine to finish its ramp to full speed.

• Mark IV Turbine Core Execution – Real-time Control Calculations – Handles governor routines, temperature matching, and fuel valve output commands.
• Large AC/DC Drive Systems – System Bus Master – Coordinates speed, torque, and current loop targets with downstream signal conditioning cards.
• Legacy System Upgrades – Direct Board-Level Swap – Keeps established Mark IV control cabinets operational without costly system-wide retrofits.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on live GE Mark IV test benches.

1. Visual & Structural Audit: Substrate inspection for cracked solder joints, socket oxidation, trace corrosion, and pin alignment.
2. Contact & Edge Cleaning: Micro-polishing gold card edge fingers and ribbon pin headers to guarantee low-resistance backplane contact.
3. Power Rail Bench Verification: Supplying clean DC power to test onboard voltage regulation, clock pulse generation, and logic gates.
4. Firmware & Bus Testing: Loading test EPROMs into onboard sockets to verify processor boot performance, memory access, and backplane bus communication.
5. Anti-Static ESD Packaging: Encapsulated in heavy-duty static-shielding ESD bags with fresh desiccant prior to protective foam packaging.

DS3800HMPH1B1A

DS3800HMPH1B1A

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ TRANSFER YOUR SYSTEM EPROMs: The HMPH board relies on socketed EPROM/EEPROM chips containing application software and turbine-specific site parameters. You MUST carefully transfer your original socketed memory chips to the replacement board using an ESD-safe extraction tool.
• ❗ DO NOT SWAP UNDER POWER: Removing or inserting the microprocessor card while the backplane is energized can destroy sensitive logic ICs and cause bus errors on adjacent cards.
• ⚠️ MATCH ALL JUMPERS EXACTLY: The board contains hardware shorting jumpers that dictate system memory addressing and clock settings. Verify every jumper position pin-for-pin against your original card before restoring power.
• ❗ USE FULL ESD PROTECTION: Static electricity will easily destroy high-density processor and RAM ICs. Ground yourself using a wrist strap whenever handling the board.

Frequently Asked Questions (FAQ for Conversion)

Q: What does the HMPH acronym stand for in GE part numbers?

A: HMPH stands for High-Level Microprocessor Board (or Microprocessor Processor Module) within the DS3800 system nomenclature.

Q: Is the DS3800HMPH1B1A interchangeable with other DS3800HMPH revision levels?

A: Higher functional revisions (e.g., 1B1A) are typically backward-compatible with earlier versions, provided all socketed PROMs and jumper configurations are transferred correctly.

Q: Does replacing this card require downloading software from a laptop?

A: No. System operating code and site configuration are stored directly on the socketed EPROMs. Transferring the original chips to the replacement card transfers all necessary software.

Q: What is the standard warranty on this module?

A: Every unit comes with a full 12-month replacement warranty covering processor execution, bus communication, and memory access logic.
