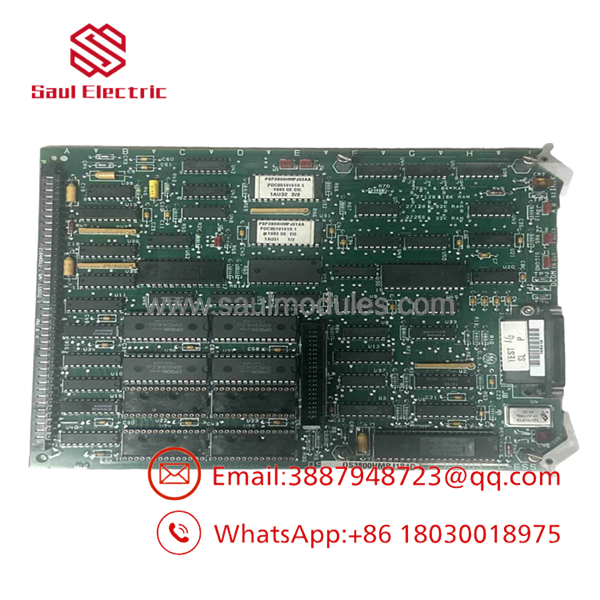

GE DS3800HMPJ1B1D Speedtronic Mark IV Microprocessor Memory Board

Description

Product Introduction

The GE DS3800HMPJ1B1D is a central Microprocessor and Memory Board (HMPJ) designed for GE Speedtronic Mark IV turbine control cabinets and industrial drive processor cages. Functioning as a primary computational module within the control core, this card executes complex real-time governing algorithms, sequence logic, and system diagnostics required to keep heavy industrial turbomachinery stable.

Unlike secondary I/O conditioning boards that process localized analog or digital signals, the HMPJ board acts as a central processing hub. It integrates an onboard microprocessor, high-speed RAM buffers for volatile math execution, and an array of socketed UV-EPROMs holding the core executive code. It coordinates bidirectional data traffic across the Mark IV backplane, driving output cards based on continuous inputs from field sensors.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

The Trench Story

It’s 2:00 AM at an offshore oil platform. Gas Turbine Generator #2 suffers an unexpected controller crash, freezing the HMI and illuminating the dreaded “CPU HALT” LED on the Mark IV rack. The platform’s microgrid is forced onto emergency diesel power while instrument techs scramble to diagnose the failure. The culprit is a failed SRAM chip on the aging HMPJ processor board caused by decades of cabinet ambient heat and salt air exposure. Swapping in a pre-tested DS3800HMPJ1B1D replacement board and transferring the site’s original socketed EPROMs gets the Mark IV core to boot cleanly, restoring the main turbine generator to service in under an hour.

Industrial Applications

• Gas Turbine Governing: Running closed-loop speed, temperature, and acceleration calculations on GE Frame 5, 6, and 7 gas turbines.
• Steam Turbine Utility Control: Executing valve positioning, steam chest pressure regulation, and trip interlock logic in utility power plants.
• Heavy Industrial System Drives: Coordinating high-speed torque and speed regulator loops in steel mill and paper plant motor drives.
• Sequence-of-Events (SOE) Processing: Timestamping and logging alarm states across local control cores for diagnostic reporting.

DS3800HMPJ1B1D

Transparency SOP: Quality Assurance & Testing

We don’t just pull legacy boards out of a warehouse box and throw them into a crate; we validate them on live GE Mark IV test racks.

1. Inbound Physical Inspection: Complete visual audit under magnification. Inspection for trace corrosion, IC socket pin fatigue, gold edge-connector tab wear, and aged capacitors.
2. Anti-Static ESD Cleaning: Ultrasonic solvent bath to remove accumulated industrial dust, carbon film, and airborne chemical residue.
3. Memory Bus & Socket Continuity Checks: Testing every socketed IC pin for continuity, bent contacts, and proper retention force across memory banks.
4. Live Mark IV Rack Execution Test: Board installation into a live Speedtronic Mark IV processor rack. Verification of CPU boot sequence, clock timing, and clean backplane bus handshaking.
5. Thermal Chamber Burn-In: Running continuous memory read/write cycles and instruction stress tests at elevated temperatures to verify zero thermal drift or logic lockups.
6. Jumper Audit & ESD Packaging: Documenting all factory BERG jumper positions before vacuum-sealing the board in anti-static ESD shielding.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. The Socketed EPROM Transfer (Crucial Step)

The DS3800HMPJ1B1D contains socketed UV-EPROM chips that store your plant’s specific site configuration, turbine constants, and software logic. Replacing this board without moving your original EPROMs over will leave the processor with blank or mismatched code, causing a permanent CPU HALT or boot failure.

Fix: Use an IC chip extractor tool to carefully remove the original EPROMs from your failed board and transfer them to the replacement card. Ensure the notch on each IC chip aligns with the notch on the socket—installing an EPROM backward will fry the chip upon power-up.

❗ 2. Memory Addressing BERG Jumpers

The board features multiple BERG jumper blocks that set memory address mapping, bus timing, and chip enable lines. If the replacement card came from a system with a different memory sizing configuration, the CPU will fail to address its onboard RAM.

Fix: Photograph every jumper block on the original card before removal and match all jumper positions on the replacement board line-for-line.

⚠️ 3. Edge Connector Cleaning (Gold Tab Protection)

Legacy Mark IV racks rely on card-edge connectors exposed to years of ambient plant air. Oxidation on the gold connector tabs can cause intermittent bus read errors that look like a CPU crash.

Fix: Gently wipe the card edge contacts with a clean pencil eraser or isopropyl alcohol swab before seating the board into the rack. Never use abrasive pads like Scotch-Brite, as they strip the gold plating.

Frequently Asked Questions (FAQ)

Q: Can I hot-swap the DS3800HMPJ1B1D card while the Mark IV rack is powered on?

A: No. Pulling a main processor board live from a backplane bus will corrupt active system memory, generate severe bus faults, and instantly trip the turbine system. Always de-energize the rack power supply before removing or inserting the card.

Q: What is the primary difference between a Mark IV HMPJ card and a Mark V CPU card?

A: The HMPJ (DS3800 series) belongs to the Mark IV architecture, utilizing a full-size PCB with discrete memory sockets, DIP jumpers, and card-edge backplane contacts. Mark V cards (DS200 series) use surface-mount components, software-configured bus logic, and multi-pin ribbon connectors.

Q: What does the ‘1B1D’ suffix at the end of the part number mean?

A: In GE legacy part numbering, the 1B designates the specific artwork/circuit group, while 1D represents late-stage engineering revisions. The 1B1D revision incorporates updated bus transceiver logic and upgraded IC sockets to reduce chip seating failures over long thermal cycles.

Q: Why does the CPU HALT LED remain illuminated after installing a replacement board?

A: A solid HALT LED usually indicates one of three things: missing or improperly seated EPROMs, incorrect memory addressing jumpers, or a poor connection on the card-edge backplane bus. Double-check EPROM chip orientation and re-seat the card firmly into the rack guide rails.

Q: What warranty is supplied with your surplus and refurbished stock?

A: Every DS3800HMPJ1B1D board shipped carries a full 12-month replacement warranty. If a board fails under normal operating conditions within one year of installation, we replace it immediately from our inventory.
