GE DS3800HPBC1A1B Parallel Line Buffer Board

Description

Product Introduction

The GE DS3800HPBC1A1B serves as a Parallel Line Buffer Board (HPBC) within the legacy GE Speedtronic Mark IV turbine control system. Positioned within the main rack architecture, its primary role is to manage, synchronize, and buffer parallel data transmission between primary processing modules and peripheral subsystem boards.

By using Transistor-to-Transistor Logic (TTL) buffer stages, the HPBC1A1B prevents data corruption, voltage sags, and propagation delays across internal bus lines. This hardwired buffering keeps high-speed command signals and sensor telemetry moving reliably across processing nodes without overloading the primary backplane.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

A combined-cycle facility experiences intermittent bus synchronization faults during a hot restart on a heavy-duty frame turbine. Diagnostic codes report lost parallel communications between the control processor and downstream sub-controllers, causing execution pauses. Troubleshooting reveals a degraded TTL buffer IC on the original HPBC card caused by cumulative thermal stress. Swapping in a fully bench-tested DS3800HPBC1A1B board restores crisp logic transitions on the bus, allowing the plant to hit its scheduled dispatch window.

• Gas & Steam Turbine Control – Inter-Rack Communication – Buffers high-speed parallel data streams passed between core processor racks and auxiliary logic cards.
• Speedtronic Mark IV Systems – Subsystem Synchronization – Synchronizes timing signals coming from multi-channel sensor arrays before processing.
• Heavy Industrial Process Automation – Logic Signal Isolation – Isolates internal TTL control circuits against high-frequency electrical noise and bus transients.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV test rigs.

1. Inbound Visual Inspection: Microscopic trace audit checking for thermal damage, cold solder joints, cracked IC bodies, and clean connector contact fingers.
2. Connector & Lever Mechanical Inspection: Verifying retention levers are intact and that female/male pin contacts show no corrosion or mechanical deformation.
3. Power Rail Bench Check: Applying clean regulated DC supply lines to verify local TTL voltage levels and LED indicator operation.
4. Parallel Line Logic & Buffer Testing: Injecting high-frequency parallel pulse trains through the buffer channels to verify signal propagation, rise/fall times, and zero bit-drop performance.
5. Anti-Static Packaging: Sealed in static-shielding ESD bags with fresh desiccant prior to protective foam boxing.

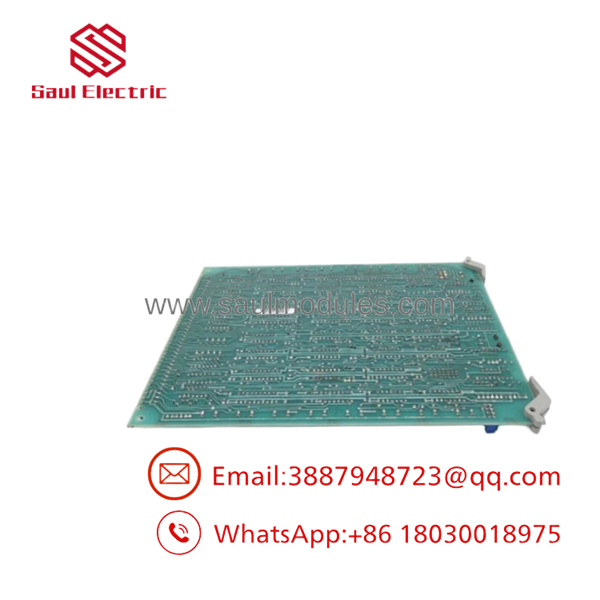

DS3800HPBC1A1B

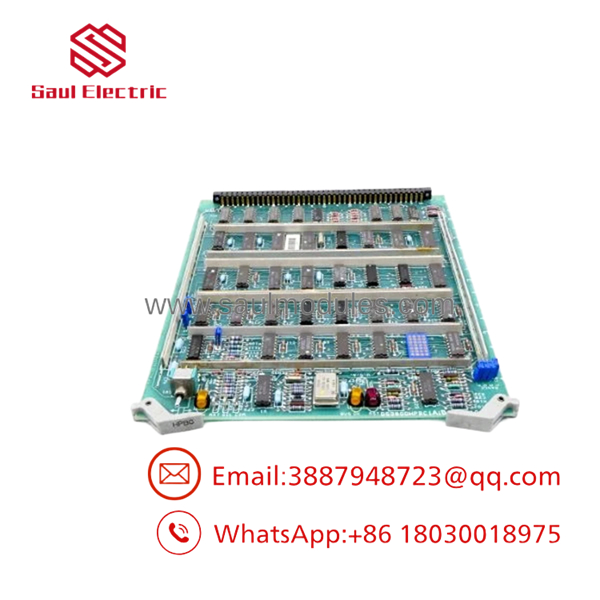

DS3800HPBC1A1B

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ MIND THE 3 ONBOARD JUMPERS: The DS3800HPBC1A1B features 3 hardware jumpers that configure logic paths and bus options. Take a clear, sharp photo of the jumper positions on your failed card before removing it and mirror them pin-for-pin on the replacement card.
• ❗ Never Force the Retention Levers: The white plastic retention levers lock the board securely into the rack frame. If the card binds during insertion, stop. Forcing the levers down on a misaligned card will snap the handles or crush backplane pin contacts.
• ⚠️ Revision Letter Matching (1A1A vs 1A1B): The 1A1B suffix indicates an artwork and component update over original 1A1A baseline boards. While 1A1B is typically backward compatible, verify jumper configurations against your cabinet wiring diagram.
• ❗ ESD Sensitivity Warning: TTL logic gates on legacy buffer boards are vulnerable to static discharge. Always wear a grounded ESD wrist strap and handle the card by its metal faceplate or outer fiberglass edges.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE DS3800HPBC1A1B board hot-swappable in a running Mark IV system?

A: No. Pulling a parallel line buffer card while the backplane is live will interrupt parallel data lines, likely tripping adjacent processor cards and causing an immediate turbine shutdown. Always de-energize the rack segment first.

Q: What do the front-panel LEDs indicate on the board?

A: The board includes 1 red LED used to indicate a fault or power anomaly, along with 2 amber LEDs that signal active parallel line communication and operational status.

Q: Does this card require any firmware flashing or software downloading?

A: No. The DS3800HPBC1A1B is a pure hardware buffer board operating on discrete TTL logic gates and hardware jumpers. It requires zero software flashing or laptop downloads upon installation.

Q: Why choose new surplus or tested reconditioned Mark IV cards over a full migration?

A: Migrating from Speedtronic Mark IV to modern platforms like Mark VIe involves significant capital expenditure, engineering costs, and weeks of outage time. Swapping an HPBC card takes minutes and costs a small fraction of a migration project.

Q: What warranty coverage is included with this module?

A: Every unit comes backed by a full 12-month replacement warranty from the date of shipment, covering all buffer channels, logic functions, and hardware integrity.
