Product Introduction
The GE DS3800HPTN1G1G is a power supply and conditioning board (HPTN) engineered for GE Speedtronic Mark IV turbine control panels and high-horsepower drive cabinets. Positioned directly in the power supply cage or main control rack, this card acts as an internal power distribution hub, transforming incoming bus voltages into regulated DC power levels required by digital logic and analog acquisition cards.
Unlike delicate logic boards processing microamp signals, the HPTN card is built for heavy electrical lifting. Equipped with onboard step-down transformers, toroidal filter chokes, power transistors, and ceramic wire-wound resistors, it suppresses line noise, conditions incoming AC/DC power, and feeds steady voltage rails across the backplane to shield sensitive microprocessor boards from plant voltage swings.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control & System Drives |
| Board Functional Acronym | HPTN (High Power Transformer Network Board) |
| Power Conversion Architecture | Onboard step-down transformers & linear voltage regulators |
| Input Voltage Feeds | 115 VAC / 230 VAC auxiliary lines or 125 VDC station battery bus |
| Output Voltage Rails | Regulated +5 VDC, +15 VDC, -15 VDC, and +24 VDC rails |
| Noise Suppression | Toroidal inductor chokes and high-voltage filter capacitors |
| Backplane Connection | Multi-pin gold edge connectors & heavy-duty screw terminals |
| Hardware Configuration | Physical BERG jumpers for primary voltage tap selection |
| Board Generation / Prefix | DS3800 Series (Classic heavy-duty industrial PCB architecture) |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 4:15 AM on a hot summer night. A peaker plant’s Frame 6B gas turbine trips offline during ramping due to a sudden “Logic Power Bus Low” fault across all three Mark IV control cores. The instrumentation team isolates the issue to the HPTN power distribution card—decades of continuous heat exposure degraded the electrolytic filtering capacitors, causing a ripple voltage on the 15V rail that triggered widespread sensor fault alarms. With grid operators demanding generation capacity, the team pulls a pre-tested DS3800HPTN1G1G board from emergency inventory, matches the voltage tap jumpers, and inserts the card. Clean power returns to the rack, clearing all system faults on the first boot cycle.
Industrial Applications
- Gas Turbine Power Regulation: Conditioning local cabinet power feeds on GE Frame 5, 6, and 7 gas turbine control systems.
- Steam Turbine Auxiliary Panels: Supplying clean DC power rails for valve position monitoring and temperature acquisition cards.
- Heavy Industrial System Drives: Filtering high-voltage noise spikes in large DC motor drives and static excitation enclosures.
- Generator Control Cabinets: Providing isolated power distribution for synchronization and voltage regulation loops.

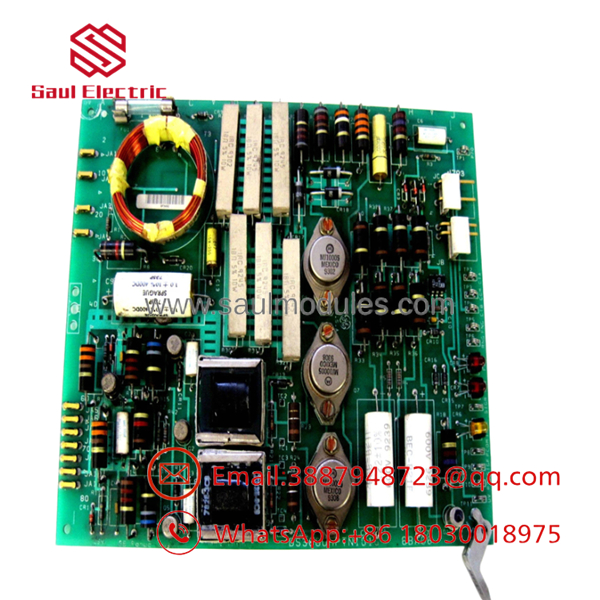

DS3800HPTN1G1G
Transparency SOP: Quality Assurance & Testing
We don’t just pull legacy boards out of a warehouse box and throw them into a crate; we validate them under full electrical load on live Mark IV test fixtures.
- Inbound Physical Inspection: Visual audit under magnification. Inspection for thermal discoloration, bulging capacitors, heat-stressed power resistors, and edge-connector wear.
- Anti-Static ESD Cleaning: Ultrasonic solvent bath to remove airborne oil residue, carbon dust, and industrial grime accumulated over years of service.
- High-Voltage Insulation Checks: Megger testing power isolation barriers to verify dielectric integrity between primary power taps and ground traces.
- Oscilloscope Voltage Ripple Testing: Powering the card under full load while monitoring output rails on an oscilloscope to ensure peak-to-peak AC noise remains well within OEM tolerances.
- Thermal Load Burn-In: Running the board under maximum rated current in a heated test enclosure to verify thermal stability of onboard power transistors and transformers.
- Jumper Audit & ESD Packaging: Logging all primary voltage tap jumper configurations before vacuum-sealing the card in static-shielding ESD packaging.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Primary Voltage Tap Jumpers
The DS3800HPTN1G1G uses physical BERG jumpers to select incoming transformer voltage taps (e.g., 115 VAC vs. 230 VAC inputs). Installing a replacement board configured for 115V into a 230V cabinet feed will instantly blow the onboard fuses and destroy the primary transformer windings.
Fix: Photograph the jumper layout on your failed card before removal, and verify every jumper position against the replacement card silk-screen diagram prior to energizing.
❗ 2. Card-Edge Connector Cleaning
Because this card carries higher current than standard logic cards, oxidation on the backplane gold tabs can create localized high-resistance hot spots that burn out connector sockets over time.
Fix: Clean the card-edge contacts with a clean pencil eraser or isopropyl alcohol swab before installation. Never use abrasive pads like Scotch-Brite, which strip the thin gold plating.
⚠️ 3. Revision Suffix Matching (1G1G)
The trailing suffix (1G1G) indicates late-generation artwork revisions, including higher-wattage power resistors and upgraded filter capacitors compared to earlier 1A or 1B variants. Installing an older revision in a late-model panel can lead to component overheating under heavy I/O loads.
Fix: Verify that the full part number matches your cabinet documentation to ensure circuit thermal parity.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3800HPTN1G1G card while the system is energized?
A: Absolutely not. Pulling a primary power conditioning card live disrupts DC power rails across adjacent logic boards, causing immediate CPU crashes, corrupted memory states, and an instant turbine trip. Always isolate control power before removing or installing this board.
Q: What is the most common failure mode on this legacy power board?
A: Over 15–20 years of continuous thermal cycles, the onboard electrolytic capacitors dry out and lose capacitance. This increases AC ripple voltage on the DC outputs, causing intermittent digital communication faults across the Mark IV backplane.
Q: Does this card require firmware or software installation?
A: No. The DS3800HPTN1G1G is a purely hardware-based power conditioning and distribution module. It contains no microprocessors or software chips and operates entirely on analog circuit design and jumper configurations.
Q: Why are my control core diagnostic LEDs flickering after replacing this card?
A: Flickering LEDs usually indicate incorrect primary voltage tap jumper settings or poor contact on the backplane edge connector. De-energize the rack, re-verify jumper configurations against your original board, and ensure the card is seated firmly into the rack guide rails.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3800HPTN1G1G board shipped carries a full 12-month replacement warranty. If a board fails under normal operating conditions within one year of installation, we replace it immediately from our stock.
