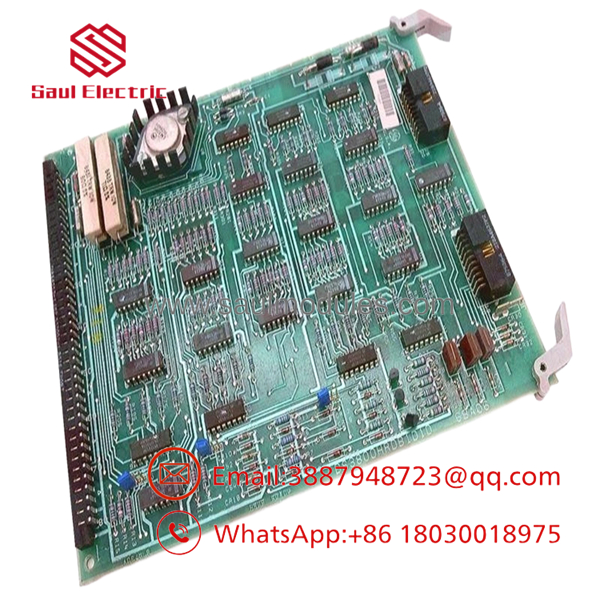

GE DS3800HRDB1D1D Speedtronic Mark IV Relay Driver Board

Description

Product Introduction

The GE DS3800HRDB1D1D is a specialized relay driver board designed for legacy General Electric Speedtronic Mark IV turbine control card cages. Operating as an interface between low-power processing logic and higher-power external devices, this board conditions discrete command signals from the main controller to drive electromechanical relays, status lamps, alarms, and intermediate contactor coils.

To be honest, the primary benefit of the DS3800HRDB1D1D is the electrical isolation it provides to the Mark IV backplane. By isolating delicate 5V DC processing logic from 24V DC or 125V DC external driver circuits, it prevents inductive voltage spikes and short-circuit faults in field wiring from traveling upstream and destroying critical central processor components.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

In our field experience, discrete relay driver boards take the brunt of electrical wear and tear in legacy plants. Picture an aging 50MW peaking steam plant trying to synchronize to the grid. The main control computer issues an isolation valve open command, but nothing happens—the valve stays shut, and the turbine aborts the start sequence. You trace the signal path back to the Mark IV card cage and discover a dead driver transistor on an aging relay driver board, burned out by a shorted field relay coil.

• Legacy Power Plants – Frame 5 and Frame 7 Gas Turbines – Drives intermediate relay coils for fuel valve permissives, trip interlocks, and remote annunciator windows.
• Petrochemical Refineries – Steam Turbine Drives – Manages discrete command outputs for auxiliary lube oil pumps, cooling fans, and trip solenoids.
• Pipeline Compression Stations – Turbomachinery Racks – Converts internal digital logic commands into isolated, field-level output states.

During a forced shutdown at a municipal utility site, a high-voltage surge on an external alarm loop destroyed three output channels on an active HRDB card. The unit was locked out due to missing status signals. We dispatched a fully tested, pre-inspected DS3800HRDB1D1D card from surplus stock via priority overnight courier. The plant’s instrument technician installed the replacement card, verified the onboard LED status indicators, and successfully restarted the turbine early the next morning.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV racks.

1. Inbound Visual Inspection: Microscopic audit for cracked solder pads, blown surge diodes, heat-stressed traces, and edge-connector wear.
2. Gold-Finger Contact Checks: Gold-plated backplane connectors are cleaned, polished, and checked for depth uniformities to guarantee reliable seating.
3. Channel Load Testing: Every driver channel is individually loaded and actuated to verify current sourcing capabilities and switching speeds.
4. Thermal Chamber Test: Board is run in a live Mark IV card cage under elevated thermal conditions to catch intermittent semiconductor breakdown.
5. ESD Protective Packaging: Cleaned and sealed in static-shielding bags with fresh desiccant prior to being packed in custom shock-absorbing foam.

DS3800HRDB1D1D

The Veteran’s Tech Trap Guide

• ⚠️ Inspect the Field Coil Before Slotting the New Board: If an output channel burned out on your old DS3800HRDB board, check the resistance of the connected field relay or solenoid coil before inserting the replacement card. A shorted coil will immediately vaporize the driver transistor on your fresh board the moment it energizes.
• ❗ Never Hot-Swap in a Mark IV Cage: The Speedtronic Mark IV backplane is not hot-swappable. Inserting or removing this board while power is applied can arc the edge connector fingers and cause supply-voltage spikes that damage surrounding cards in the rack.
• ⚠️ Match Your Hardware Jumpers: Check the replacement DS3800HRDB1D1D for shorting jumpers or dip switches used to set address lines or output logic inversion. Duplicate the exact jumper settings from the failed board onto the new board before installation.
• ❗ Clean the Rack Edge Connectors: Card cage backplanes that have sat in service for 30+ years accumulate fine dust and film. Clean the slot connectors with electrical contact cleaner and a card-cleaning pad before sliding the new board home.

Frequently Asked Questions

• Q: Is the GE DS3800HRDB1D1D hot-swappable?
  • A: No. De-energize the card cage power supplies before pulling or installing the module to avoid backplane connector damage and system fault trips.
• Q: What is the difference between DS3800 (Mark IV) and DS200 (Mark V) boards?
  • A: DS3800 parts belong to the 4th generation Speedtronic system and use edge-connector card cage slots. DS200 parts belong to the 5th generation system and use direct ribbon/standoff mounting. They are not interchangeable.
• Q: What does the “1D1D” revision code signify?
  • A: “1D” identifies the core artwork design group, while the full “1D1D” suffix tracks engineering updates and component revisions made during GE’s manufacturing run.
• Q: Do I need to program or flash firmware onto this card?
  • A: No. The DS3800HRDB1D1D is a hardwired hardware driver board. No software loading or PROM flashing is required—just verify that hardware jumpers match your original board.
• Q: What warranty comes with this surplus board?
  • A: We back all New Surplus and Refurbished GE Mark IV inventory with a full 12-month replacement warranty.
• Q: Why should we buy surplus Mark IV boards instead of retrofitting the controller?
  • A: Full DCS/PLC retrofits require substantial capital expense, engineering downtime, and complete cabinet rewiring. Purchasing tested surplus hardware lets you maintain existing, proven turbomachinery controls with zero logic reprogramming.
