Product Introduction
The GE DS3800HSCD1J1G is a High-Voltage System Control Board (HSCD) engineered specifically for GE Speedtronic Mark IV turbine control panels and legacy heavy industrial drive enclosures. Operating within the main control rack architecture, this module acts as a critical link between raw power distribution feeds and sensitive digital processing logic.
Unlike standard input/output modules that process field instruments, the HSCD board monitors incoming power feeds, executes voltage regulation, and supervises system-level fault interlocks. It conditions local DC power rails (+5V, +/-15V, +24V) while continuously evaluating power-good status signals. If an under-voltage or over-voltage condition threatens system stability, the HSCD board trips localized safety relays to prevent logic corruption across the Mark IV backplane.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control & System Drives |
| Board Functional Acronym | HSCD (High-Voltage System Control Board) |
| Power Regulation Rails | Regulated +5 VDC logic power, +/-15 VDC analog supplies, +24 VDC bus |
| Interlock Monitoring | Real-time power-good sensing, over-voltage/under-voltage trip logic |
| Backplane Connection | Dual multi-pin gold edge connectors for Mark IV card-cage slot insertion |
| Hardware Configuration | Onboard BERG jumpers for voltage threshold selection and fault latching |
| Diagnostic Indicators | Front-edge LED array (Power On, Over-Voltage Fault, Bus Fault) |
| Board Generation / Prefix | DS3800 Series (Classic full-sized Mark IV modular PCB layout) |
| Physical Dimensions | Standard Mark IV card-cage form factor (~28 cm x 21 cm) |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 3:30 AM during a thunderstorm at a municipal utility plant. Lightning strikes a nearby substation line, causing a severe line surge that propagates into the plant auxiliary power system. Gas Turbine #3 immediately trips offline with a “Control Power Bus Fault” on the Mark IV HMI. When the I&C crew opens the panel, they find the “Over-Voltage Fault” LED latched on the old HSCD board inside the rack. Age-degraded zener diodes on the card failed to recover from the voltage clamping event, locking the power-good relay in a tripped state. Swapping in a pre-tested DS3800HSCD1J1G replacement clears the fault latch, restores steady power to the rack, and allows the plant to synchronize back to the grid before morning load demands hit.
Industrial Applications
- Gas Turbine Control Panels: Regulating control power and managing power fault interlocks on GE Frame 5, 6, 7, and 9 gas turbines.
- Steam Turbine System Racks: Supervising power rail integrity and emergency trip power feeds in combined-cycle steam plants.
- Heavy System Drives: Managing gate control power and voltage fault interlocks in large GE industrial drive cabinets.
- Generator Excitation Cubicles: Conditioning auxiliary control power feeds in static excitation and voltage regulation enclosures.
Transparency SOP: Quality Assurance & Testing
We don’t just pull legacy boards out of a warehouse box and throw them into a crate; we validate them under full electrical load on live Mark IV test fixtures.
- Inbound Physical Inspection: Complete visual audit under magnification. Inspection for thermal trace discoloration, aged electrolytic capacitors, cracked solder joints around power semiconductors, and edge-connector wear.
- Anti-Static ESD Cleaning: Ultrasonic solvent bath to remove airborne carbon dust, oil haze, and industrial grime accumulated over decades of cabinet operation.
- Power Rail & Regulation Check: Testing onboard voltage regulators under full load to verify tight voltage stability, low AC ripple, and thermal regulation under load.
- Over/Under-Voltage Trip Test: Injecting precision variable DC voltages across sensing channels to verify that safety trip relays actuate within OEM timing tolerances.
- Live Mark IV Rack Execution Test: Card installation into a live Speedtronic Mark IV test rack. Verification of backplane bus communications, boot diagnostics, and power-good handshakes.
- Jumper Audit & Anti-Static Packaging: Documenting all factory BERG jumper configurations before vacuum-sealing the board in anti-static ESD shielding.

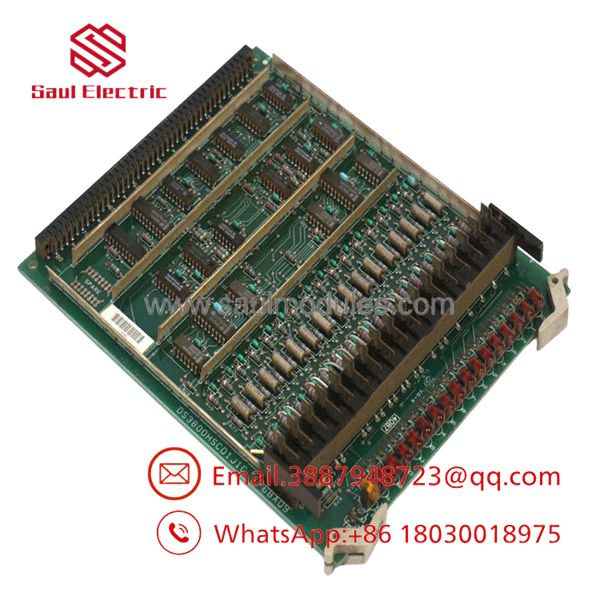

DS3800HSCD1J1G

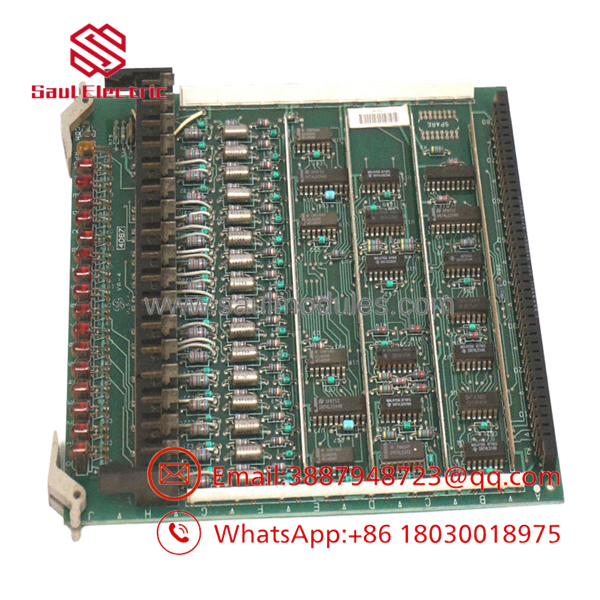

DS3800HSCD1J1G
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Voltage Threshold BERG Jumpers
The DS3800HSCD1J1G utilizes physical onboard BERG jumpers to set voltage sensing thresholds and fault latch behavior according to your cabinet’s specific power layout. If you install a replacement board with jumpers configured for a different power configuration, the card may detect a false under-voltage fault and prevent the Mark IV panel from booting entirely.
Fix: Photograph every jumper block on the old board before pulling it from the rack, and match the jumper positions on the replacement DS3800 board exactly before energizing.
❗ 2. Cleaning Card-Edge Contacts
Legacy Mark IV racks rely on gold-plated card-edge connectors exposed to ambient plant atmosphere. Oxidation or fine dust on the connector tabs can cause micro-dropouts in voltage sensing lines that look like intermittent power supply failures.
Fix: Clean the card-edge contacts with a clean pencil eraser or isopropyl alcohol swab before inserting the board. Never use abrasive pads like Scotch-Brite, which strip the thin gold plating and cause accelerated corrosion later.
⚠️ 3. Revision Suffix Matching (1J1G)
The trailing suffix (1J1G) denotes late-generation artwork revisions, including upgraded power dissipation traces and higher-wattage zener diodes compared to earlier 1A or 1B variants. Installing an earlier revision in a late-model panel can lead to component overheating under continuous heavy control loads.
Fix: Verify that the full part number matches your site’s physical card or panel drawings to ensure circuit component parity.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3800HSCD1J1G card while the Mark IV rack is powered up?
A: No. Pulling a system control power board while the panel is energized disrupts local voltage rails, which can corrupt processor memory, trigger spurious turbine trips, or damage surrounding backplane logic. Always isolate control power completely before removing or inserting cards.
Q: What is the primary difference between a Mark IV DS3800 board and a Mark V DS200 board?
A: The DS3800 series belongs to the earlier Speedtronic Mark IV architecture, utilizing larger full-frame circuit boards with discrete components, DIP/BERG jumpers, and gold card-edge backplane contacts. The DS200 series was designed for the Mark V platform, featuring high-density surface-mount components and ribbon cable bus connections.
Q: What does the ‘1J1G’ suffix at the end of the part number mean?
A: In GE legacy part numbering, the 1J designates the artwork group, while 1G represents sequential factory engineering revisions. The 1J1G revision incorporates updated noise suppression filtering and higher-tolerance voltage regulation components.
Q: Why does the Power Fault LED remain illuminated after installing a replacement board?
A: This usually indicates either mismatched BERG jumper configurations on the voltage threshold channels, an actual incoming power supply drop from the station battery/transformer, or an unseated card-edge connector in the rack. Re-verify jumper layouts against your original card and confirm incoming line voltages.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3800HSCD1J1G board shipped carries a full 12-month replacement warranty. If a board fails under normal operating conditions within one year of installation, we replace it immediately from our inventory.
