Product Introduction & Engineering Value
The GE DS3800HSQD1J1G is a legacy DS3800-series circuit board identified by the HSQD designation and J1G configuration. It belongs to a generation of GE industrial control hardware where replacement sourcing often depends on identifying the exact original board rather than selecting a nominally similar PCB.
For maintenance teams supporting aging GE equipment, the complete part number should remain intact throughout the procurement process. Before installation, compare the replacement with the original board, including identification markings, connectors, mounting points, and visible hardware configuration.
Technical Specifications
- Manufacturer: General Electric (GE)
- Part Number: DS3800HSQD1J1G
- Product Family: DS3800
- Board Designation: HSQD
- Product Type: Industrial control / interface PCB
- Configuration: J1G
- System Category: Legacy GE industrial control hardware
- Installation: Compatible GE control-system assembly
- Application: Industrial automation and equipment control
- Replacement Strategy: Exact part-number matching
- Lifecycle: Legacy / secondary-market component
- System Dependency: Dependent on the host GE control architecture
Technical caution: I would not assign exact voltage, I/O count, connector pinout, signal type, or communication specifications to the DS3800HSQD1J1G without the applicable GE documentation or an inspection of the actual board. DS3800 variants are not interchangeable merely because they share the same product family.
Field Application & the “Trench” Experience
A plant carrying an older GE control system discovers that its last spare has already been consumed after an earlier board failure. The maintenance planner locates a DS3800HSQD1J1G from secondary inventory and requests photographs before approving the purchase.
The supplier provides images of the actual PCB. The planner compares the part number and physical configuration with the failed board, then records the replacement in the site’s critical-spares database. During the next outage, the board is inspected and installed under the plant’s established ESD and commissioning procedures.
The lesson is straightforward: with obsolete electronics, traceability is part of technical compatibility.
Specific application scenarios:
- Legacy GE control cabinet maintenance during planned plant shutdowns.
- Older industrial machine-control refurbishment where the existing DS3800 platform remains operational.
- Obsolete automation spare-parts programs where exact board identification is essential.
Transparency SOP: QA & Testing
For DS3800HSQD1J1G stock, a useful QA process should document both condition and identity.
- Label verification — Confirm the complete GE part number and visible board markings.
- Physical inspection — Examine PCB surfaces, components, connectors, solder joints, traces, mounting points, and edge contacts.
- Environmental check — Look for corrosion, contamination, moisture exposure, discoloration, and overheating.
- Configuration comparison — Compare the replacement with the customer’s existing board.
- Functional testing — When appropriate GE test equipment and procedures are available, perform applicable functional tests.
- Traceability — Record photographs, condition, test status, and whether the board is New Surplus or Refurbished.
For New Surplus, confirm that the actual unit is unused and disclose whether it has ever been energized. For refurbished stock, request details of repairs and component replacement.

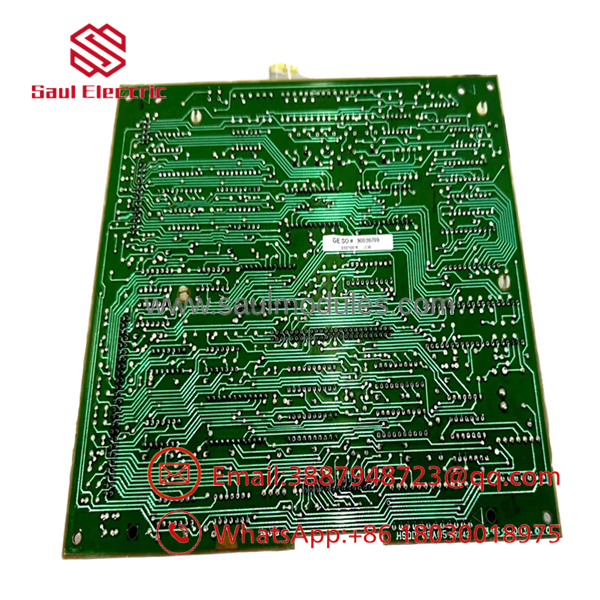

DS3800HSQD1J1G

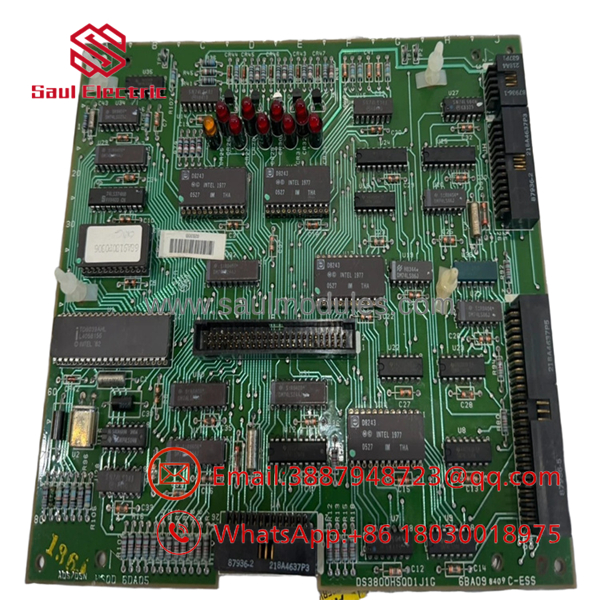

DS3800HSQD1J1G
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Don’t accept “DS3800 compatible” as a technical specification.
The family designation is far too broad. Procurement should specify DS3800HSQD1J1G.
⚠️ Trap #2 — Verify the complete configuration.
The J1G suffix should remain on the purchase request and inventory record. Shortened part numbers create ambiguity.
⚠️ Trap #3 — Photograph before removal.
Older cabinets may contain wiring changes that aren’t represented in the original GE documentation. The physical installation is your best reference.
PRO TIP: When purchasing secondary-market inventory, request photographs showing both the identification label and enough of the PCB to verify that the actual board—not a stock image—is being supplied.
Dynamic FAQ
Q: What is the GE DS3800HSQD1J1G?
A: It is a legacy GE DS3800-series industrial control board, identified by the HSQD designation and J1G configuration.
Q: What equipment is it used in?
A: It is intended for compatible GE legacy control equipment. The precise host application should be verified from the installed system documentation.
Q: Can another DS3800HSQD board be substituted?
A: Not without engineering verification. Compare the complete part number, hardware configuration, connectors, electrical function, and host-system requirements.
Q: What should I provide when requesting a quote?
A: Provide , photographs of the actual board and identification label, visible revision/configuration markings, connector details, and the equipment in which it is installed.
Q: How do I verify New Surplus authenticity?
A: Ask for photographs of the actual unit, confirmation that it is unused, information on whether it has ever been installed or energized, and the supplier’s inspection/testing details.
Q: What warranty should I request?
A: Confirm the warranty period, functional-test coverage, DOA policy, and return terms. Warranty conditions can differ substantially between New Surplus and Refurbished inventory.
