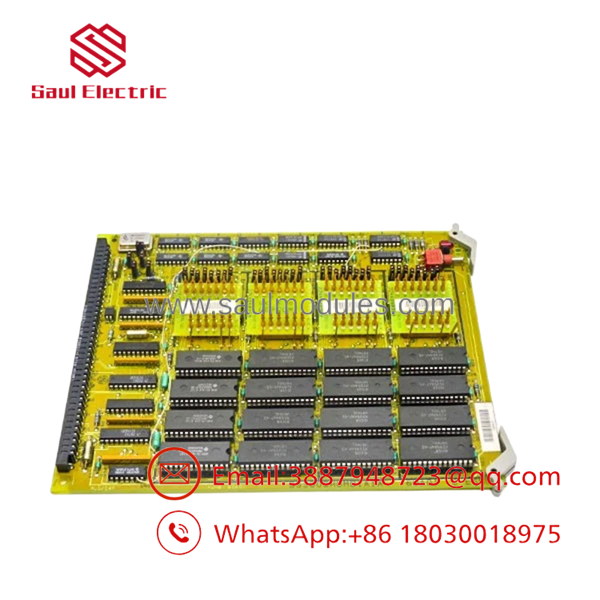

GE DS3800HUMB1A1A Speedtronic Mark IV Interface Board

Description

Product Introduction

The GE DS3800HUMB1A1A functions as an Auxiliary Interface Board (HUMB) within legacy GE Speedtronic Mark IV gas and steam turbine control systems. Installed in the primary control card cage, the HUMB module acts as a critical signal routing and interface bridge between backplane communication channels, peripheral I/O cards, and external terminal blocks.

Designed with industrial-grade substrate traces, top-mounted multi-pin ribbon headers, and gold-plated card-edge connectors, the DS3800HUMB1A1A maintains low-noise signal integrity for system telemetry, logic interlocks, and auxiliary control loops across legacy turbine control panels.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

During an unexpected alarm event on an industrial gas turbine, technicians observe intermittent loss of auxiliary contact feedback signals on the Mark IV operator panel. Signal tracing points to physical contact degradation and loose ribbon connections on an aging HUMB interface board. Technicians de-energize rack power, carefully unclip the ribbon cables, and swap out the module for a bench-tested DS3800HUMB1A1A. After matching physical jumper settings and re-engaging the cable latches, signal continuity is restored—allowing the control panel to clear all false trip warnings prior to start-up.

• Speedtronic Mark IV Control Panels – Internal Backplane Interfacing – Routes logic, telemetry, and control signals across adjacent rack cards.
• Auxiliary Signal Distribution – Contact & Sensor Interfacing – Serves as a central routing point for field switch inputs and status outputs.
• System Life Extension – Direct Card-Level Replacement – Allows operators to maintain operational reliability without replacing the entire control cabinet.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV test benches.

1. Visual & Physical Audit: Magnification check for trace fractures, solder joint fatigue, physical connector wear, and pin alignment.
2. Contact & Edge Cleaning: Micro-polishing gold edge fingers and multi-pin ribbon headers to guarantee low-resistance contact across the backplane.
3. Continuity & Circuit Testing: Checking signal pathways, isolation resistors, and onboard trace continuity across all bus channels.
4. Bench Interfacing Test: Mounting on a Mark IV test rack to verify signal routing stability, ribbon header seating, and noise-free pass-through.
5. Anti-Static ESD Packaging: Encapsulated in heavy static-shielding ESD bags with fresh desiccant packages prior to protective foam packaging.

The Veteran’s Tech Trap Guide (Crucial Value-Add)

• ⚠️ POWER DOWN THE RACK BEFORE REMOVAL: Mark IV backplane rails carry active power and logic lines. Never hot-swap the DS3800HUMB1A1A board, as inserting or pulling the card under power can cause arc damage to edge fingers or disrupt neighboring processor logic.
• ❗ VERIFY HARDWARE JUMPERS PIN-FOR-PIN: Like many DS3800-series boards, the HUMB card uses physical shorting jumpers to configure signal routing paths. Carefully duplicate every jumper position from your original card onto the replacement unit.
• ⚠️ INSPECT RIBBON CABLE LATCHES: Ribbon connectors connected to the top headers of the board can become brittle over time. Ensure ribbon connections are clean and fully seated to prevent false open-circuit faults caused by plant vibration.
• ❗ USE ESD PROTECTION: Static discharge can damage sensitive logic and signal components. Always wear a grounded ESD wrist strap when handling control modules.

DS3800HUMB1A1A

Frequently Asked Questions (FAQ for Conversion)

Q: Is the DS3800HUMB1A1A compatible with Speedtronic Mark V systems?

A: No. DS3800-series boards are built specifically for Mark IV system architecture and are not physically or electrically compatible with Mark V (DS200-series) backplanes.

Q: Does replacing a DS3800HUMB1A1A board require software loading or firmware flashing?

A: No. The HUMB card is a hardware interface module. It does not contain programmable flash memory; matching the physical hardware jumpers to your existing card is all that is required.

Q: What is the significance of the 1A1A suffix at the end of the part number?

A: The suffix designates the artwork and functional revision levels (1A artwork revision and 1A functional revision). Revision 1A1A is backward-compatible with base DS3800HUMB boards.

Q: What warranty coverage is provided with this module?

A: Every unit comes backed by a full 12-month replacement warranty from the delivery date, covering trace continuity, signal pass-through, and connector stability.
