Description
Product Introduction

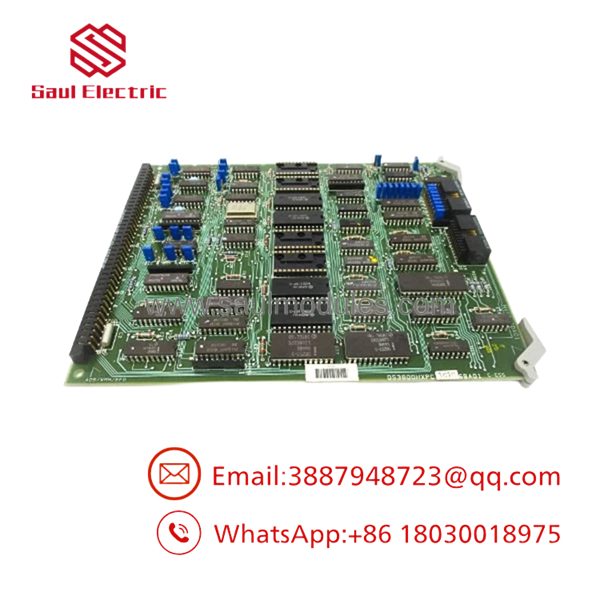

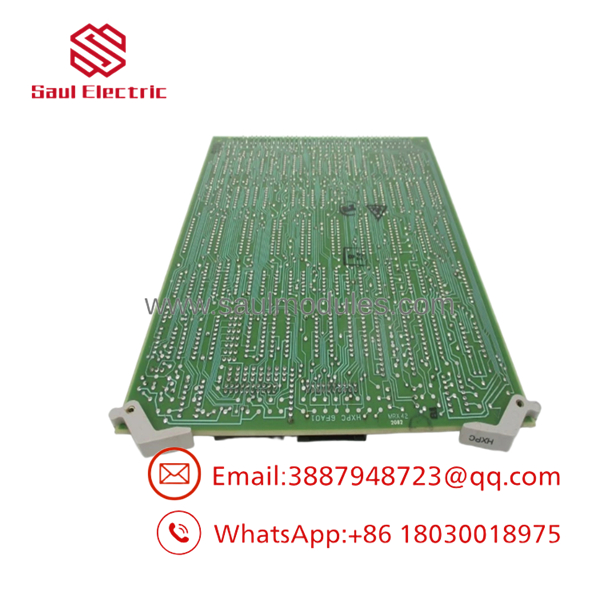

The GE DS3800HXPC1C1C serves as an Auxiliary Power Coupler Board (HXPC) within legacy GE Speedtronic Mark IV gas and steam turbine control systems. Positioned in the central control rack, the HXPC module acts as a power conditioning and bus isolation interface, ensuring smooth DC power delivery across internal processing and signal conditioning boards.
Engineered with heavy-duty power traces, smoothing filter capacitors, and onboard voltage regulators, the DS3800HXPC1C1C mitigates voltage ripple and transient surges on internal power rails. By maintaining stable, isolated power coupling between primary supplies and rack-mounted logic cards, it prevents nuisance resets and logic faults during turbine operation.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) |
| Part Number | DS3800HXPC1C1C |
| System Compatibility | Speedtronic Mark IV Turbine Control |
| Functional Acronym | HXPC (Auxiliary Power Coupler Board) |
| Board Revision | Artwork Revision 1C |
| Bus Connections | High-density gold edge fingers & top ribbon headers |
| Power Protection | Onboard decoupling capacitors, filter inductors, and fuses |
| Operating Temp | -30°C to +65°C (-22°F to +149°F) |
Application Scenarios & The “Trench” Experience
During a turbine start sequence, technicians experience intermittent brownout trips on an I/O card cage, causing a premature trip fault. Diagnostic checks across backplane power lines reveal voltage dips caused by aging electrolytic capacitors on an older HXPC power coupler board. Technicians power down the rack, unseat the original card, and insert a bench-tested DS3800HXPC1C1C. Once re-energized, power rail voltage stabilizes within a ±1% tolerance, clearing all under-voltage diagnostics and allowing the system to achieve full-speed operations.
- Mark IV Rack Power Distribution – DC Bus Conditioning – Filters and stabilizes incoming DC power before feeding backplane logic.
- Backplane Bus Isolation – Noise Suppression – Protects sensitive microprocessor boards from line-side transients and industrial noise.
- Control System Maintenance – Direct Hardware Replacement – Keeps legacy turbine control panels online without expensive full-system retrofits.
Transparency SOP: Quality Assurance & Testing
We don’t just ship boxes; we test them on actual GE Mark IV test racks.
- Visual & Structural Audit: Inspection under magnification for capacitor bulging, resistor scorch marks, PCB trace delamination, and connector wear.
- Gold Finger & Edge Cleansing: Micro-polishing edge contacts and pin headers to guarantee low-resistance power transmission across backplanes.
- Power Load & Regulation Test: Applying DC input voltages on bench rigs to verify voltage regulator outputs and capacitor ripple filtering under load.
- Surge & Noise Isolation Audit: Testing isolation barriers to confirm protection against power rail feedback and transient interference.
- Anti-Static ESD Packaging: Enclosed in static-shielding ESD bags with fresh desiccant packages prior to placement in high-density foam crates.
DS3800HXPC1C1C
DS3800HXPC1C1C
The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ NEVER REMOVE UNDER POWER: The HXPC board carries active DC power rails. Removing or inserting this module while energized will cause electrical arcing across edge fingers and can damage adjacent processor cards.
- ❗ VERIFY HARDWARE JUMPERS EXACTLY: The board contains shorting jumpers used to route power rails or select bus sensing pathways. Duplicate all jumper positions pin-for-pin from your original board before applying power.
- ⚠️ CHECK CAPACITOR INTEGRITY ON AGING RACKS: Electrolytic filter capacitors on legacy power boards can degrade over time. Perform visual and ESR checks on replacement boards prior to installation.
- ❗ USE FULL ESD PROTECTION: Static discharge can ruin onboard logic and voltage reference components. Always wear a grounded ESD wrist strap when handling cards.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the DS3800HXPC1C1C interchangeable with earlier revision levels like 1A or 1B?
A: Later artwork/functional revisions like 1C1C are generally backward-compatible with earlier versions (1A or 1B), provided jumper settings are matched to your system layout.
Q: Does replacing a DS3800HXPC1C1C require software configuration or flashing?
A: No. The HXPC card is a hardware power coupler and distribution module. It contains no programmable software; configuration is done strictly via physical board jumpers.
Q: What is the main difference between DS3800 and DS200 power boards?
A: DS3800-series boards are built for legacy Speedtronic Mark IV control architectures, whereas DS200-series boards belong to Speedtronic Mark V platforms. They are not physically or electrically interchangeable.
Q: What warranty coverage is provided with this module?
A: Every unit includes a full 12-month replacement warranty from the delivery date, covering power regulation, trace continuity, and component execution.
