Description
Product Introduction & Engineering Value
The GE DS3800HXPC1C1D is a legacy DS3800-series printed circuit board identified by the HXPC family and C1C1D configuration. These boards are typically encountered in older GE control installations where maintaining the existing architecture is still more practical than replacing an entire control system.
For procurement, the complete part number is the key reference. A similar-looking DS3800 or HXPC board should not be assumed compatible until its electrical function, connector arrangement, configuration, and revision are checked against the installed equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS3800HXPC1C1D |
| Product Family | DS3800 |
| Board Family | DS3800HXPC |
| Board Type | Industrial control circuit board |
| Configuration | C1C1D |
| Technology Generation | Legacy GE control electronics |
| PCB Format | Plug-in printed circuit board |
| Primary Application | GE legacy industrial control equipment |
| Replacement Method | Exact part-number verification |
| Typical Stock Conditions | New surplus, refurbished, or used |
| Maintenance Approach | Visual inspection, electrical screening, and application-specific testing |
Technical caution: Public documentation for the exact DS3800HXPC1C1D is limited. Exact circuit function, voltage/current ratings, I/O assignments, connector pinouts, and host-system compatibility should be confirmed from GE drawings or the original equipment documentation. Avoid transferring specifications from another HXPC variant.
Field Application & the “Trench” Experience
A DS3800 replacement is rarely the place to experiment.
Imagine a maintenance team working through an intermittent cabinet fault during a planned outage. The installed PCB is identified as DS3800HXPC1C1D. A spare HXPC board is available, but its configuration code differs.
The technician stops the replacement.
The original board is photographed, connector positions are documented, and the equipment drawings are checked. The spare is determined to be a different configuration and is not installed. An exact-match unit is sourced instead.
That decision costs a little time during procurement. It avoids an unnecessary commissioning fault.
Niche application scenarios
- Legacy GE control cabinets: maintaining installed DS3800 systems with exact-match PCB replacements.
- Plant outage spare management: stocking critical HXPC boards for equipment with long operating lifecycles.
- Control-system life extension: replacing individual failed boards while retaining the established GE control architecture.

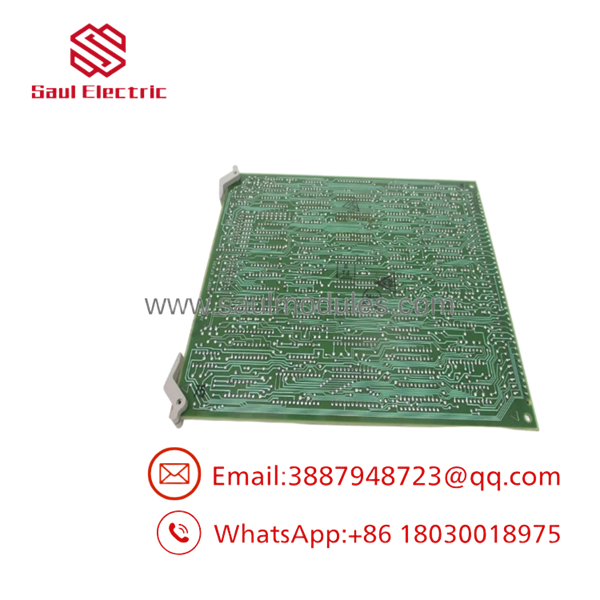

DS3800HXPC1C1D

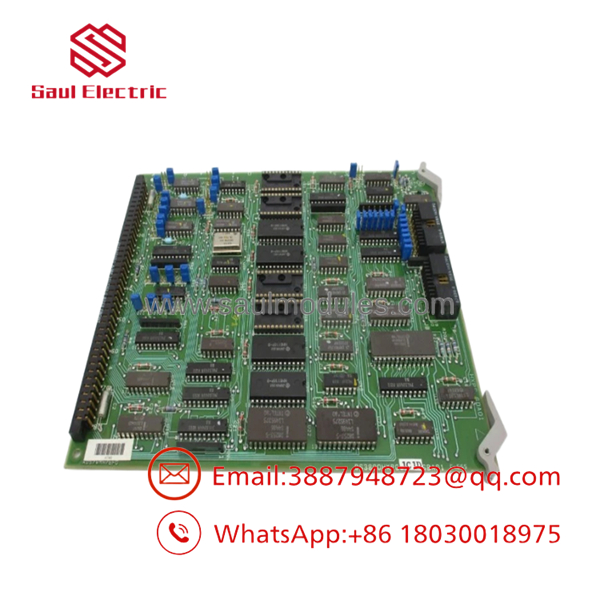

DS3800HXPC1C1D
Transparency SOP: QA & Testing
For DS3800HXPC1C1D, QA should be performed in several stages:
1. Identification
Verify the complete part number, board family, and available revision markings.
2. Physical condition
Inspect the PCB, components, connectors, solder joints, traces, mounting hardware, corrosion, and contamination.
3. Configuration
Record jumpers, switches, and other configurable elements where applicable.
4. Electrical screening
Check for shorts, abnormal resistance paths, damaged components, and evidence of thermal or electrical stress.
5. Functional testing
Where suitable test equipment is available, verify the board’s relevant application-specific functions.
6. Final QA
Record the board’s condition, test scope, traceability information, and warranty before shipment.
For New Surplus stock, confirm that the actual unit has not been installed, repaired, or modified.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Do not source by family alone.
“DS3800 HXPC” is not enough. Specify DS3800HXPC1C1D.
⚠️ Trap #2 — Similar connectors can be misleading.
A connector that physically fits does not prove that the electrical assignment is the same.
PRO TIP: Photograph the original board’s label, connector locations, jumpers, switches, and cabinet position before removal.
⚠️ Trap #3 — Don’t accept vague testing claims.
Ask whether the supplier performed visual inspection, electrical screening, or functional testing. The difference is significant for obsolete industrial PCBs.
Dynamic FAQ
What is the GE DS3800HXPC1C1D?
The is a GE DS3800-series industrial control PCB belonging to the HXPC board family.
What system is it used in?
It is associated with GE’s legacy DS3800 control hardware. The exact host application should be verified against the installed cabinet documentation.
Can another HXPC board replace it?
Not automatically. Verify the complete part number, configuration, revision, connectors, and electrical/application requirements before substitution.
What information is useful when sourcing a replacement?
Provide the complete number, photographs of the original PCB and label, revision markings, and the associated GE equipment or cabinet model.
How do I verify New Surplus authenticity?
Request photographs of the actual inventory unit and written confirmation of its service history. Ask specifically whether it has ever been installed, repaired, modified, or functionally tested.
What warranty should I confirm?
Confirm warranty duration, DOA coverage, return conditions, and testing scope. The supplier should clearly identify the unit as New Surplus, Refurbished, or Used.
