GE DS3800HXPD1B1D Speedtronic Mark IV Auxiliary Board

Description

Product Introduction

The GE DS3800HXPD1B1D serves as a power processing auxiliary card designed for legacy General Electric Speedtronic Mark IV turbine control card cages. Positioned inside the main rack assembly, this board conditions, regulates, and distributes internal DC power rails to adjacent processing, communication, and I/O interface cards operating on the backplane bus.

In our field experience, stable power delivery is the foundation of Mark IV rack reliability. The DS3800HXPD1B1D utilizes onboard filter networks, precision voltage regulators, and over-current protection pathways to smooth out line ripple and voltage transients. This prevents minor supply fluctuations from causing CPU logic resets or corrupting high-speed signal processing channels across the rack.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this scenario at an aging utility plant: Gas Turbine #1 undergoes a sudden bus shift during a grid fluctuation. Instead of riding through the transient, the entire Mark IV controller suffers a sudden processor watchdog reset, tripping the turbine offline. When you inspect the diagnostic logs, you find intermittent low-voltage dropouts on the internal 5V logic rail. The root cause isn’t the main power supply unit—it’s a set of dried-out filter capacitors on an aging HXPD power processing board failing to smooth out DC ripple.

• Legacy Utility Turbines – GE Frame 5, 6, and 7 Gas Turbines – Regulates internal board-level power distribution within Mark IV card cages.
• Industrial Steam Turbine Drives – High-Pressure Boiler Controls – Ensures clean DC supply rails for sensitive analog and digital process cards.
• Petrochemical Compression Racks – Turbomachinery Control – Filters incoming DC power to protect internal logic circuits from industrial field transients.

During a forced outage at a chemical processing plant, a failed auxiliary board caused continuous rack reset faults, keeping a critical synthesis gas compressor offline. The plant was burning money by the hour. We shipped a pre-inspected, live-tested DS3800HXPD1B1D board from our surplus inventory via priority air freight. The onsite instrument technician swapped the card into the rack, verified power rail stability with a multimeter, and restored full compressor operations that same evening.

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV racks.

1. Inbound Visual Inspection: Microscopic check for bulged or leaking electrolytic capacitors, thermal discoloration around regulator ICs, burnt traces, and edge contact wear.
2. Gold-Finger Edge Contact Refurbishment: Contact fingers are cleaned, polished, and micro-tested for uniform plating depth and low contact resistance.
3. Power Rail Load Testing: The board is connected to a dedicated load bank to test voltage regulation accuracy and ripple suppression under maximum current draw.
4. Live Card Cage Thermal Soak: Installed in a live Mark IV simulation rack operating inside an environmental chamber to verify zero thermal drift under high heat.
5. Anti-Static Packaging: Sealed in static-shielding bags with fresh desiccant prior to placement in custom foam-padded shipping containers.

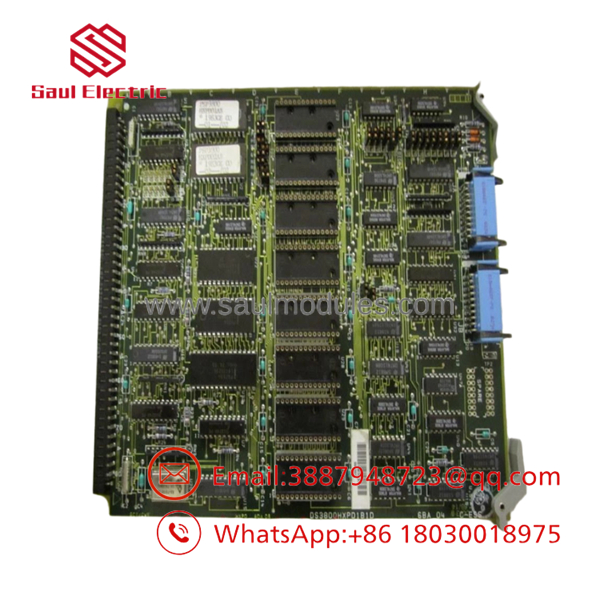

DS3800HXPD1B1D

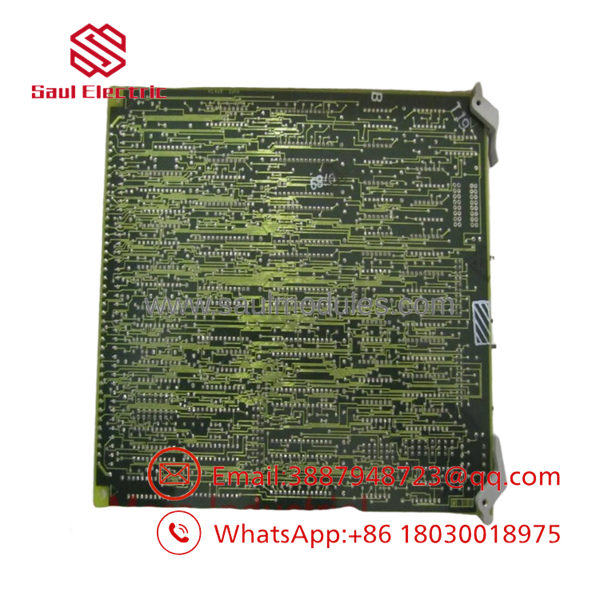

DS3800HXPD1B1D

The Veteran’s Tech Trap Guide

• ⚠️ Check Supply Rails Before Slotting the New Board: If your previous HXPD card suffered burned components or blown traces, measure the output of the main Mark IV rack power supply before installing the replacement board. An unregulated bulk power supply putting out excessive DC voltage will instantly destroy a fresh auxiliary processing card.
• ❗ Never Hot-Swap in a Mark IV Cage: The Speedtronic Mark IV backplane is not hot-swappable. Pulling or inserting a power-processing card while the rack is energized can create high-current arcs across the gold-finger contacts and cause severe voltage spikes on adjacent processor cards.
• ⚠️ Verify Hardware Jumpers: Check the replacement DS3800HXPD1B1D for shorting jumpers or configuration pins used to select power distribution pathways. Duplicate every jumper position from your original board onto the new board prior to installation.
• ❗ Clean the Backplane Edge Connector Slot: Dust and oxidation build up inside legacy card slots over decades. Clean the card cage slot with electrical contact cleaner and a cleaning card before seating the replacement board to ensure low contact resistance.

Frequently Asked Questions

• Q: Is the GE DS3800HXPD1B1D hot-swappable?
  • A: No. Attempting to pull or insert this card while the card cage is powered can arc the backplane connector pins and cause catastrophic system fault trips.
• Q: What is the primary purpose of the DS3800HXPD1B1D board?
  • A: It acts as an auxiliary power processing and conditioning module, filtering and regulating DC power distribution for adjacent logic and I/O cards within the Mark IV rack.
• Q: What does the “1B1D” suffix indicate?
  • A: “1B” identifies the base PCB artwork design group, while the full “1B1D” suffix designates specific factory hardware, component, and engineering revision levels from GE.
• Q: Do I need to program or configure software on this card?
  • A: No. The DS3800HXPD1B1D relies entirely on hardwired analog and power-regulation circuitry. No software loading or PROM flashing is required—simply set the hardware jumpers to match your original board.
• Q: What warranty comes with this surplus module?
  • A: We back all New Surplus and Refurbished GE Mark IV inventory with a full 12-month replacement warranty.
• Q: Why purchase surplus Mark IV hardware instead of upgrading the entire system?
  • A: Full system migrations cost hundreds of thousands of dollars and require weeks of planned shutdown time. Sourcing tested surplus hardware lets you maintain existing, proven turbomachinery controls with zero logic reprogramming or cabinet rewiring.
