Description
Product Introduction & Engineering Value
The GE DS3800HXRA1F1F is a legacy DS3800-series printed circuit board associated with the Speedtronic Mark IV turbine-control platform. The HXRA designation identifies the board family, while the complete F1F suffix is part of the hardware identification and should be retained in procurement records.
With Mark IV equipment, the right replacement is determined by more than physical fit. Maintenance personnel should compare the complete board number, revision, connector arrangement, configuration hardware, cabinet location, and applicable GE documentation before installing a replacement.
Technical Specifications
- Manufacturer: General Electric
- Part Number: DS3800HXRA1F1F
- Product Family: DS3800
- Control Platform: Speedtronic Mark IV
- Board Designation: HXRA
- Product Type: Control/interface PCB
- Primary Application: GE turbine-control equipment
- Hardware Generation: Mark IV
- Revision Identification: F1F
- Installation Environment: Mark IV control cabinet
- Configuration: Application-specific
- Replacement Strategy: Exact part-number verification
Technical caution: Publicly available documentation for the exact DS3800HXRA1F1F revision is limited. Specific numerical specifications—including operating voltage, I/O count, processor details, memory, connector pin assignments, and signal characteristics—should not be inferred from another DS3800 board. Verify them against the relevant GE Mark IV drawings and the actual board.
Field Application & the “Trench” Experience
A Mark IV turbine is approaching a scheduled startup following maintenance. During pre-commissioning checks, a control-board issue is traced to an existing DS3800 board. The plant has a spare marked “HXRA” in its inventory.
The technician checks the original board before touching the spare.
The identification reads DS3800HXRA1F1F. The technician records the part number and revision, photographs the connectors and configuration hardware, and then compares the spare with the original. The cabinet drawings are checked as well.
Only after the complete identification agrees does the replacement proceed.
This is not paperwork for its own sake. It is a practical way to prevent a legacy-board mismatch from becoming a startup problem.
Specific application scenarios
- Mark IV turbine-control board replacement — replacing an HXRA board during planned outage maintenance.
- Speedtronic controller troubleshooting — investigating abnormal control behavior where a board-level fault is suspected.
- Long-term critical-spare management — maintaining an identified DS3800HXRA1F1F board for continued operation of legacy Mark IV equipment.

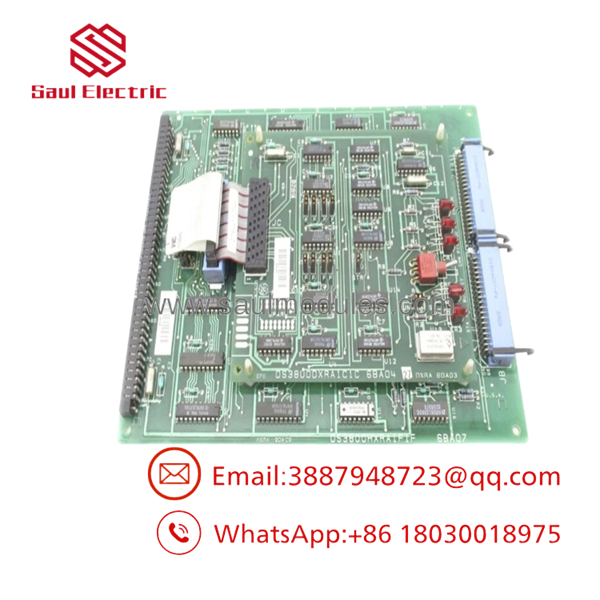

DS3800HXRA1F1F

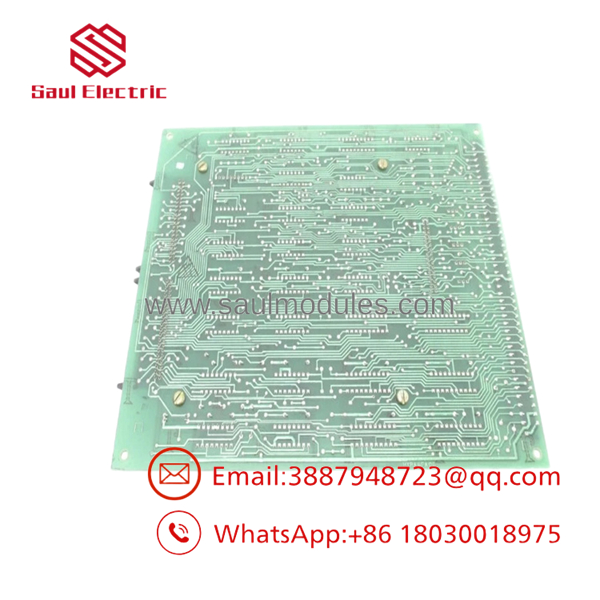

DS3800HXRA1F1F
Transparency SOP: QA & Testing
For New Surplus or Refurbished stock, quality control should be documented in enough detail for a maintenance engineer to understand what was actually verified.
Recommended inspection sequence
- Verify identity — confirm
DS3800HXRA1F1Fand all visible board markings. - Inspect the PCB — check for corrosion, contamination, damaged traces, cracked solder joints, and thermal discoloration.
- Inspect connectors — look for oxidation, bent contacts, contamination, and mechanical damage.
- Review components — inspect capacitors, resistors, semiconductors, ICs, and other visible components.
- Document configuration — photograph switches, jumpers, modifications, and configurable hardware.
- Perform electrical checks — use appropriate continuity, isolation, and power-path tests.
- Perform functional verification — where a suitable Mark IV test fixture is available, test the board under controlled conditions.
- Record final QC status — document test results, repairs, condition, and warranty.
QA warning: “Inspected” is not the same as “function-tested.” A supplier should state exactly which level of testing applies to the unit offered.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying by HXRA alone
The HXRA family designation is not enough to establish compatibility.
PRO TIP: Use the complete part number on the purchase order and inventory record.
⚠️ Trap #2 — Ignoring the F1F suffix
Do not treat the suffix as optional catalog information. A different revision may reflect hardware changes that require engineering verification before substitution.
⚠️ Trap #3 — Assuming New Surplus means recently manufactured
New Surplus generally means unused inventory, not necessarily recently produced hardware. A board may have been stored for many years.
Long-term storage can affect connectors, solder joints, capacitors, and other components.
⚠️ Trap #4 — Removing the original without recording configuration
Before disconnecting the old board, photograph its labels, connectors, configuration hardware, and cabinet position. That information can be difficult to reconstruct later.
Dynamic FAQ
What is the GE ?
The is a GE DS3800-series control/interface PCB associated with the Speedtronic Mark IV turbine-control architecture.
What system uses this board?
It is associated with GE’s legacy Mark IV Speedtronic turbine-control hardware.
Is the a PLC I/O module?
No. It is legacy Mark IV control hardware rather than a conventional modern PLC analog or discrete I/O module.
Can another DS3800 HXRA board be used as a replacement?
Not automatically. Confirm the complete part number, revision, connector configuration, cabinet position, and applicable GE documentation before substitution.
What should I provide when requesting a quotation?
Provide the full part number, clear photographs of the actual board, visible revision markings, cabinet/system identification, and any relevant GE drawings or manuals.
What does New Surplus mean?
New Surplus generally means unused inventory outside the manufacturer’s current production or normal distribution channel. It does not necessarily mean recently manufactured.
What does Refurbished mean?
Refurbished generally refers to previously used or returned hardware that has undergone inspection and may have been repaired and tested. Ask the supplier to state the actual refurbishment and test scope.
Should New Surplus stock be tested?
Yes. Long-term storage can affect electronic components even when the board has never been energized. Inspection and controlled functional testing are advisable before deployment in a critical Mark IV system.
What warranty should I expect?
The supplier should specify the warranty period, covered failures, return process, and stock condition. New Surplus, Refurbished, and Repaired boards should have clearly stated terms. A third-party warranty should not be presented as a GE factory warranty unless that status is documented.
