GE DS3800NDAC1B1C Digital to Analog Converter Board

Description

Product Introduction

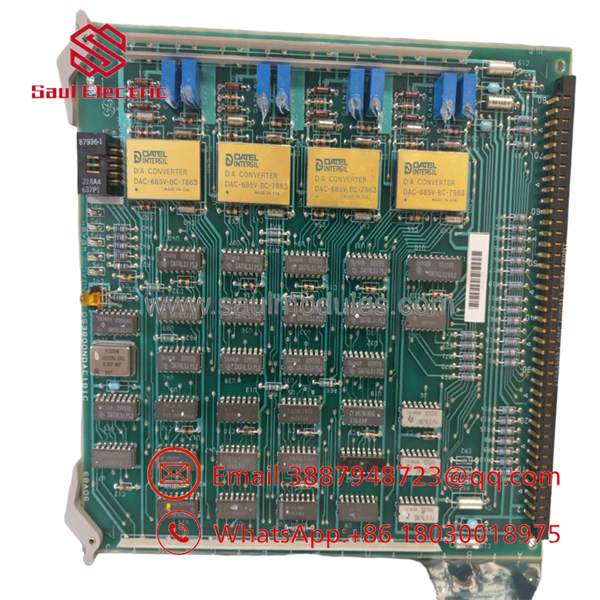

The GE DS3800NDAC1B1C (NDAC) is a legacy Digital-to-Analog Converter Board designed for GE Speedtronic Mark IV turbine control panels and DC2000 heavy drive systems. Positioned within the main rack assembly, this card bridges the gap between digital processing microprocessors and analog field hardware, transforming raw binary values into high-accuracy proportional voltage or current signals.

Engineered to drive analog meters, speed reference inputs, chart recorders, and position controllers, the NDAC board utilizes precision ladder resistor networks, operational amplifiers, and onboard trim potentiometers. Multi-channel isolation prevents backplane digital switching noise from bleeding into sensitive field loops, ensuring stable feedback and reference delivery across demanding industrial environments.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture this: It’s 2:45 AM during a graveyard shift at a paper mill. The main drive section starts hunting wildly, causing paper web tears that shut down the entire processing line. The operator terminal reports smooth speed commands, but a multimeter reading directly at the drive reference input reveals an analog signal jumping erratically between 2V and 8V. A failed operational amplifier on the aging NDAC board lost its offset voltage regulation, turning a stable digital reference into a noisy, erratic output.

• Legacy Utility Power Plants – Speedtronic Mark IV Steam and Gas Turbine Panels – Drives analog speed reference outputs, valve position feedback loops, and panel gauges.
• Heavy Manufacturing Steel & Paper Mills – GE DC2000 Rolling Mill Drives – Provides clean analog velocity and torque reference signals to motor drives.
• Chemical Processing Facilities – Industrial Control Racks – Translates digital commands into 4-20mA signals for modulating control valves.

Field Case Study: A municipal power station experienced continuous drift on its generator load indicators. Replacing the degraded DS3800NDAC1B1C board with a fully bench-tested surplus unit restored rock-solid analog output scaling. The team completed the swap in under 45 minutes, avoiding an unplanned outage during peak demand hours.

Transparency SOP: Quality Assurance & Testing

We understand that an uncalibrated or failing analog board can destabilize a critical control loop. Every DS3800NDAC1B1C undergoes a strict 5-step bench validation before shipping:

1. Inbound Micro-Inspection: Optical magnification check for thermal discoloration on op-amps, cracked trim potentiometers, trace corrosion, and edge-connector wear.
2. Dielectric Isolation Testing: Insulation resistance check between primary logic supply rails (+5V, ±15V) and output ground terminals to confirm zero leakage.
3. Live Test-Rig Power Up: Card is seated in a powered GE Mark IV test frame to verify digital bus decoding, register writes, and baseline logic power distribution.
4. Precision D/A Linear Injection Test: Step-wise digital code sequences are fed across all channels while recording analog output voltages using a calibrated 6.5-digit multimeter to verify zero, span, and linearity over 12 hours.
5. Anti-Static Sealing & Packaging: Cleaned, fitted with protective edge covers, vacuum-sealed in an ESD shielding bag, and packed in reinforced custom foam boxes.

DS3800NDAC1B1C

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Match Hardware Range Jumpers: Onboard jumper arrays set output voltage ranges (e.g., ±10V vs. 0-10V vs. 4-20mA mode). Take a clear photograph of your original card’s jumper positions and match every pin block on the replacement unit before powering up the rack!

❗ 2. Verify Zero and Span Potentiometer Calibration: Component tolerances mean that even a fully tested replacement board may require fine-tuning to match your specific plant field loop. Have a calibrated multimeter ready to check and adjust the onboard zero/span trim pots after installation.

⚠️ 3. Clean Edge Connectors Carefully: Decades of cabinet service create an oxide film on gold edge fingers. Never use abrasive sandpaper or wire brushes—they strip the thin gold plating down to raw copper. Use a lint-free swab saturated with high-purity isopropyl alcohol or a dedicated rubber contact cleaner pad.

❗ 4. Never Hot-Swap Under Power: Pulling or inserting this board while the card rack is energized can cause digital address pins to make partial contact, resulting in random full-scale analog output spikes that can slam control valves fully open or shut. Always lock out rack power first.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE DS3800NDAC1B1C hot-swappable?

A: No. Hot-swapping the NDAC board will disrupt active analog loops, cause voltage surges on the backplane, and trigger immediate process trips. Always power down the cabinet before replacing the module.

Q: What do the revision suffixes (1B1C) indicate?

A: The “1B1C” suffix specifies factory artwork layout and component updates implemented by GE during production. A DS3800NDAC1B1C is backward-compatible with earlier NDAC revisions (such as 1A or 1B), provided jumper profiles and trim calibration match your loop requirements.

Q: Do I need special software tools to configure this board upon installation?

A: No software loading is required. The NDAC operates at the hardware layer, converting incoming backplane digital data into analog levels. Configuration is handled entirely via physical jumper pins and onboard trim potentiometers.

Q: Are these units brand new OEM from General Electric?

A: GE discontinued the DS3800 series decades ago. Our stock consists of New Surplus (unused OEM factory spares) and Refurbished / Bench-Tested cards reclaimed from clean decommissioned facilities worldwide.

Q: What warranty coverage do you provide on legacy Speedtronic cards?

A: Every comes backed by our full 12-month operational warranty. If any conversion or component fault occurs under normal operating conditions within one year, we will provide an advance replacement or issue a full credit.
