Description
Product Introduction & Engineering Value

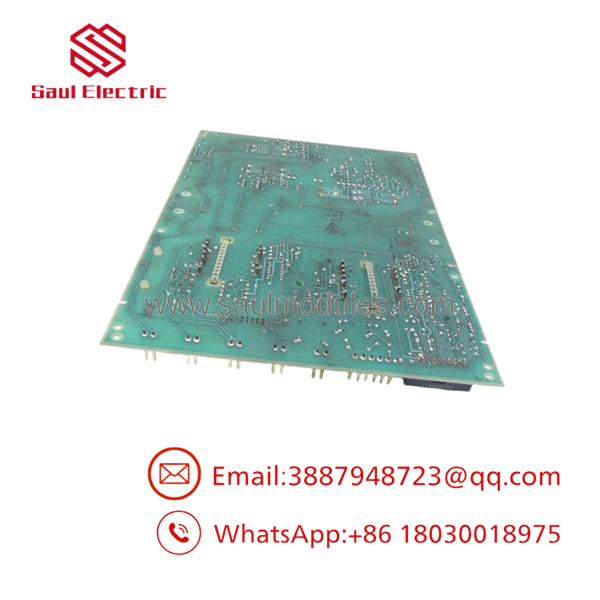

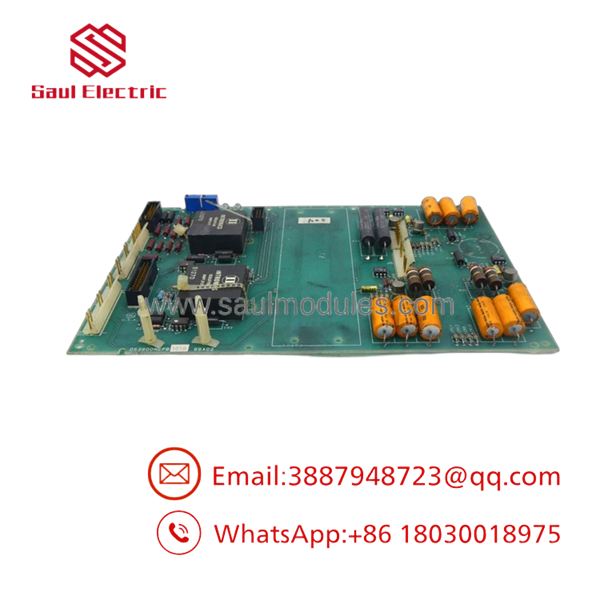

The GE DS3800NEPB1C1B is an NEPB-series printed circuit board from GE’s legacy DS3800 platform. For maintenance teams supporting older control equipment, this type of board remains relevant when the installed system cannot be economically or operationally replaced during a routine outage.
The complete part number is critical. Do not treat another DS3800 board as interchangeable simply because it has a similar form factor. Confirm the NEPB designation, 1C1B configuration, board markings, connector arrangement, rack location, and host-system documentation before installation.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: DS3800
Board Designation: NEPB
Part Number: DS3800NEPB1C1B
Board Type: Industrial printed circuit / control interface board
Configuration: 1C1B
System Category: Legacy GE control electronics
Typical Installation: DS3800-compatible equipment rack or control cabinet
Lifecycle: Legacy hardware
Primary Application: Compatible GE industrial control systems
Replacement Strategy: Exact part-number matching recommended
Technical Reference: Electrical and interface characteristics should be verified against the original GE system documentation
Technical caution: Detailed authoritative specifications for the exact DS3800NEPB1C1B configuration are limited in publicly available sources. Voltage ratings, connector pin assignments, I/O characteristics, component functions, and environmental ratings should not be inferred from the part number alone.
Field Application & the “Trench” Experience
A maintenance department supporting an older GE-controlled production line receives an alarm that points toward a board-level control problem. During the outage inspection, the technician identifies the installed assembly as DS3800NEPB1C1B.
There is a replacement available, but the technician first documents the failed unit. The board’s rack position, labels, connectors, jumpers, and visible configuration are recorded. The replacement is then inspected side-by-side before installation.
This matters with legacy DS3800 systems. After years of field maintenance, a cabinet may contain modified wiring, replacement components, or configuration changes that are not represented in a generic product listing.
Specific application scenarios
- Legacy GE control cabinets: Maintaining installed DS3800 electronics where full system migration is deferred.
- Industrial machine controls: Replacing an NEPB board during a planned maintenance outage.
- CNC and dedicated equipment: Keeping a verified DS3800NEPB1C1B spare available for board-level failures.
DS3800NEPB1C1B
DS3800NEPB1C1B
Transparency SOP: QA & Testing
For New Surplus inventory, use a documented receiving process:
- Verify the part number — Confirm DS3800NEPB1C1B on the actual PCB.
- Inspect the board — Check components, connectors, edge contacts, solder joints, and PCB surfaces.
- Review configuration — Document all visible jumpers, switches, daughterboards, and revision markings.
- Check storage condition — Look for corrosion, contamination, impact damage, or evidence of prior installation.
- Perform functional testing — When a compatible test fixture or host system is available, test against documented operating requirements.
- Protect against ESD — Store and ship the board in suitable anti-static packaging.
For refurbished stock, request the repair history and test results. “Inspected” does not necessarily mean “functionally tested.”
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Buying by the family alone
is a product family, not a complete compatibility specification. The required identification is .
⚠️ Trap #2 — Ignoring the 1C1B configuration
Do not assume the configuration suffix is insignificant. Match the complete ordering number against the removed board and system documentation.
PRO TIP: Photograph the board before removal. Capture the identification label, connector side, component side, jumpers, switches, and rack position.
⚠️ Trap #3 — Installing first and troubleshooting afterward
With obsolete control electronics, verify the replacement before energizing it. If the problem is actually caused by an external wiring or power fault, a good replacement board can become the next failed component.
Dynamic FAQ
What is the GE ?
The is a GE NEPB-series printed circuit board belonging to the legacy industrial control platform.
What does the NEPB board do?
The NEPB designation identifies the board family, but detailed public documentation for this exact configuration is limited. Its precise electrical and control function should be confirmed from the host equipment documentation.
Can another NEPB board replace ?
Not automatically. Verify the complete part number, configuration, revision markings, connectors, and system requirements before approving a substitute.
What information should I provide when sourcing it?
Provide the exact part number, clear photographs of the actual board, all visible markings, host equipment information, and the board’s installed rack position.
How can I verify New Surplus condition?
Request photographs of the actual unit and confirmation that it is unused. For critical applications, ask for inspection and functional-test records rather than relying only on a “New Surplus” description.
What warranty should I request?
Confirm the warranty duration, functional-test coverage, DOA policy, return conditions, and commissioning support. Those details are particularly important when purchasing legacy hardware from aftermarket inventory.
