Description
Product Introduction & Engineering Value
The GE DS3800NFCF1J1G is not simply a generic DS3800 control PCB. It is a firing-circuit board associated with GE’s Mark IV Speedtronic turbine control system, used for gas and steam turbine management. Its board-level architecture includes flip-flops, 4-bit up/down counters, static MOS RAM, and crystal oscillators.
For a turbine maintenance team, exact identification matters. The DS3800 family contains numerous boards with similar physical construction but different functions. The complete NFCF1J1G designation should therefore remain intact when sourcing a replacement.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | General Electric |
| Part Number | DS3800NFCF1J1G |
| Series | Mark IV / DS3800 Speedtronic |
| Board Type | Firing Circuit Board |
| Primary System | GE Mark IV turbine control |
| Circuit Count | 42 circuits |
| LEDs | 15 total — 14 red, 1 amber |
| Test Points | 29 |
| Vertical Connector | One 10-pin male connector |
| Additional Connectors | Two 218A4637-P4 0027 connectors |
| Configuration Hardware | Two jumper switches; Step and Reset plunge switches |
| Auxiliary Board Support | DS3800DFCF |
The available board description also reports 21 transistors, four nylon support pins, 17 metal locking pins, factory alignment drilling/marking, and 200 V electrolytic capacitors.
Field Application & the “Trench” Experience
Picture a turbine outage where a Mark IV cabinet has developed an intermittent firing-control problem. The maintenance crew has a suspected DS3800NFCF1J1G, but the temptation is to replace it immediately with another DS3800 board from stores.
That is where experienced technicians slow down.
The original board is documented first. The team verifies the NFCF1J1G identification, checks the LEDs and test-point area, photographs jumper positions, and compares the replacement board before disconnecting the existing wiring. If an auxiliary DS3800DFCF is fitted, its mechanical and electrical relationship with the motherboard is also checked. The available documentation specifically identifies the NFCF1J1G as the motherboard for this optional auxiliary board.
Niche applications include:
- Gas turbine firing-control maintenance within GE Mark IV Speedtronic cabinets.
- Steam turbine control-system outage work involving legacy DS3800 electronics.
- Mark IV turbine-control spare provisioning where exact board-level replacements are required.

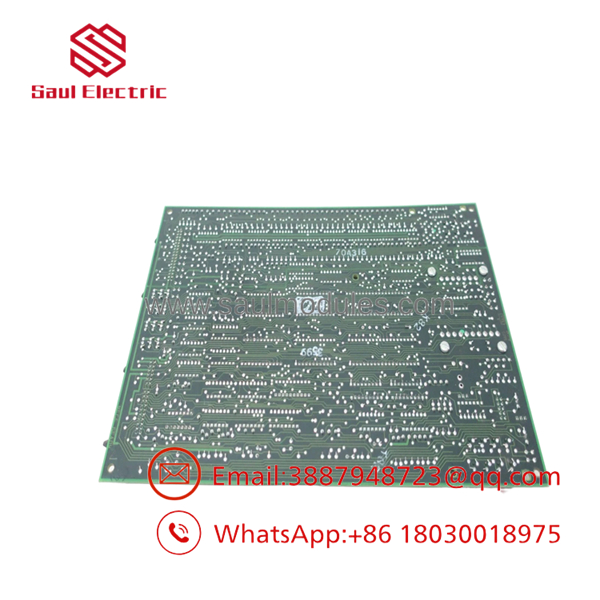

DS3800NFCF1J1G

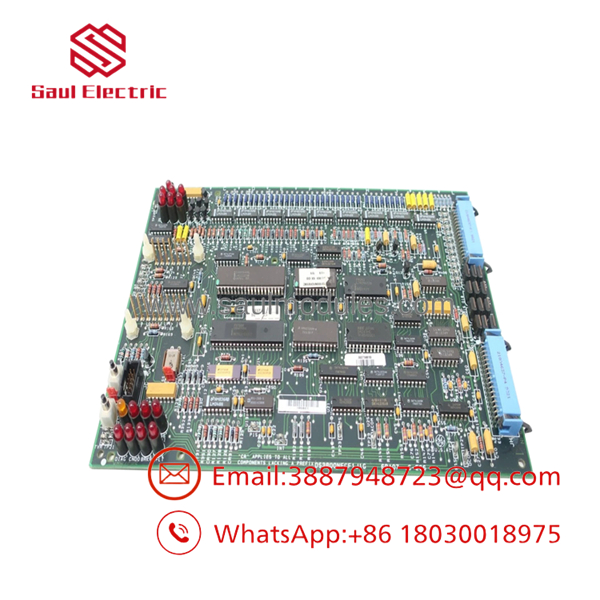

DS3800NFCF1J1G
Transparency SOP: QA & Testing
For this particular board, QA should go beyond a basic visual inspection.
Identification first. Confirm DS3800NFCF1J1G on the actual PCB and photograph the identification markings.
Then inspect the hardware. Check the 10-pin connector, two 218A4637-P4 connectors, LEDs, jumper switches, Step/Reset switches, test points, component bodies, solder joints, and PCB surfaces. The published board description confirms these physical features.
Next, inspect configuration. Pay particular attention to jumper positions and any auxiliary DS3800DFCF installation.
Finally, functional-test where practical. Testing should use appropriate GE Mark IV test procedures or compatible turbine-control test equipment. A generic power-on check is not equivalent to a firing-circuit functional test.
For New Surplus, verify that the board is genuinely unused and has not previously been installed or energized. For Refurbished, request the actual repair and test report.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Do not confuse the NFCF board with neighboring DS3800 firing boards.
The DS3800 family includes multiple firing-circuit variants, including NFCF and NFCD boards. Available DS3800 listings show numerous different suffix configurations.
⚠️ Trap #2 — Check the DS3800DFCF relationship.
The DS3800NFCF1J1G is documented as a motherboard for the optional DS3800DFCF auxiliary board. If the auxiliary board is installed, account for it before removing or replacing the motherboard.
⚠️ Trap #3 — Don’t ignore the jumpers and Step/Reset controls.
A replacement board that looks correct can still require configuration verification before being returned to service.
PRO TIP: Photograph jumper positions, LED status, and test-point areas before removal. Those records can be valuable if the turbine does not respond as expected after replacement.
Dynamic FAQ
Q: What is the GE DS3800NFCF1J1G?
A: It is a GE Mark IV Speedtronic turbine-control firing circuit board in the DS3800 family.
Q: Does it support an auxiliary board?
A: Yes. The DS3800NFCF1J1G is documented as the motherboard for the optional DS3800DFCF auxiliary board.
Q: How many LEDs and test points does it have?
A: Available technical information identifies 15 LEDs—14 red and one amber—and 29 test points.
Q: Is the DS3800NFCF1J1G interchangeable with another DS3800 firing board?
A: No assumption should be made. The exact board number and configuration must be matched to the turbine-control application.
Q: How can I verify New Surplus authenticity?
A: Request photographs of the actual PCB, including its identification markings, and obtain confirmation that it has not been installed or energized. Ask for inspection/test documentation rather than relying on a stock photograph.
Q: What about Refurbished units and warranty?
A: Ask for the refurbishment scope, functional-test procedure, actual-unit photographs, and written warranty terms. At least one current secondary-market listing identifies refurbished DS3800NFCF1J1G inventory and states that repair services are available.
