Product Introduction & Engineering Value
The GE DS3800NHVF1B1A belongs to the DS3800 family of legacy printed circuit boards used in GE Speedtronic turbine-control equipment. The complete board number is the important identification point when sourcing a replacement, particularly when several visually similar DS3800 boards are available.
For maintenance teams supporting Mark IV installations, avoid substituting by board family alone. Confirm the full part number, revision markings, cabinet position, connectors, configuration hardware, and applicable GE drawings before installation.
Technical Specifications
- Manufacturer: General Electric
- Part Number: DS3800NHVF1B1A
- Series: DS3800
- Control System: Speedtronic Mark IV
- Board Designation: NHVF
- Product Type: Control PCB
- Primary Application: Turbine-control equipment
- Hardware Generation: Legacy Mark IV
- Revision Identification: F1B1A
- Installation Context: GE turbine-control cabinet
- Configuration: Application-dependent
- Replacement Strategy: Exact part-number matching
Technical caution: Detailed public documentation for the exact DS3800NHVF1B1A revision is limited. Operating voltage, processor architecture, memory capacity, I/O characteristics, connector pinout, and signal specifications should not be inferred from another DS3800 model. Use the applicable GE Mark IV documentation and the installed board as the engineering reference.
Field Application & the “Trench” Experience
A maintenance crew is preparing a legacy turbine for restart after an outage. A control-board fault has been isolated, and the spare-parts cabinet contains several DS3800 boards.
One appears to match the NHVF family.
The technician checks the original board before proceeding. The identification reads DS3800NHVF1B1A. The replacement is compared against the complete number, revision, connector arrangement, configuration hardware, and cabinet documentation.
Only then is it released for installation.
That extra verification is particularly valuable with Mark IV equipment. A board can fit physically and still be electrically or functionally wrong for the application.
Specific application scenarios
- Mark IV turbine-control maintenance — replacement of a failed NHVF board during a scheduled outage.
- Legacy Speedtronic fault isolation — investigating control-system abnormalities where a PCB-level fault is suspected.
- Critical spare inventory — retaining an exact DS3800NHVF1B1A board for a long-service turbine installation.

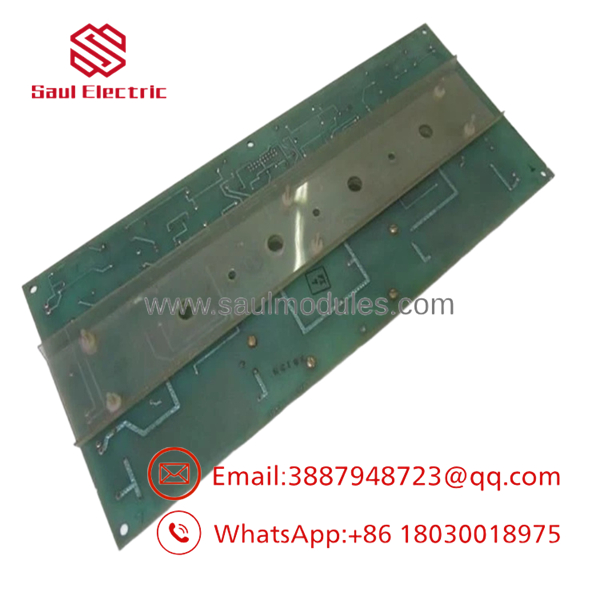

DS3800NHVF1B1A

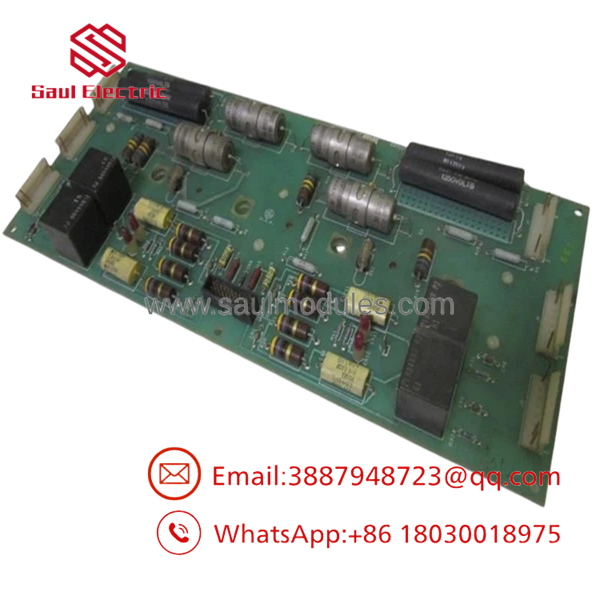

DS3800NHVF1B1A
Transparency SOP: QA & Testing
A credible supplier should distinguish between visual inspection and actual functional testing.
Recommended QA sequence
- Part-number verification — confirm
DS3800NHVF1B1Aand all visible board markings. - PCB inspection — check for corrosion, contamination, damaged traces, cracked solder joints, and thermal damage.
- Connector inspection — examine contacts for oxidation, bent pins, contamination, or mechanical damage.
- Component review — inspect capacitors, resistors, semiconductors, ICs, and other visible components.
- Configuration documentation — photograph switches, jumpers, modifications, and other configurable hardware.
- Electrical testing — perform appropriate continuity, isolation, and power-path tests.
- Functional testing — where suitable Mark IV test equipment is available, test the board under controlled conditions.
- Final QC — document test results, repair history, condition, and warranty status.
QA note: “Inspected” should not be represented as “function-tested.” The supplier should state exactly what was verified.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Ordering only “NHVF”
The family designation is not sufficient for replacement procurement.
PRO TIP: Put the complete identifier on the purchase order and inventory label.
⚠️ Trap #2 — Ignoring the F1B1A revision
Do not assume another NHVF revision is interchangeable. Verify any revision substitution against engineering documentation.
⚠️ Trap #3 — Assuming New Surplus means recently manufactured
New Surplus normally means unused inventory outside the manufacturer’s current production or standard distribution channel. It may have been stored for many years.
Long-term storage can affect electronic components and connectors.
⚠️ Trap #4 — Skipping the pre-removal documentation
Photograph the original board before disconnecting it. Record labels, connector locations, configuration hardware, and cabinet position.
Dynamic FAQ
What is the GE ?
The is a GE DS3800-series control printed circuit board associated with the Speedtronic Mark IV turbine-control architecture.
What system is the board used in?
It is associated with GE’s legacy Mark IV Speedtronic turbine-control equipment.
Is the a conventional PLC I/O module?
No. It is legacy turbine-control hardware rather than a standard modern PLC analog or discrete I/O module.
Can another NHVF board replace it?
Not automatically. Confirm the complete part number, revision, physical configuration, cabinet position, and applicable GE documentation before accepting a substitute.
What information should I provide when sourcing one?
Provide the complete number, photographs of the existing PCB, visible revision markings, cabinet/system information, and any available GE drawings or manuals.
What does New Surplus mean?
New Surplus generally describes unused inventory outside the manufacturer’s current production or normal distribution channel. It does not necessarily indicate a recent manufacturing date.
What is Refurbished stock?
Refurbished generally means previously used or returned hardware has undergone inspection and may have been repaired and tested. The supplier should disclose the actual work performed.
Should New Surplus stock be tested?
Yes. Unused legacy hardware can still experience age-related deterioration during storage. Inspection and appropriate functional testing are advisable before deployment in critical turbine-control equipment.
What warranty should I request?
Confirm the warranty period, covered failures, return procedure, and exact condition of the supplied unit. New Surplus, Refurbished, and Repaired units should have clearly stated terms. A supplier warranty should not be described as a GE factory warranty unless that status is documented.
