GE DS3800NMEC1D1E Control Board

Description

Product Introduction & Engineering Value

The GE DS3800NMEC1D1E is a legacy DS3800-series printed circuit board identified by the NMEC family and the 1D1E configuration. With this generation of GE hardware, the complete board designation is more useful than the family name alone when sourcing a replacement.

For maintenance teams supporting installed legacy equipment, an exact-match PCB can restore a failed control assembly without disturbing surrounding hardware. The replacement process should still begin with documentation: compare the original board identification, revision, connector arrangement, and configuration hardware before installation.

Technical Specifications

Technical note: Publicly available information for the exact DS3800NMEC1D1E is limited. I would not assign exact operating voltage, I/O count, signal levels, connector pinouts, or communication specifications without supporting GE documentation. Those values should be verified from the equipment drawings or original board documentation.

Field Application & the “Trench” Experience

A DS3800 failure can become expensive when technicians start replacing adjacent boards simply because the fault symptoms overlap. That is particularly common on legacy systems with limited diagnostic feedback.

Consider a maintenance crew working through an intermittent control fault. The failed PCB is identified as DS3800NMEC1D1E. Before removing it, the technician photographs the board and records the complete configuration. A similar DS3800 board is available in stores, but its final designation does not match. It stays on the shelf.

The exact replacement is inspected, installed, and tested against the system documentation. One board. One controlled replacement. Much less guesswork.

Niche application scenarios

• Legacy GE control cabinets: replacement of an NMEC-series circuit board in an existing DS3800 installation.
• Planned shutdown maintenance: keeping an exact-match spare available for obsolete GE control hardware.
• Industrial equipment life extension: maintaining an operating legacy control system while a modernization project remains on the longer-term plan.

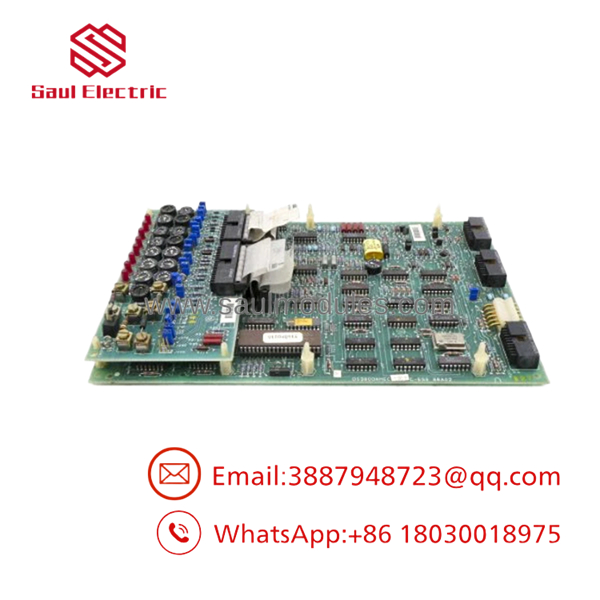

DS3800NMEC1D1E

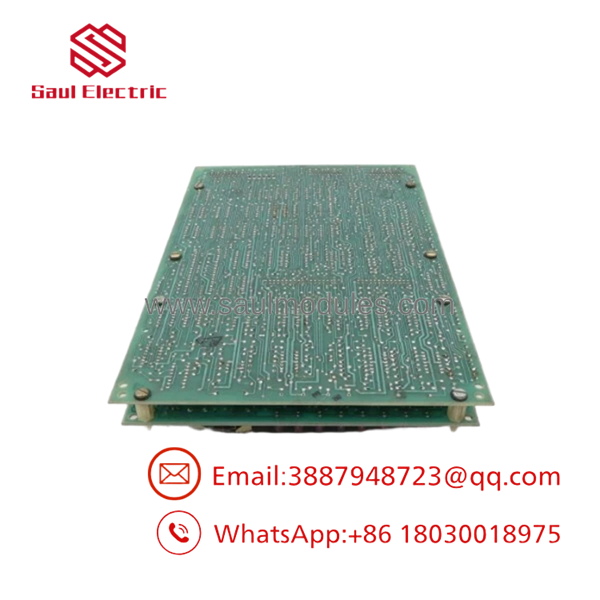

DS3800NMEC1D1E

Transparency SOP: QA & Testing

A credible QA process for the DS3800NMEC1D1E should cover six checkpoints:

1. Identity — Verify DS3800NMEC1D1E, configuration markings, and available revision information.
2. Visual condition — Inspect PCB traces, components, connectors, solder joints, mounting hardware, and contamination.
3. Configuration — Record jumper and switch positions where applicable.
4. Electrical screening — Check for obvious shorts, abnormal resistance, damaged components, and heat-related damage.
5. Functional test — Test on compatible GE equipment or a suitable board-level test platform when available.
6. Traceability — Document test status, condition, serial information when available, and warranty coverage.

For New Surplus stock, confirm that the actual board has not previously been installed or repaired.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — NMEC is not enough for procurement.
Always specify . The configuration suffix should be treated as part of the identification.

⚠️ Trap #2 — Do not infer electrical specifications from another DS3800 board.
The DS3800 platform contains many specialized circuit boards. A specification published for one board should not automatically be applied to another.

PRO TIP: Keep a photograph of the original board’s label in the maintenance record. If the board is later sent for repair, that photograph preserves the exact configuration reference.

⚠️ Trap #3 — Beware of “tested” without a test description.
Ask what was actually tested. A visual inspection and continuity check are not equivalent to functional testing in a compatible GE system.

Dynamic FAQ

What is the GE DS3800NMEC1D1E?

The is a GE DS3800-series industrial control printed circuit board identified by the NMEC board family and 1D1E configuration.

What equipment is it used in?

It is associated with legacy GE industrial control equipment. Exact system compatibility should be established from the original equipment documentation or cabinet drawings.

Can another DS3800NMEC board be substituted?

Not automatically. Verify the complete part number, revision, electrical characteristics, connector arrangement, and application requirements before substitution.

What should I send a supplier before ordering?

Provide the exact part number, photographs of the actual board, and the equipment model if available. Board revision and configuration markings are especially useful.

How do I verify New Surplus condition?

Ask for photographs of the actual unit and written confirmation of its history. Confirm whether it is unused, previously installed, repaired, modified, or electrically tested.

Does the replacement include a warranty?

Warranty coverage depends on the supplier and condition. Confirm the warranty duration, DOA coverage, return terms, and testing documentation before purchasing.
