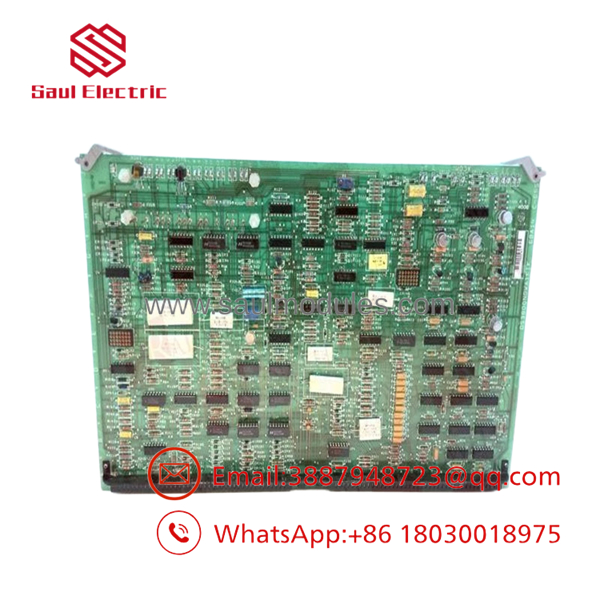

GE DS3800NOWA1K1K Mark IV Voltage Regulator Board

Description

Product Introduction

The GE DS3800NOWA1K1K is a high-precision regulator card engineered for GE Speedtronic Mark IV control panels and heavy-duty industrial drive frameworks. Operating within the core regulator chassis, this card stabilizes voltage, current, and speed reference signals, maintaining closed-loop regulation across complex process and turbine control systems.

Control technicians depend on the NOWA module because it eliminates control loop hunting and signal drift under varying load conditions. By combining precise operational amplifiers, low-drift filter networks, and onboard calibration trimmers, the card acts as the primary feedback conditioning element that keeps turbine governors and drive regulators performing within strict tolerance bands.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

It’s 4:00 AM during a heavy grid demand surge, and a peaking gas turbine suffers erratic speed oscillation (“hunting”) when attempting to synchronize with the transmission grid. The main governor CPU is executing correctly, but an aging analog regulation stage on the original NOWA board has suffered thermal component drift. As a result, the reference signal jumps by several millivolts, forcing the fuel valves to hunt constantly. Swapping in a bench-tested DS3800NOWA1K1K board, matching its hardware jumper setup, and performing a quick reference trim zeroes out the voltage drift and stabilizes speed governing immediately.

• Power Generation Facilities – GE Frame 5/6/7 Gas Turbines – Regulating speed governor reference loops and load feedback signals.
• Industrial Manufacturing Drives – Large DC Drives & Paper Mills – Providing steady-state speed and tension reference regulation.
• Refineries & Processing Facilities – Turbine-Driven Compressors – Maintaining tight closed-loop suction and discharge control.

Field Case Study

A marine industrial facility encountered continuous alarm trips on its auxiliary turbine generator due to reference bus ripple. Replacing peripheral feedback transducers failed to resolve the issue. Troubleshooting traced the noise to a degraded filter capacitor on the existing NOWA regulator board. We shipped a fully tested DS3800NOWA1K1K replacement card overnight. The shift engineer set the onboard jumpers to match the original layout, slid the module into the card rack, and completely eliminated reference noise—preventing a scheduled plant shutdown estimated at $65,000 in lost production.

Transparency SOP: Quality Assurance & Testing

We test every card on live GE test racks before shipment. Here is our internal verification process for the DS3800NOWA1K1K:

1. Inbound Visual & Trace Inspection: Inspect gold card-edge connector fingers for scratch marks or pitting, verify potentiometer health, and check for signs of thermal stress on onboard ICs.
2. Cold Power Rail Impedance Check: Test electrical resistance across power input lines to confirm no internal shorts exist before applying power.
3. Power-On & Backplane POST: Seat the module into a live Mark IV rack chassis to verify stable ±15V and +5V DC power bus loading.
4. Reference Signal & Loop Drift Sweep: Inject reference voltages across all regulation channels. Use a calibrated precision multimeter and oscilloscope to check output linearity, signal ripple, and thermal stability over extended run times.
5. Revision Code Audit: Log exact 1K1K revision markings on the final release documentation.
6. ESD Packaging: Package inside static-shielding bags with fresh desiccant prior to custom foam packaging.

DS3800NOWA1K1K

DS3800NOWA1K1K

The Veteran’s Tech Trap Guide (Crucial Value-Add)

⚠️ 1. Photograph Jumper Positions and Potentiometer Settings Before Removal!

The DS3800NOWA1K1K uses physical jumper arrays and multi-turn potentiometer trimmers to calibrate loop gain and offset levels. Installing a replacement board without matching the original card’s jumper positions can cause loop instability or immediate control trips. Take a clear, high-resolution photo of your original board before pulling it!

❗ 2. Allow Warm-Up Time Before Fine Trimming

If field calibration is required after replacing the NOWA board, allow the control cabinet to reach normal operating temperature for at least 15–20 minutes before making final potentiometer adjustments. Trimming precision analog circuits while cold can lead to slight calibration drift as internal cabinet temperatures rise.

⚠️ 3. Always Use ESD Grounding Standards

The precision op-amps and feedback networks on the NOWA board are highly sensitive to static electricity. Always wear a grounded ESD wrist strap clipped to the enclosure frame when handling this module, and never touch gold edge contacts directly with bare fingers.

Frequently Asked Questions (FAQ for Conversion)

A: No. Removing a regulator board while the Mark IV rack is powered disconnects critical feedback loops, causing an immediate control fault or emergency turbine trip. Always follow full LOTO procedures before replacing this module.

Q: What does the “1K1K” revision code mean?

A: In GE part numbering, 1K1K indicates the specific engineering revision. The first 1K refers to the printed circuit board artwork design, while the second 1K indicates the installed bill-of-materials (BOM) component revision.

Q: Can a 1K1K revision replace older suffix versions like 1H1H or 1J1J?

A: Yes, in most Mark IV applications, higher revision levels like 1K1K are backward-compatible with earlier revisions, provided all hardware jumper blocks and trim settings are matched to the original board layout.

Q: Is this unit new or refurbished, and what warranty is included?

A: We supply this module as New Surplus stock (unused factory original surplus). Every unit is backed by our full 12-month operational replacement warranty.

Q: Why choose New Surplus over OEM factory lead times?

A: Legacy GE Mark IV control cards have been out of production for years. Sourcing New Surplus from our available inventory eliminates multi-month factory lead times, avoids rush surcharges, and provides immediate drop-in replacement units to keep your plant running.
