GE DS3800NPSM1E1D Speedtronic Mark IV Power Supply Board

Description

Product Introduction

The GE DS3800NPSM1E1D serves as a primary power supply monitoring and regulation module for legacy General Electric Speedtronic Mark IV turbine management systems. Slotted directly into the central processing card cage, this card monitors incoming DC voltage buses, regulates secondary power rails, and handles system-level power-good signal execution for adjacent processing boards.

In our field experience, the DS3800NPSM1E1D is critical for preserving rack integrity. When external power dips or ground faults occur, this board senses voltage variance and triggers clean power-fail interrupts to the central processor before decaying voltage levels can cause erratic memory writes or uncommanded digital output toggling.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Picture a critical scenario at a municipal power plant: a sudden station battery charger fault causes a temporary voltage sag on the 125VDC bus. Instead of executing a clean, controlled power-fail sequence, the Mark IV card cage locks up into a memory-corrupted state, leaving the site team scrambling. The root cause is a failing power-monitor circuit on an aging NPSM board that failed to issue the master reset line when the 5V rail dropped below operating thresholds.

• Legacy Utility Turbines – GE Frame 5, 6, and 7 Gas Turbines – Regulates and monitors power delivery across the Mark IV processor backplane.
• Steam Turbine Drives – High-Pressure Boiler Controls – Prevents memory corruption during brownout conditions by managing system reset lines.
• Industrial Cogeneration Plants – Process Turbines – Delivers stable DC supply monitoring in environments prone to heavy electrical switching noise.

During a forced outage at an industrial facility, an old power board suffered electrolytic capacitor failure, causing continuous false power-fail alarms that prevented turbine startup. We dispatched a fully pre-inspected, live-tested DS3800NPSM1E1D board from our surplus inventory via express courier. The plant’s technician set the hardware jumpers, cleaned the backplane connector, slotted the card home, and had the turbine back on the grid in record time.

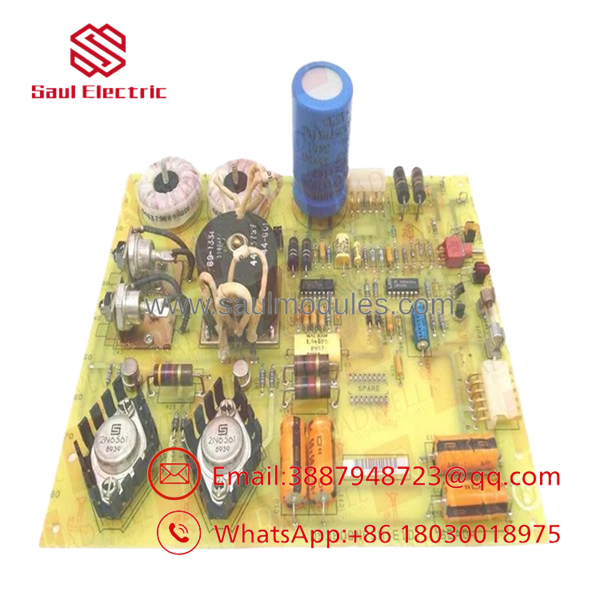

DS3800NPSM1E1D

Transparency SOP: Quality Assurance & Testing

We don’t just ship boxes; we test them on actual GE Mark IV racks.

1. Inbound Visual Inspection: Microscopic check for bulged electrolytic capacitors, heat-stressed power resistors, burnt PCB traces, and edge-connector plating wear.
2. Gold-Finger Contact Refurbishment: Contact fingers are cleaned, polished, and micro-tested for uniform gold plating depth and low contact resistance.
3. Power Rail Load Testing: The card is tested under full load on a dedicated bench supply to verify voltage monitoring thresholds and power-fail trip timing.
4. Live Card Cage Thermal Soak: Installed in a live Mark IV simulator rack operating inside an environmental chamber to verify zero thermal drift under high heat.
5. Anti-Static Packaging: Sealed in static-shielding bags with fresh desiccant prior to placement in custom shock-absorbing foam packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Inspect the Bulk Power Supply Output First: If your previous NPSM card suffered burned components or shorted traces, verify the main rack bulk power supply output before slotting in the replacement board. Excessive voltage from a failing bulk supply will instantly ruin a fresh monitoring card.
• ❗ Never Hot-Swap in a Mark IV Cage: The Speedtronic Mark IV backplane is not hot-swappable. Pulling or inserting a power management card while the rack is energized can arc the gold-finger contacts and cause severe power surges across adjacent processor cards.
• ⚠️ Duplicate All Jumper Positions: Check the replacement DS3800NPSM1E1D for hardware jumpers used to select voltage monitoring ranges and bus reset timing. Copy every jumper position from your original board onto the new board prior to installation.
• ❗ Clean the Backplane Edge Connector Slot: Dust and oxidation build up inside legacy card slots over decades. Clean the card cage slot with electrical contact cleaner and a cleaning card before seating the replacement board to ensure low contact resistance.

Frequently Asked Questions

• Q: Is the GE DS3800NPSM1E1D hot-swappable?
  • A: No. Attempting to pull or insert this card while the card cage is powered can arc the backplane connector pins and cause catastrophic system fault trips.
• Q: What is the primary purpose of the DS3800NPSM1E1D board?
  • A: It functions as a power supply monitoring and conditioning module, supervising internal DC voltage rails and issuing clean reset/interrupt signals during power sags.
• Q: What does the “1E1D” revision suffix indicate?
  • A: “1E” identifies the base PCB artwork design group, while the full “1E1D” suffix designates specific factory hardware, component, and engineering revision levels from GE.
• Q: Do I need to load software or flash firmware on this card?
  • A: No. The DS3800NPSM1E1D relies entirely on hardwired analog and power-monitoring circuitry. No software loading or PROM flashing is required—simply set the hardware jumpers to match your original board.
• Q: What warranty comes with this surplus module?
  • A: We back all New Surplus and Refurbished GE Mark IV inventory with a full 12-month replacement warranty.
• Q: Why purchase surplus Mark IV hardware instead of upgrading the entire system?
  • A: Full system migrations cost hundreds of thousands of dollars and require weeks of planned shutdown time. Sourcing tested surplus hardware lets you maintain existing, proven turbomachinery controls with zero logic reprogramming or cabinet rewiring.
