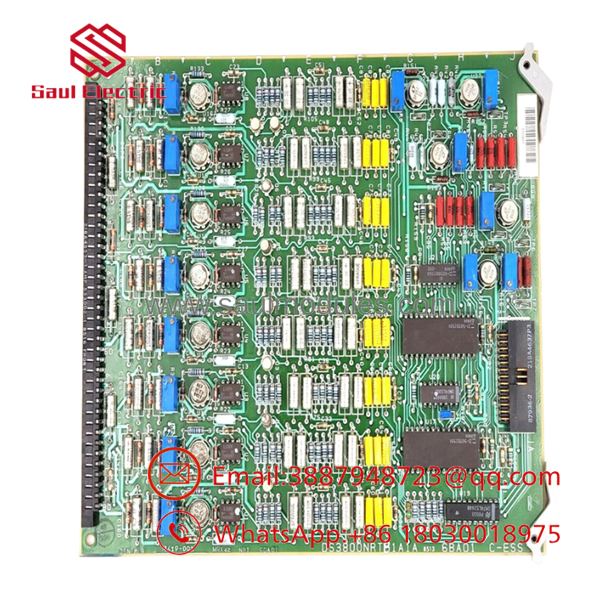

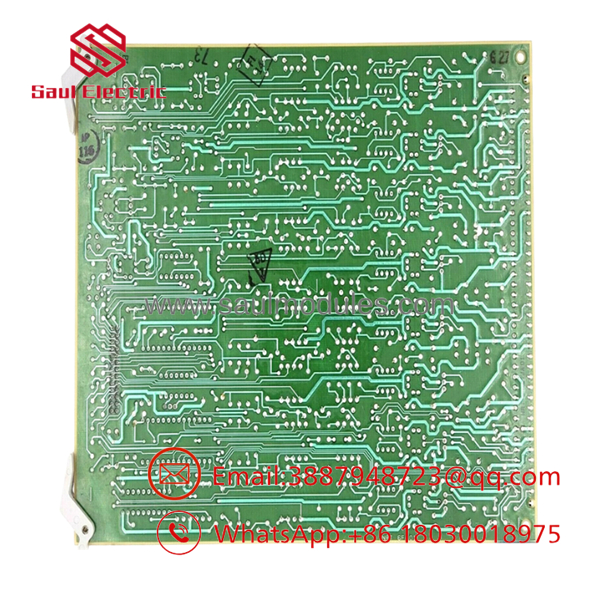

The GE DS3800NRTB1A1A is a Relay Terminal Board (NRTB) engineered for General Electric Speedtronic Mark IV turbine control enclosures and heavy industrial drive cabinets. Positioned at the physical boundary between cabinet field wiring and internal backplane electronics, this module acts as a ruggedized interface for discrete contact inputs, trip commands, and external status feedback.
By hosting onboard interposing relays and protective snubber circuits, the NRTB card decouples harsh plant floor signals (such as 125VDC solenoid loops or high-voltage switchgear contacts) from sensitive low-voltage backplane logic. This design ensures that field switching surges, induced ground noise, and physical wiring stress do not reach central processing units or trigger false turbine trips.
Key Technical Specifications
| Parameter | Specification / Value |
| Manufacturer | General Electric (GE) |
| System Architecture | Speedtronic Mark IV Turbine Control & System Drives |
| Board Functional Acronym | NRTB (Relay Terminal Board) |
| Primary Function | Field contact wiring termination, interposing relay isolation, and surge suppression |
| Terminal Connections | Screw-type barrier terminal strips for field wire landed connections |
| Relay Array | Industrial electromechanical relays for contact isolation and signal multiplication |
| Transient Protection | Metal-Oxide Varistors (MOVs) and RC suppression networks across terminal points |
| Backplane Interface | Multi-pin ribbon cable connectors / card-edge gold contacts for cage routing |
| Hardware Configuration | Physical BERG jumpers for contact logic polarity (NO/NC) and field power routing |
| Operating Temperature | -30°C to +65°C Industrial Extended Range |
Application Scenarios & The “Trench” Experience
The Trench Story
It’s 1:15 AM at a combined-cycle power station. Frame 7 Gas Turbine #3 fails to initiate its automated crank sequence due to a continuous “Master Protective Interlock Open” alarm on the HMI. Instrument technicians confirm that field limit switches are mechanically closed, but signal voltage is missing at the backplane card cage. Inspection reveals that a high-voltage inductive spike from an aging fuel valve solenoid degraded the contact points and suppression varistor on the original NRTB terminal card. Replacing the failed board with a pre-tested DS3800NRTB1A1A module and matching the physical BERG jumper configuration clears the false fault, allowing the turbine to fire and meet its morning grid dispatch target.
Industrial Applications
- Gas & Steam Turbine Control Panels: Landing discrete contact inputs and routing relay outputs for trip solenoids, hydraulic valves, and fuel stop interlocks.
- Excitation & Generator Control: Interface terminal points for breaker status contacts, lockouts, and generator trip signals.
- Industrial Drive Enclosures: Managing contactor control signals and fault interlock feedback in heavy motor drive cubicles.
Transparency SOP: Quality Assurance & Testing
Every legacy terminal module undergoes a strict, multi-stage reconditioning and physical contact validation protocol before dispatch:
- Inbound Physical Inspection: Detailed optical audit under magnification for screw terminal thread damage, cracked relay housings, burned MOV suppressors, solder joint fatigue, and trace overheating.
- Ultrasonic ESD Cleaning: Deep solvent wash to eliminate airborne carbon dust, oil film, and chemical contamination accumulated over decades of enclosure exposure.
- Relay Contact Resistance Audit: Testing all NO/NC contact paths with a micro-ohm meter to ensure zero contact pitting and minimal resistance under load.
- Surge Suppressor & Voltage Isolation Test: Checking all onboard MOVs and optocouplers for leakage current or dielectric breakdown under high-voltage testing.
- Live Mark IV Rack Execution: Installing the board into an active Speedtronic Mark IV test rack cage to verify signal continuity, backplane communication, and status LED actuation under full load.
- Jumper Audit & ESD Packaging: Documenting all physical BERG jumper positions before vacuum-sealing the card in static-shielding ESD packaging.
DS3800NRTB1A1A
DS3800NRTB1A1A
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Field Logic & Relay Configuration BERG Jumpers
The DS3800NRTB1A1A utilizes physical BERG jumper blocks to set contact logic states (Normally Open vs. Normally Closed) and select internal vs. external field contact power sources. Installing a replacement board without replicating the jumper layout from your original card can invert control logic—such as causing a trip solenoid to remain open when it should energize to close.
Fix: Photograph every jumper header on your failed board before removal, and duplicate every jumper position line-for-line on the replacement card.
❗ 2. Terminal Screw Over-Torquing & Wire Strain
Heavy field wiring attached directly to barrier terminals can apply mechanical leverage on the PCB if cables aren’t properly strain-relieved, causing hidden solder joint cracks under terminal blocks over time.
Fix: Always support field cable bundles with wire ties inside the cabinet, and use calibrated torque screwdrivers on terminal screws to prevent cracking the underlying board traces.
⚠️ 3. Revision Suffix Parity (1A1A)
The suffix 1A1A denotes the base production artwork revision. When replacing early-generation terminal cards, confirm whether your existing board utilizes external snubber modules or onboard MOVs to ensure mechanical and electrical compatibility.
Fix: Cross-reference the full alphanumeric part number printed on the side edge of your physical board before ordering.
Frequently Asked Questions (FAQ)
Q: Can I hot-swap the DS3800NRTB1A1A board while the Mark IV system is powered on?
A: No. Disconnecting or plugging in terminal boards carrying active field voltages (e.g., 125VDC contact loops) can cause arcing, false interlock trips, or damage to adjacent backplane modules. Always isolate cabinet control power prior to servicing.
Q: What is the most common failure mode on this module?
A: Contact pitting on onboard relays caused by high-duty-cycle switching of DC inductive loads, as well as thermal degradation of MOVs following field lighting or switching surges.
Q: Does this terminal board require software flashing or firmware installation?
A: No. The DS3800NRTB1A1A is a pure hardware-level terminal and relay interface card. It functions using passive components, electromechanical relays, and physical BERG jumpers—no software or firmware configuration is required.
Q: How do I verify whether a fault is on the NRTB card or in the field wiring?
A: Disconnect the field wires from the terminal block and measure field loop voltage/continuity independently. If the signal fault remains active on the Mark IV display with field wires removed, the issue is on the board or backplane logic.
Q: What warranty is supplied with your surplus and refurbished stock?
A: Every DS3800NRTB1A1A board shipped carries a full 12-month replacement warranty. If a module fails under standard operating conditions within one year of installation, it is replaced directly from stock.
