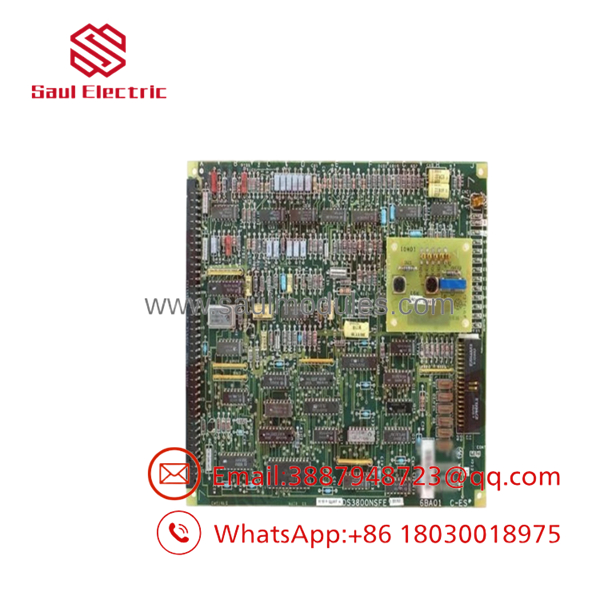

GE DS3800NSFE1B1A Control Board

Description

Product Introduction & Engineering Value

The GE DS3800NSFE1B1A is a legacy DS3800-series printed circuit board identified by the NSFE family and 1B1A configuration. The DS3800 platform contains numerous specialized boards, making the complete part number the critical procurement reference.

For maintenance teams keeping older GE equipment in service, an exact replacement can restore the affected cabinet without disturbing unrelated hardware. The important step comes before installation: verify the original board identification, revision, connector arrangement, and configuration against the replacement.

Technical Specifications

Technical note: Public documentation for the exact DS3800NSFE1B1A is limited. Exact voltage ratings, I/O assignments, signal characteristics, connector pinouts, and application-specific functions should be verified against the original GE technical documentation. Those values should not be inferred from the part-number structure alone.

Field Application & the “Trench” Experience

The real headache with obsolete control hardware is often the identification process. A cabinet can contain several DS3800 boards that look nearly identical, while only one is correct for a particular circuit position.

Imagine a maintenance team during a short shutdown. The failed PCB is marked DS3800NSFE1B1A. A spare with a similar NSFE designation is available, but the final configuration does not match. The technician holds it back, photographs the original board, verifies the complete part number, and sources the correct configuration.

After installation, the team performs controlled functional checks before returning the equipment to production.

No guessing. No unnecessary board substitutions.

Niche application scenarios

• Legacy GE control cabinets: replacement of an NSFE-series PCB within an existing DS3800 installation.
• Scheduled outage maintenance: stocking an exact-match board for equipment where an obsolete PCB can extend downtime.
• Control-system life extension: replacing individual failed boards while retaining the surrounding legacy architecture.

DS3800NSFE1B1A

Transparency SOP: QA & Testing

For New Surplus or Refurbished DS3800NSFE1B1A inventory, use a documented inspection sequence:

1. Confirm identity — Verify DS3800NSFE1B1A and all available revision markings.
2. Inspect the PCB — Check components, solder joints, traces, connectors, mounting points, and signs of corrosion or overheating.
3. Record configuration — Photograph and document jumpers, switches, and configuration hardware where applicable.
4. Perform electrical screening — Check for shorts, abnormal resistance, damaged components, and obvious electrical stress.
5. Perform functional testing — Use compatible GE equipment or a suitable test platform whenever possible.
6. Record QA status — Document the test procedure, actual condition, traceability information, and warranty.

For New Surplus inventory, confirm whether the actual unit has ever been installed, repaired, modified, or electrically tested.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not order by “DS3800NSFE” alone.
The complete designation is the safer procurement reference. Configuration suffixes matter on legacy GE boards.

⚠️ Trap #2 — Don’t assume a similar-looking NSFE board is interchangeable.
Physical fit does not establish electrical compatibility. Verify the system documentation before installing a different configuration.

PRO TIP: Photograph the original board label, connectors, jumper positions, and surrounding wiring before removal. Keep those images with the maintenance record.

⚠️ Trap #3 — “Tested” needs a definition.
Ask whether the board received visual inspection, electrical screening, or actual functional testing. Those are three different levels of verification.

Dynamic FAQ

What is the GE DS3800NSFE1B1A?

The is a GE DS3800-series industrial control printed circuit board identified by the NSFE family and 1B1A configuration.

What equipment uses this board?

It is associated with legacy GE industrial control equipment. Exact compatibility should be confirmed from the original cabinet drawings, equipment manual, or installed-board documentation.

Can another DS3800NSFE board replace it?

Not without verification. Compare the complete part number, revision, configuration, connectors, electrical characteristics, and system application.

What should I provide when requesting a replacement?

Provide the full part number and clear photographs of the original board. Equipment model and revision information are also useful for compatibility verification.

How can I verify New Surplus authenticity?

Request photographs of the actual inventory unit and confirmation of its service history. Ask whether it has ever been installed, repaired, modified, or electrically tested.

What warranty should I request?

Confirm the warranty period, DOA policy, return procedure, and test documentation before ordering. Coverage varies by supplier and by whether the board is New Surplus, Refurbished, or Used.
