Description
Product Introduction & Engineering Value

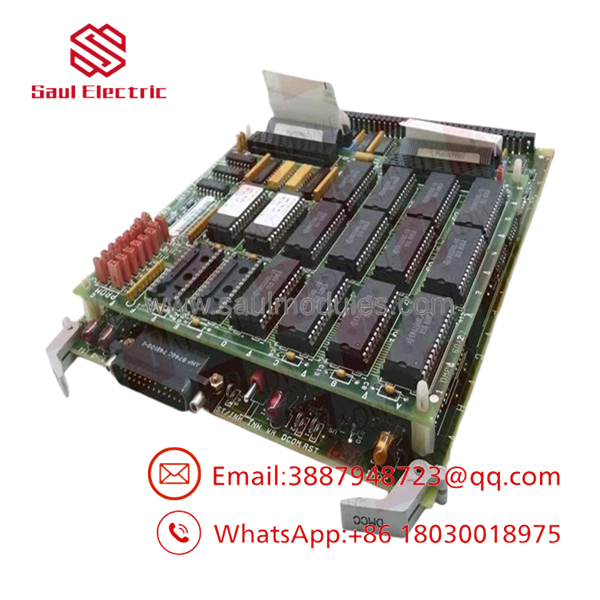

The GE DS3815DMCC is a legacy GE Speedtronic control board from the DS3815 hardware family. The DMCC designation identifies the board, but it should not be treated as sufficient information for replacement procurement without checking the actual board markings and system documentation.
This generation of GE turbine hardware rewards careful identification. Before installation, verify the complete part number, PCB revision, connector arrangement, cabinet position, and configuration details against the removed board and applicable GE drawings.
Technical Specifications
- Manufacturer: General Electric
- Part Number: DS3815DMCC
- Series: DS3815
- Related Hardware Family: DS3800/Speedtronic legacy control hardware
- Board Designation: DMCC
- Product Type: Control printed circuit board
- Application: GE turbine-control equipment
- Control Architecture: Legacy Speedtronic
- Installation: System-specific control cabinet
- Configuration: Application-dependent
- Replacement Method: Exact board identification
- Documentation Reference: Applicable GE system drawings/manuals
Technical caution: Detailed public documentation for the exact DS3815DMCC is limited. Do not infer processor type, memory capacity, operating voltage, I/O count, connector pinout, or signal characteristics from another DS3815 or DS3800 board. Those parameters should be verified against GE documentation for the specific installation.
Field Application & the “Trench” Experience
A plant running an older GE turbine has a control-board failure during a planned maintenance window. The spare-parts database lists several boards under the broad Speedtronic category, but only one is identified as DS3815DMCC.
The maintenance engineer checks the failed board before releasing the spare. The full board designation is recorded, along with PCB markings, connector positions, cabinet location, and visible configuration hardware. The replacement is then compared against those records.
It takes a few minutes.
That is preferable to discovering after installation that a physically compatible board belongs to a different control function.
Specific application scenarios
- GE Speedtronic turbine-control maintenance — replacement of a failed DS3815 board during a planned outage.
- Legacy controller troubleshooting — board-level fault isolation before replacing larger control assemblies.
- Critical spare inventory — maintaining an identified DS3815DMCC board for long-service GE turbine equipment.
DS3815DMCC
Transparency SOP: QA & Testing
For New Surplus and Refurbished inventory, the testing record should be specific.
1. Identity check: Confirm the DS3815DMCC marking and inspect all revision or modification identifiers.
2. Physical inspection: Examine the PCB for corrosion, contamination, cracked solder joints, damaged traces, burned components, and mechanical damage.
3. Connector inspection: Check contacts for oxidation, bent pins, contamination, or damaged housings.
4. Component assessment: Inspect visible capacitors, resistors, ICs, semiconductors, and other age-sensitive components.
5. Configuration record: Photograph switches, jumpers, modifications, and other configurable hardware.
6. Electrical testing: Perform appropriate continuity, isolation, and power-path checks.
7. Functional testing: Where suitable GE Speedtronic test equipment is available, verify operation under controlled conditions.
8. Final QC: Record the actual test scope, repair history, condition classification, and warranty.
A supplier should not use the word “tested” without being able to explain what was actually tested.
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Confusing DS3815 and DS3800 family listings
Legacy GE boards can be listed inconsistently by sellers. Always match the exact board number printed on the PCB rather than relying on a broad series description.
PRO TIP: Put exactly as written on the purchase order.
⚠️ Trap #2 — Ignoring revision or modification markings
If the actual board contains additional revision, artwork, or modification identifiers, photograph and record them before replacement. Do not assume that every board carrying the DMCC designation has identical hardware.
⚠️ Trap #3 — Treating New Surplus as recently manufactured
New Surplus normally means unused inventory. It does not establish manufacturing date or eliminate the effects of long-term storage.
⚠️ Trap #4 — Installing before recording the original configuration
Document the connectors, labels, switches, jumpers, cabinet position, and surrounding wiring before removing the existing PCB.
Dynamic FAQ
What is the GE ?
The is a GE legacy Speedtronic control printed circuit board from the DS3815 hardware family.
What system is it used in?
It is associated with GE turbine-control equipment and legacy Speedtronic control architectures. The exact cabinet function should be confirmed from the equipment documentation for the installation.
Is the a standard PLC I/O module?
No. It is legacy turbine-control PCB hardware rather than a conventional modern PLC analog or discrete I/O module.
Can I substitute another board?
Do not assume interchangeability. Verify the complete part number, revision or modification markings, cabinet location, connector arrangement, and system documentation before substitution.
What should I provide when requesting a quotation?
Provide the complete identification, photographs of the actual board, all visible revision markings, cabinet/system information, and any applicable GE drawings or manuals.
What does New Surplus mean?
New Surplus generally refers to unused inventory outside the manufacturer’s current production or normal distribution channel. It does not necessarily indicate recently manufactured hardware.
What does Refurbished mean?
Refurbished generally means previously used or returned hardware has been inspected and may have been repaired and function-tested. The supplier should disclose the actual work performed.
Should a New Surplus be tested?
Yes. Long-term storage can affect electronic components, connectors, and solder joints even when a board has never been energized. Appropriate inspection and controlled testing are advisable before installation in critical turbine-control equipment.
What warranty should I request?
Confirm the warranty period, covered failures, return procedure, and condition of the specific unit supplied. New Surplus, Refurbished, and Repaired boards should have clearly stated terms. A supplier warranty should not be represented as a GE factory warranty unless that status is documented.
