3. Product Introduction
The GE DS3815PLNI functions as a specialized PLNI Interface Board within legacy GE and GE Fanuc industrial automation and process control systems. Engineered for robust performance in harsh manufacturing environments, the PLNI module acts as a critical signal routing and communication interface between central controller racks, field expansion hardware, and peripheral I/O cards.
Constructed with high-grade industrial-tier components, the DS3815PLNI incorporates signal isolation buffers, noise suppression networks, and configurable jumper pathways. It ensures low-latency data handshakes across system backplanes, preventing transmission errors and logic drops in continuous industrial processes.
4. Key Technical Specifications
| Parameter | Specification |
| Manufacturer | General Electric (GE) / GE Fanuc |
| Part Number | DS3815PLNI |
| Series | DS3815 Control Platform |
| Board Function | PLNI Interface Module |
| Form Factor | Rack-Mounted Circuit Card with Edge/Header Pin Interfacing |
| Signal Handling | Logic buffering, bus isolation, and system communications |
| Hardware Diagnostics | Onboard voltage/signal test points and configuration jumpers |
| Operating Temp | -30°C to +65°C (-22°F to +149°F) |
5. Application Scenarios & The “Trench” Experience
During routine process operations on an automated production line, system monitoring flags sporadic communication faults between a central control rack and a remote expansion bay. Signal tracing isolates noise corruption and trace degradation on an aging PLNI interface card. Maintenance personnel safely power down the rack, remove the existing module, and install a replacement DS3815PLNI. After verifying all hardware jumpers match the original panel configuration, communication lines clear completely upon power restoration, allowing full automated operations to resume.
- Industrial Process Automation – Controller Interfacing – Manages high-speed signal routing between main PLC processors and expansion sub-racks.
- Legacy Drive & Motion Control Systems – Bus Communication Isolation – Transmits logic triggers while isolating sensitive controller logic from field transients.
- Legacy Plant Equipment Maintenance – Drop-In Hardware Swap – Extends the operating lifespan of legacy control panels without costly system overhauls.

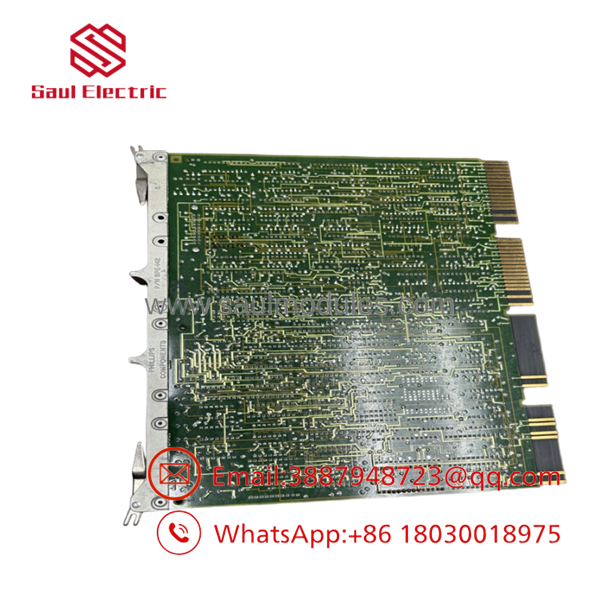

DS3815PLNI

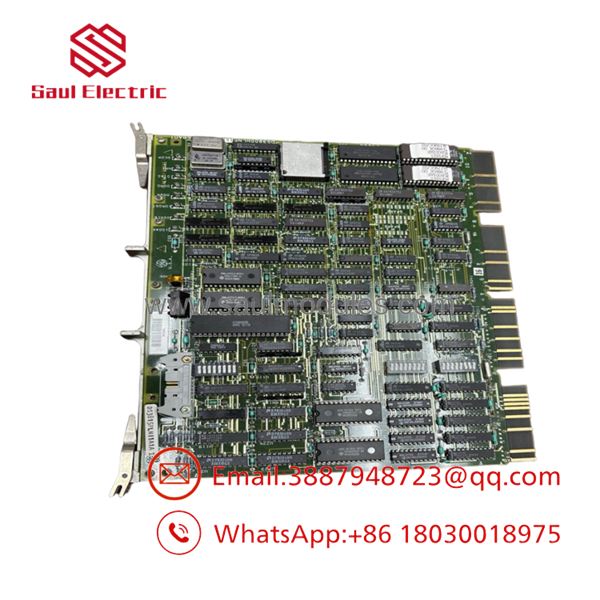

DS3815PLNI
6. Transparency SOP: Quality Assurance & Testing
- Visual & Structural Audit: Magnified inspection for trace fractures, component heat stress, solder joint fatigue, and physical header connector integrity.
- Contact Cleaning: Micro-polishing edge contacts and header pins to guarantee minimum contact resistance across the backplane.
- Power Rail Verification: Supplying regulated bench DC power to test onboard logic gates, voltage drop accuracy, and reference rails.
- Bus Signal Pass-Through Test: Mounting on a compatible test rack to verify line-side communication integrity, frequency response, and channel separation.
- Anti-Static ESD Packaging: Encapsulated in heavy-duty ESD static-shielding bags with fresh desiccant prior to protective foam packaging.
7. The Veteran’s Tech Trap Guide (Crucial Value-Add)
- ⚠️ POWER DOWN RACK BEFORE EXTRACTING: Backplane slots carry active DC logic power. Never hot-swap the
DS3815PLNIboard, as pulling or inserting the module under power can arc edge contacts or damage adjacent processing cards. - ❗ VERIFY HARDWARE JUMPERS EXACTLY: The board features shorting jumpers to set address lines, signal gains, or terminations. Duplicate all jumper positions pin-for-pin from your original board prior to installation.
- ⚠️ CHECK CABLE HEADER LOCKS: Ensure multi-pin ribbon cables or harness connectors fully click into place. Vibration-induced partial disconnects can lead to intermittent bus errors.
- ❗ USE FULL ESD PROTECTION: Static discharge can ruin sensitive interface ICs. Always wear a grounded ESD wrist strap when handling the card.
8. Frequently Asked Questions (FAQ for Conversion)
Q: What is the primary role of the DS3815PLNI board?
A: It serves as a PLNI Interface Board, coordinating signal pathways, logic handshakes, and bus communication between system controllers and peripheral racks.
Q: Does replacing a DS3815PLNI board require software or firmware downloads?
A: No. The board acts as a hardware interface card. Transferring hardware jumper settings from your original board to the replacement handles all operational requirements.
Q: Is the DS3815 series compatible with DS3800 series cards?
A: While both belong to legacy GE industrial product families, physical backplane layouts and pinouts can differ. Always verify system slot compatibility against your specific control cabinet documentation.
Q: What warranty comes with this replacement card?
A: Every unit is backed by a full 12-month replacement warranty covering signal execution, trace continuity, and interface reliability.
