GE DS3820AIQA1A1A Analog I/O Board Mark IV

Description

Product Introduction & Engineering Value

The GE DS3820AIQA1A1A is a legacy Mark IV Speedtronic circuit board used in turbine-control applications. Its role is associated with analog signal handling and I/O within the control system, making it relevant to instrumentation and control loops that depend on accurate signal acquisition and processing.

This is not a generic analog PLC card. It belongs to a specific GE turbine-control architecture, and the complete board number matters. Secondary documentation also links the DS3820AIQA1A1A with the DS3800XAIB1E1E analog I/O board, so the installed rack configuration should be checked before selecting a spare.

Technical Specifications

Physical identification

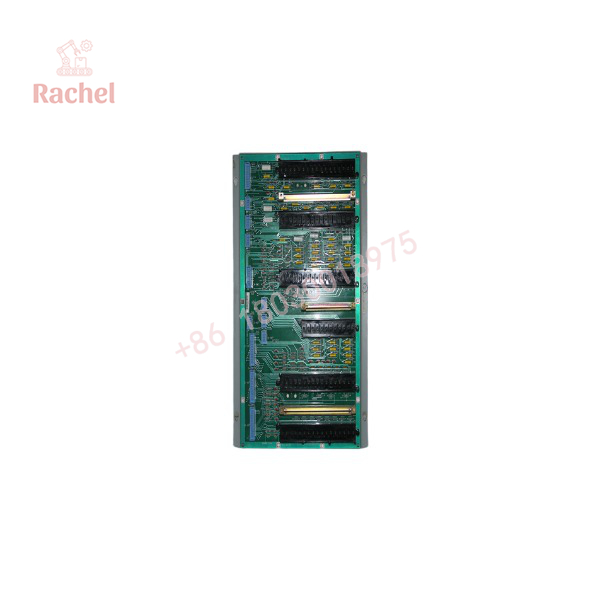

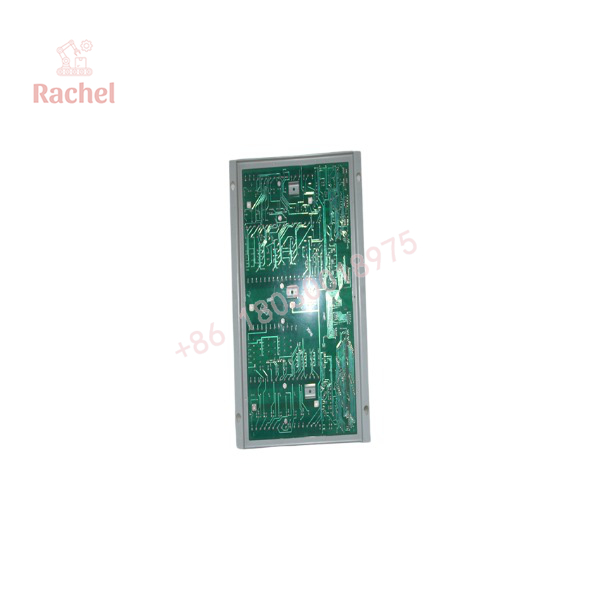

Published descriptions of the exact DS3820AIQA1A1A identify a substantial component population on the board, including 8 large black rectangular components, 4 metal platforms, 11 transistor-like devices, 32 red diodes, 16 yellow diodes, and 65 smaller blue diodes. The board is also described as having four 10-pin male connectors and six 26-pin blue connectors.

These physical characteristics can be useful when comparing a suspected spare against an installed board, but the complete part number and revision remain the primary identification criteria.

Specification caution: Publicly available secondary sources do not provide a sufficiently authoritative channel-by-channel electrical specification for this exact board. Do not infer voltage ranges, channel counts, accuracy, or input/output scaling from generic “analog I/O” descriptions.

Field Application & the “Trench” Experience

Picture a legacy turbine-control cabinet during a planned outage. One analog control loop begins producing an implausible signal after maintenance work. The field transmitter checks correctly. The wiring checks correctly. The problem eventually traces back to the Mark IV I/O hardware.

With equipment of this age, the difficult part is often not physically replacing the PCB. It is establishing that the replacement is the same electrical and functional variant. The technician photographs the existing DS3820AIQA1A1A, records its complete board designation, documents connector positions, and compares the suspected spare before removing the original.

That approach matters because DS3800/DS3820 boards were designed as components of a larger Speedtronic architecture rather than as standalone universal I/O cards. The DS3820AIQA1A1A is explicitly cataloged among GE Mark IV turbine-control boards.

Niche application scenarios

• Gas turbine combustion monitoring: Processing analog instrumentation associated with turbine operating parameters.
• Steam turbine auxiliary control: Maintaining analog signal paths within legacy Speedtronic control cabinets.
• Turbine protection and instrumentation panels: Supporting analog acquisition/control functions where the original Mark IV hardware remains in service.
• Power-generation retrofit maintenance: Holding a tested spare to avoid forced migration from a functioning legacy control architecture.

DS3820AIQA1A1A

DS3820AIQA1A1A

Transparency SOP: QA & Testing

For New Surplus inventory, the inspection process should include:

1. Exact identity check — Verify character by character against the customer’s installed board.
2. Visual inspection — Examine the PCB, component bodies, solder joints, connectors, mounting hardware, and board edges.
3. Connector inspection — Check all 10-pin and 26-pin connector interfaces for bent, damaged, oxidized, or contaminated contacts.
4. Component inspection — Look for cracked components, discoloration, corrosion, evidence of overheating, or previous board-level repair.
5. Functional testing — Where a compatible Mark IV test environment is available, verify the applicable analog I/O behavior and system communication.
6. Traceability — Record the exact board number, revision information, physical condition, and test status before shipment.

For refurbished units, the supplier should state whether the board underwent component-level repair, PCB cleaning, electrical testing, or full functional testing.

A visual inspection is useful. It is not a functional test.

The Veteran’s Tech Trap Guide

⚠️ Trap #1 — Do not confuse the board family with the complete part number.

DS3820AIQA and should not be treated as interchangeable purchasing descriptions. The latter is the complete designation provided by the secondary GE Mark IV inventories reviewed for this model.

⚠️ Trap #2 — Watch for incorrect Mark IV/Mark V descriptions.

Some online listings describe the DS3820AIQA1A1A as a Mark V board, while multiple other references place it in the Mark IV DS3800 family. The Mark IV identification is substantially better supported by the available evidence.

PRO TIP: When purchasing, specify GE Mark IV Speedtronic + DS3820AIQA1A1A, rather than simply “GE analog I/O board.” That reduces the chance of receiving a visually similar DS3800-family card.

⚠️ Trap #3 — Do not assume the analog channels from another DS3820 board.

The DS3820 family contains multiple different board types, including AIPA, AIQA, AIRA, AISA, and others. A similar-looking board from the same family does not establish functional compatibility.

Dynamic FAQ

What is the GE DS3820AIQA1A1A?

It is a GE Speedtronic Mark IV turbine-control circuit board, commonly identified as an analog I/O module or turbine control card.

Is the DS3820AIQA1A1A a Mark IV board?

Yes. The exact part number is listed within GE’s Mark IV DS3800 board family.

Is it an analog input or analog output board?

Public secondary sources consistently classify the unit broadly as an analog I/O module, but they do not provide sufficiently authoritative channel-level information to state the exact input/output channel configuration. Do not purchase it based solely on a generic analog-input or analog-output description.

What board is associated with DS3820AIQA1A1A?

Several secondary sources associate it with DS3800XAIB1E1E. One listing explicitly presents the two designations together, while another identifies the DS3820AIQA1A1A as a Mark IV turbine-control card.

Can I replace it with another DS3820 analog board?

Not without engineering verification. The DS3820 family includes multiple board variants with different functions. The complete part number, hardware revision, rack position, connector arrangement, and system documentation should all be checked before substitution.

How should New Surplus authenticity be verified?

Request clear photographs of the actual board, including the GE identification label and complete designation. Inspect the PCB and connectors for prior installation or repair. For a turbine-control spare, also request a documented functional-test report where available.

For procurement, the safest description is:

GE DS3820AIQA1A1A — Mark IV Speedtronic Analog I/O / Turbine Control Board — verify complete part number and revision before shipment.
