GE EPSCPE100-ABAC PACSystems RSTi-EP Standalone CPU

Description

Product Introduction

The GE EPSCPE100-ABAC is a high-performance PACSystems RSTi-EP standalone programmable automation controller designed for distributed industrial control systems. It combines the CPU, Ethernet communications, and PROFINET controller into a compact DIN rail-mounted platform suitable for machine automation, process control, remote I/O stations, and OEM equipment.

Unlike older modular PLC architectures that require separate communication processors, the EPSCPE100-ABAC integrates multiple Ethernet interfaces directly into the controller. In our field experience, this greatly simplifies cabinet design. The trade-off is that firmware compatibility becomes much more important. Always verify the installed firmware against your Proficy Machine Edition (PME) version before downloading an application.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

Here’s one that happens more often than people admit.

A packaging line has been running reliably for years. Maintenance replaces the controller after a power event. Hardware installation takes fifteen minutes. Downloading the application takes another five. Then nothing communicates with the remote PROFINET devices.

The controller isn’t defective.

The project was created using a newer PME release than the replacement controller firmware supports.

Two hours disappear before anyone checks firmware compatibility.

Typical applications include:

• Automotive Manufacturing — Distributed machine control with PROFINET remote I/O.
• Packaging Equipment — High-speed sequence control with deterministic Ethernet communication.
• Water & Wastewater — Pump stations using Ethernet-connected remote I/O.
• Food & Beverage — Conveyor systems, filling machines, and production line automation.
• Energy Facilities — Balance-of-plant control requiring compact distributed PLC architecture.

Field Replacement Example

A system integrator upgraded an aging distributed PLC network serving multiple conveyor zones. After installing an EPSCPE100-ABAC, the controller booted normally but refused the project download. The hardware was healthy. The issue turned out to be firmware revision 9.35 versus a project created with a later PME release. After upgrading controller firmware and downloading the revised project, every remote I/O rack entered RUN mode without replacing a single field device.

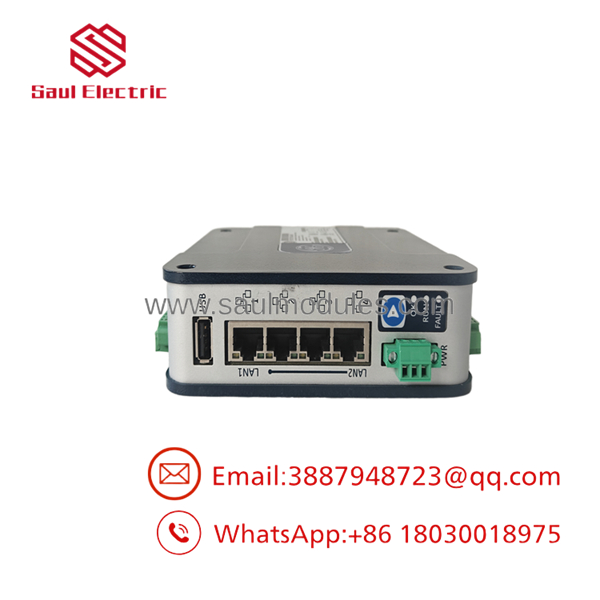

EPSCPE100-ABAC

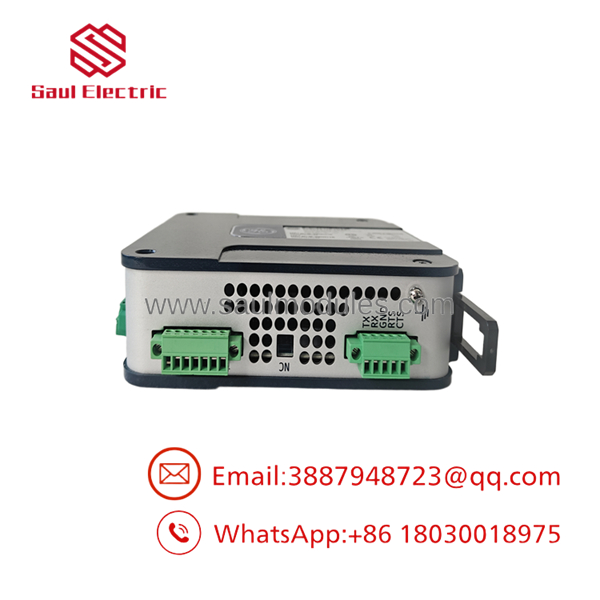

EPSCPE100-ABAC

Transparency SOP: Quality Assurance & Testing

We don’t just ship controllers; we test them on compatible PACSystems RSTi-EP hardware.

• Inbound Inspection
  • Verify complete catalog number and hardware revision.
  • Inspect Ethernet ports, housing, terminals, and DIN rail latch.
  • Confirm there is no evidence of overheating or unauthorized repair.
• Live Functional Testing
  • Apply 24 VDC power.
  • Verify controller boot sequence.
  • Confirm Ethernet link activity.
  • Verify controller enters RUN mode.
• Electrical Parameter Checks
  • Measure input power consumption.
  • Verify Ethernet communication.
  • Confirm controller diagnostics remain fault-free.
• Firmware Verification
  • Record firmware version.
  • Verify hardware revision.
  • Confirm compatibility with customer PME version.
• Final QC & Anti-static Packaging
  • Complete operational inspection.
  • Anti-static packaging.
  • Shock-resistant shipping.
  • Full serial-number traceability.

The Veteran’s Tech Trap Guide

⚠️ Check PME compatibility before replacing the controller.

The ABAC hardware originally shipped with firmware 9.35. Projects created using newer PME releases may require controller firmware updates before they will download successfully.

❗ Don’t assume all CPE100 revisions are identical.

Hardware revisions ABAA, ABAB, ABAC, ABAD, and later revisions introduced firmware changes and additional features. Match the complete catalog number whenever possible.

⚠️ Verify PROFINET device names before powering up.

Replacing the controller without restoring the correct PROFINET configuration can leave every remote I/O station offline even though the controller itself appears healthy.

❗ Back up the controller before replacing it.

Save the project, hardware configuration, IP addressing, and firmware information before removing the original CPU. Ten minutes of preparation can prevent several hours of commissioning work.

Frequently Asked Questions (FAQ)

Q1. What is the primary function of the ?

It is a standalone PACSystems RSTi-EP programmable automation controller that executes IEC 61131-3 control logic while managing distributed Ethernet and PROFINET I/O.

Q2. Which programming software is required?

The controller is programmed using GE Proficy Machine Edition (PME). Minimum PME versions depend on the installed controller firmware.

Q3. Does the controller include an embedded PROFINET controller?

Yes. The includes an integrated PROFINET controller along with multiple Ethernet interfaces for distributed industrial networking.

Q4. Can I replace an older CPE100 with this model?

Usually yes, provided you verify the hardware revision, firmware level, application compatibility, and PME software version. Firmware mismatches are one of the most common causes of commissioning delays.

Q5. Is this controller hot-swappable?

No. The controller should be powered down before replacement. Removing the CPU while energized can interrupt communications with every connected remote I/O station.

Q6. Why is surplus inventory often less expensive than buying directly from the OEM?

Many surplus units originate from canceled projects, plant expansions, or unused maintenance inventory. A reputable supplier should provide serial-number traceability, documented functional testing, and warranty coverage rather than simply reselling unverified hardware.

Q7. What warranty is typically available?

Most industrial automation suppliers provide a 12-month warranty for functionally tested new surplus or professionally refurbished controllers. Before commissioning, verify the firmware revision, PME compatibility, Ethernet configuration, PROFINET device assignments, and application backup to minimize startup risk.
