GE Fanuc IC200PWR001G VersaMax 24VDC Power Supply Module

Description

Product Introduction

The GE Fanuc IC200PWR001G is a VersaMax power supply module used to feed backplane power to the CPU, NIU, and I/O modules. It takes 24VDC field power and converts it to the internal power needed by the rack.

This is not a glamorous part. It is a rack utility component, and when it weakens or fails, the whole system starts acting dead even though the logic, wiring, and field devices may still be fine. In the real world, that makes it one of the most important spare parts in a VersaMax cabinet.

Key Technical Specifications

Application Scenarios & the “Trench” Experience

A control rack looks dead, but nobody trusts the first diagnosis because the CPU lights are off and the field devices are still powered separately. That is the trench problem with power supplies: they fail quietly, then take the whole cabinet with them.

• Manufacturing – VersaMax rack power – Needed because the CPU and I/O need stable backplane power.
• Process plants – Local controller cabinets – Needed when a 24VDC supply feeds the control rack internally.
• Retrofit work – Legacy GE rack support – Needed when the original supply must be replaced without redesigning the system.
• Utilities – Remote control panels – Needed for compact racks that run off 24VDC field power.
• Machine skids – Small PLC cabinets – Needed when rack power must stay simple and serviceable.

A realistic replacement case: a packaging line went down because the VersaMax rack lost backplane power after a supply fault. Operators saw a dead controller, but the field power and devices were still healthy. Swapping in a verified IC200PWR001G restored the rack immediately and avoided a larger controls teardown.

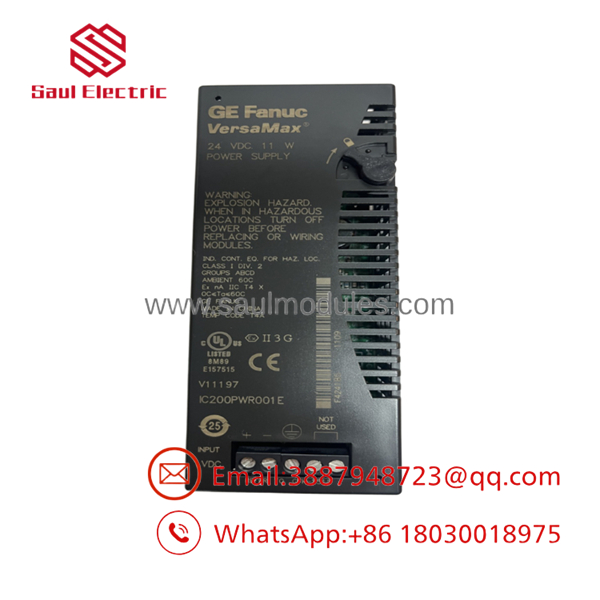

IC200PWR001G

IC200PWR001G

Transparency SOP: Quality Assurance & Testing

We do not just ship boxes; we test them on actual GE Fanuc racks.

• Inbound Inspection: Check the part number, revision label, terminal condition, and any sign of heat or electrolyte damage.
• Live Rig Testing: Power the module in a matching rack and verify output stability and rack startup behavior.
• Electrical Parameter Checks: Confirm 24VDC input behavior, 5VDC backplane output, and load stability.
• Firmware Verification: Record the exact revision where available and verify label-to-test match.
• Final QC & Anti-static Packaging: Release only after functional validation, then pack it in ESD-safe material.

The Veteran’s Tech Trap Guide

• ⚠️ Don’t chase the CPU first. A dead rack often comes from the power module, not the controller.
• ❗ Verify the DC grounding method. This family expects the DC negative to be handled correctly.
• ⚠️ Check the revision suffix. G, H, J, and other revisions can matter in old racks.
• ❗ Inspect for heat stress. Power supplies age from thermal load long before they fail outright.

Frequently Asked Questions

Q: Is the IC200PWR001G hot-swappable?
A: No. Treat it as a powered-down replacement unless your exact rack documentation says otherwise.

Q: What does this module do?
A: It provides 24VDC input power and supplies 5VDC backplane power for VersaMax CPU, NIU, and I/O modules.

Q: How much output current does it provide?
A: Up to 1.5A.

Q: What protections are built in?
A: Short-circuit, overload, and reverse-polarity protection.

Q: Why is this cheaper than direct OEM stock?
A: Because it usually comes from surplus or secondary-market inventory, not a fresh OEM production run. Lower price only makes sense if the part is actually tested.

Q: Is it fake or refurbished?
A: You should not assume either way. The honest answer is to verify labels, revision, condition, and rack test results.

Q: What warranty is reasonable?
A: Twelve months is common for tested industrial surplus, but the test log and traceability are the real value.
