Description
Product Introduction
The GE Fanuc IC670MDL640 is a high-density 16-channel discrete input module engineered for GE’s modular Field Control distributed I/O architecture. Designed to read digital field devices—such as limit switches, pushbuttons, photo-eyes, and proximity sensors—this module converts 24 VDC field signals into digital status bits for transmission across a Field Control station backplane to a central PLC.
Mounting directly onto a Field Control Terminal Block (such as the IC670TBX001 or IC670CHS001), the IC670MDL640 supports both positive logic (sourcing input / sinking field device) and negative logic (sinking input / sourcing field device) wiring configurations. Onboard optical isolation protects sensitive backplane electronics from high-voltage field transients and ground noise.
Key Technical Specifications
| Parameter | Specification |
| Manufacturer | GE Fanuc / Emerson |
| Part Number | IC670MDL640 |
| System Compatibility | GE Field Control Station (Bus Header required) |
| Associated Terminal Base | IC670TBX001 / IC670CHS001 |
| Number of Inputs | 16 discrete channels (1 group of 16) |
| Nominal Input Voltage | 24 VDC (Operating Range: 11 to 30 VDC) |
| Logic Type | Positive (Sourcing) or Negative (Sinking) configurable by field wiring |
| Input Current | 7.0 mA per channel @ 24 VDC nominal |
| On-State Voltage / Current | 11.0 to 30.0 VDC / 3.2 mA minimum |
| Off-State Voltage / Current | 0.0 to 5.0 VDC / 1.5 mA maximum |
| Response Time | 1.0 ms typical (On to Off / Off to On) |
| Bus Power Consumption | 5 VDC @ 80 mA (from Field Control bus) |
Application Scenarios & The “Trench” Experience
It’s 3:15 AM at an automated packaging plant. A high-speed carton accumulation line halts unexpectedly. The central PLC program shows that none of the 16 proximity sensors on the main infeed conveyor are reporting signal presence, causing an upstream safety interlock fault. The root cause is a blown optocoupler array inside the aging IC670MDL640 input card caused by a sustained 24V short circuit during a sensor cable replacement.

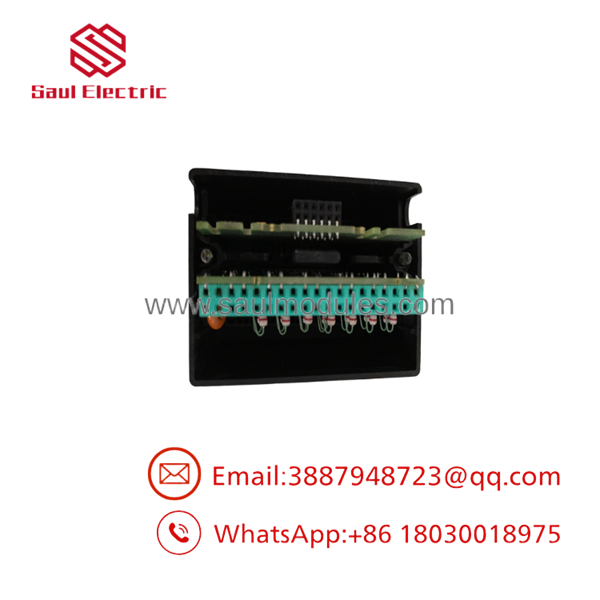

IC670MDL640

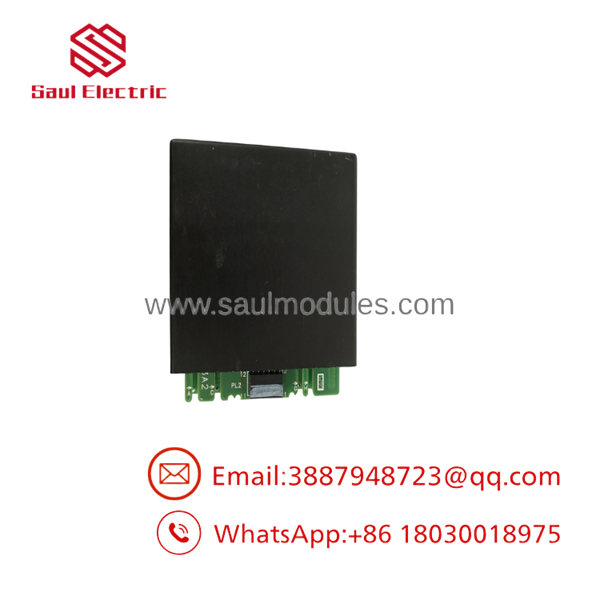

IC670MDL640

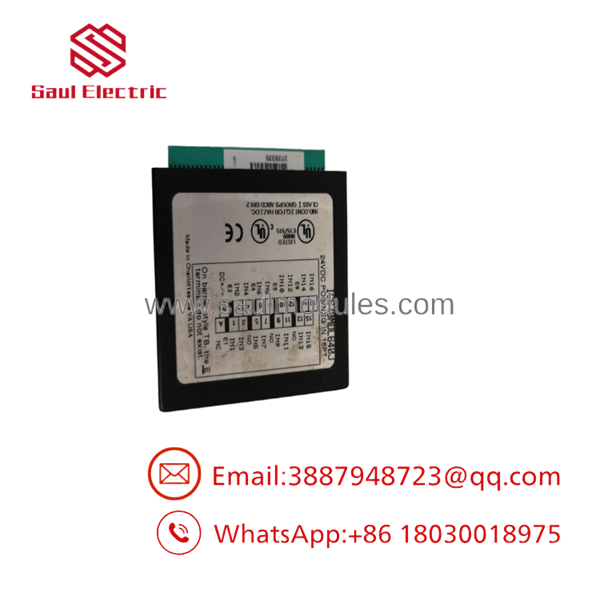

IC670MDL640
Primary Industrial Applications
- Material Handling & Conveyor Systems: Reads photo-eyes, pallet position switches, and belt misalignment sensors across long distribution lines.
- Automotive Stamping & Assembly: Monitors panel clamping switches, part-present sensors, and operator safety curtains.
- Water & Wastewater Treatment: Tracks digital status contacts from pump motor starters, level float switches, and manual local/remote selector switches.
- Food & Beverage Packaging: Monitors bottle cap detectors, star-wheel indexing proximity switches, and reject gate position sensors.
Field Case Study
A beverage bottling facility in Indiana experienced intermittent line stoppages due to input chatter on an aging Field Control rack. Instead of performing a complete control cabinet retrofit—which would require replacing the Bus Header, re-pulling field cables, and updating PLC software—the maintenance technician swapped out the faulty module for a pre-tested surplus IC670MDL640. Because Field Control electronics snap directly off wiring bases without disturbing terminal screws, the replacement card was installed and running in under 5 minutes.
Transparency SOP: Quality Assurance & Testing
Every IC670MDL640 module undergoes functional screening on active Field Control test rigs:
- Connector & Housing Inspection: Check of edge pins, casing snap latches, and internal PCB traces for signs of thermal stress, mechanical damage, or contact oxidation.
- Base Engagement Verification: Seating the card onto an active terminal base (IC670TBX001) linked to a Field Control Bus Header to confirm backplane communications and power initialization.
- 16-Channel Signal Cycle Test: Injecting 24 VDC signals into all 16 input channels individually and simultaneously to confirm optical isolation health and rapid on/off state switching.
- Logic Mode Validation: Testing both positive logic (sourcing) and negative logic (sinking) wiring setups across channel banks to ensure full field compatibility.
- ESD Packaging & Protection: Clearing configuration registers, placing the module inside an anti-static ESD shielding bag, and packing with custom foam cushioning.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Trap 1: Pay Attention to Sinking vs. Sourcing Field Wiring!
The accepts both positive and negative logic, but all 16 channels share a common return reference. If you wire half of your field switches as sinking (switching ground) and the other half as sourcing (switching +24V) on the same module, you will short out your 24 VDC field supply. Keep field sensor wiring types consistent across the module.
❗ Trap 2: Check Input Threshold Voltages on Long Cable Runs.
The module requires a minimum of 11.0 VDC @ 3.2 mA to register a solid “ON” state. On long field cable runs (over 300 feet), voltage drops across thin-gauge sensor wiring or high contact resistance on old mechanical limit switches can drop the terminal voltage below 11V, causing the PLC to miss high-speed input pulses.
⚠️ Trap 3: Respect Bus Header I/O Point Limits.
Field Control Bus Headers (such as Genius, Profibus, or DeviceNet headers) impose strict limits on total discrete I/O points per remote node. Adding multiple 16-point modules like the can consume available bit allocations. Always verify your node memory map in Proficy Machine Edition.
❗ Trap 4: Never Pull Module Casing Without Releasing Base Latches.
While Field Control allows module replacement, pulling the electronics casing off its terminal base without releasing the top and bottom snap latches can bend or snap the delicate connector pins linking the card to the backplane.
Frequently Asked Questions (FAQ for Conversion)
Q: Can I replace the without disconnecting field wiring?
A: Yes! Field Control separates the electronics module () from the terminal wiring base (IC670TBX001). You can unlatch and pull the top module straight off the base without unwiring any field terminal screws.
Q: What is the difference between and IC670MDL740?
A: The is a Discrete Input module (reads 24 VDC signals from field sensors), whereas the IC670MDL740 is a Discrete Output module (sends 24 VDC signals to field actuators like solenoids and relays).
Q: Does the require an external 24 VDC power supply?
A: The module draws 5 VDC logic power from the backplane, but the field devices (switches, sensors) connecting to the inputs must be powered by an external 24 VDC field power supply wired to the terminal base common terminals.
Q: Why choose pre-tested surplus modules over replacing the entire drop?
A: Upgrading a Field Control drop requires migrating network gateways, replacing wiring bases, redrawing panel schematics, and rewriting PLC program files. Dropping in a pre-tested replacement restores machine operation in minutes at a fraction of the cost.
Q: What warranty comes with this module?
A: Every module includes a full 12-month functional replacement warranty. If any channel or internal component experiences failures under normal operating conditions within 365 days, we replace it immediately.
