GE Fanuc IC693ALG223 Series 90-30 Current Input

Description

Product Introduction

The GE Fanuc IC693ALG223 is a 16-channel analog current input card built for Series 90-30 PLC racks. It handles standard 4 to 20 mA and 0 to 20 mA field signals, translating analog sensor data—like pressure, flow, and temperature—into digital values that the CPU can execute in logic loops.

Unlike 4-channel or 8-channel cards, this unit doubles channel density within a single rack slot, saving precious backplane real estate in packed control cabinets. It incorporates optical isolation to protect sensitive logic electronics from ground loops and field noise spikes.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

At 2:15 AM, a municipal water treatment facility lost flow telemetry across four main chemical dosing lines. An electrical storm caused a ground potential surge, frying two channels on an old input card. Tank levels began rising rapidly while dosing pumps ran unmonitored. With an environmental spill threat looming, the duty engineer needed an exact replacement module on the rack fast.

Application Scenarios

• Water & Wastewater – Dosing & Flow Monitoring: Collects 4-20mA signals from electromagnetic flowmeters and ultrasonic level transducers to maintain precise chemical feed logic.
• Oil & Gas – Wellhead Pressure Telemetry: Aggregates multi-point pressure readings across manifold lines into a single Series 90-30 rack without extra expansion bases.
• Power Generation – Temperature Monitoring: Converts 4-20mA signals from temperature transmitters across turbine bearing arrays for closed-loop safety monitoring.
• Chemical Processing – Storage Vessel Monitoring: Reads hydrostatic head pressure transmitters across storage tanks to manage automated filling valves and high-level trips.

Field Case Study

A paper converter in Ohio ran into an unexpected channel failure on their web-tension control line. The installed IC693ALG223 dropped two load-cell feedback channels, triggering a hard safety trip that halted production at an estimated 8,500 per hour. We pulled a factory-tested surplus IC693ALG223 from stock and overnighted it to the plant. The technician racked the card in, verified backplane communication, and restored line speed before the morning shift started—saving the facility over 60,000 in extended downtime.

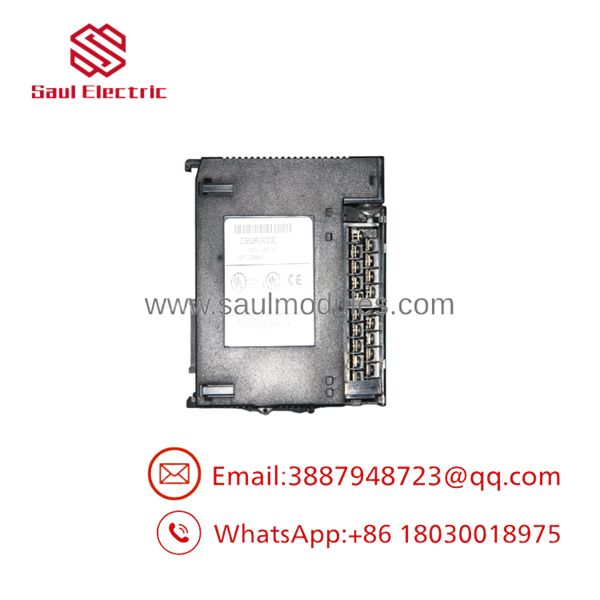

IC693ALG223

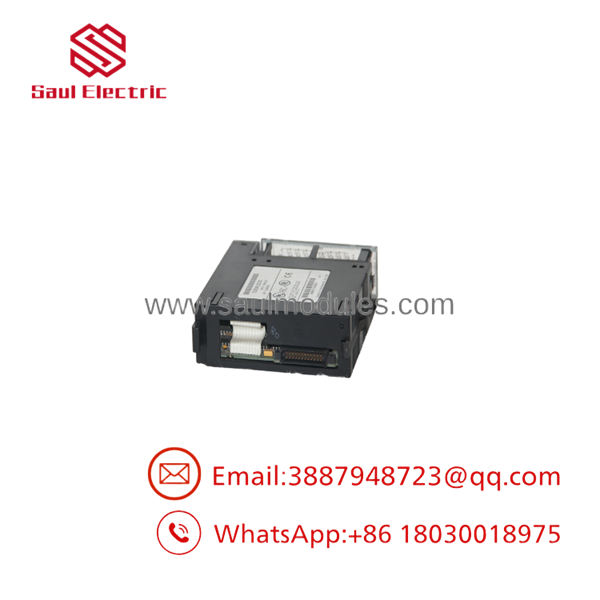

IC693ALG223

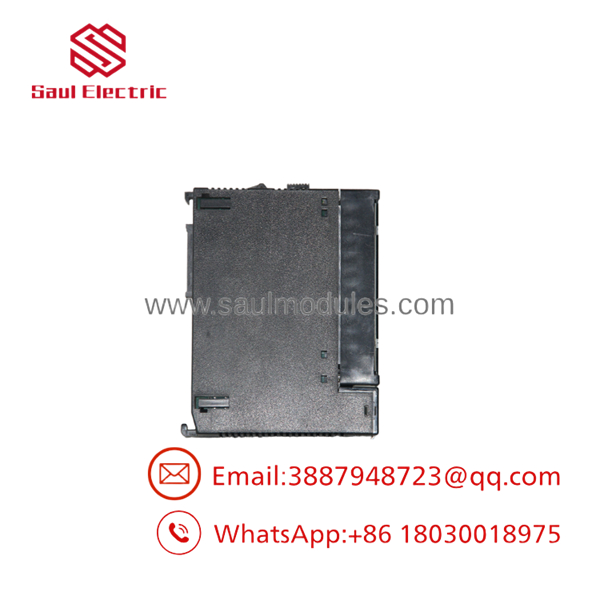

IC693ALG223

Transparency SOP: Quality Assurance & Testing

We don’t just move boxes; we test every IC693ALG223 module on working GE Series 90-30 racks before shipment.

1. Inbound Inspection: Thorough visual check for housing fractures, bent backplane pins, terminal strip wear, and OEM serial/revision match.
2. Live Rig Testing: Slotted into an active GE Series 90-30 baseplate (IC693CHS391) running alongside an IC693CPU374 processor and IC693PWR330 power supply.
3. Electrical Calibration: Connected to a calibrated Fluke 773 loop calibrator across all 16 channels to verify input accuracy at 0mA, 4mA, 12mA, and 20mA.
4. Thermal Soak & Isolation Test: 4-hour continuous run under full loop power load to screen for thermal drift or failing optocouplers.
5. Final QC & Packaging: Cleared of error flags in Proficy Machine Edition, sealed in ESD-safe shielding bags, and packed with custom foam inserts.

The Veteran’s Tech Trap Guide

• ⚠️ External Loop Power Required: This module does not supply 24V loop power to 2-wire transmitters out of its terminal block pins. It only provides internal 250-ohm sensing resistors. If you wire a passive 2-wire transmitter directly without a 24V DC power supply in series, your channel reading will sit dead at zero.
• ❗ Do Not Hot-Swap Under Power: The GE Series 90-30 backplane does not support hot-swapping! Pulling or inserting this module while the rack power supply is energized can arc the backplane pins, corrupt CPU memory, or destroy the multiplexer chips on the card. Kill rack power first.
• ⚠️ Unused Channel Interference: Floating or un-jumpered channels on this high-density card can register cross-talk noise or throw open-wire diagnostic flags in the CPU table. Short out unused channel terminals or disable them in the hardware configuration software.
• ❗ Terminal Block Alignment: When replacing an older revision card, verify that the removable terminal block seats completely. A loose screw connector clip can cause intermittent 4-20mA signal drops that will drive you crazy during troubleshooting.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE Fanuc IC693ALG223 hot-swappable?

A: No. Pulling this module live while the baseplate is powered can arc the backplane pins and corrupt system memory. Always shut down power to the rack before replacing the card.

Q: How do I configure channels between 4-20mA and 0-20mA input ranges?

A: Range configuration is done completely through software in Proficy Machine Edition or Logicmaster 90. There are no DIP switches or physical jumpers on the circuit board for range selection.

Q: Can I connect 0-10V voltage signals directly to this card?

A: No. The IC693ALG223 features internal 250-ohm current-sensing resistors built for current loops. For voltage inputs, you need an IC693ALG220 or IC693ALG221 module.

Q: Are revision letters (e.g., Rev A, Rev F, Rev K) interchangeable?

A: Yes. All hardware revisions of the share the same physical form factor, terminal assignments, and software configuration parameters, making them drop-in replacements for one another.

Q: What warranty comes with this surplus module?

A: Every unit comes with a full 12-month replacement warranty. We source original surplus and plant-spares through verified industrial channels, allowing us to offer factory-reliable stock at a fraction of original OEM list prices.
