Description
Product Introduction
The GE Fanuc IC693PWR322F is a standard 30-Watt DC-input power supply module engineered specifically for GE Series 90-30 PLC systems. Occupying the dedicated left-most power supply slot on any CPU, expansion, or remote baseplate, it converts incoming 24 VDC or 48 VDC plant power into regulated DC voltages required by the PLC CPU, option cards, and local field I/O devices.
The revision “-F” designation represents a mature hardware revision featuring updated internal surge protection, refined thermal management, and an integrated lithium battery housing for RAM memory retention. The IC693PWR322F provides three distinct DC outputs: a +5 VDC logic bus for backplane modules, a +24 VDC relay power bus for output coils, and an isolated +24 VDC power tap for 4-20mA loop transmitters or input sensors.
Key Technical Specifications
| Parameter | Specification |
| Full Part Number | IC693PWR322F (Revision F Hardware Spin) |
| Module Type | Standard 30W DC Baseplate Power Supply |
| Input Voltage Range | 18 to 56 VDC (Nominal: 24 VDC or 48 VDC) |
| Input Power Demand | 50 Watts maximum at full load |
| Total Output Rating | 30 Watts total continuous output capacity |
| +5 VDC Output (Logic) | Up to 15 Watts (3.0 Amps max) to backplane bus |
| +24 VDC Relay Output | Up to 15 Watts (0.6 Amps max) for internal relay coils |
| +24 VDC Isolated Output | Up to 20 Watts (0.8 Amps max) for external field loops |
| Battery Port | Standard 3V Lithium Battery connector for RAM CPU retention |
| Status Indicators | PWR (Power), OK (CPU/System Status), RUN, BATT (Low Battery) |
| Terminal Connector | 6-screw terminal strip (Input V+, V-, Frame Ground, 24V Iso Out) |
Application Scenarios & The “Trench” Experience
At 3:10 AM during a shift change on an off-grid mining conveyor station, a sudden voltage dip on the main 24V DC battery bank caused the existing power supply to shut down. When DC line power was restored, the “PWR” LED on the rack power module remained unlit—a high-voltage inductive spike during the line restoration had blown the primary internal fuse on the legacy power module. The entire material handling loop stood dead, delaying truck loading and costing thousands per hour in equipment idle time.
Application Scenarios
- DC-Powered Mobile & Remote Racks: Ideal for mobile machinery, marine vessels, oil/gas skids, and solar/battery-powered remote terminal units (RTUs) operating on 24V or 48V DC power grids.
- Substation Control Enclosures: Powered directly from utility-grade 48VDC stationary battery banks without needing an AC inverter step.
- Heavy-Duty Conveyor & Mining Automation: Provides isolated 24VDC loops for field-mounted photoelectric eyes, limit switches, and proximity sensors in high-noise environments.
- Redundant DC Control Cabinets: Integrates seamlessly into industrial control panels where dual 24VDC power supplies feed local PLC racks for fault tolerance.
Field Case Study
A wastewater pumping skid in Arizona lost telemetry when an internal component short in their old power supply tripped the local DC breaker. We dispatched a bench-tested, pre-cleared surplus IC693PWR322F module via hot-shot courier. The site technician isolated input power, unclipped the terminal cover, transferred the wired power leads, swapped the module out of the left-most slot, reconnected the CPU backup battery, and powered up the rack. Full 5V backplane logic and 24V sensor bus loops were fully restored within 10 minutes of arrival.

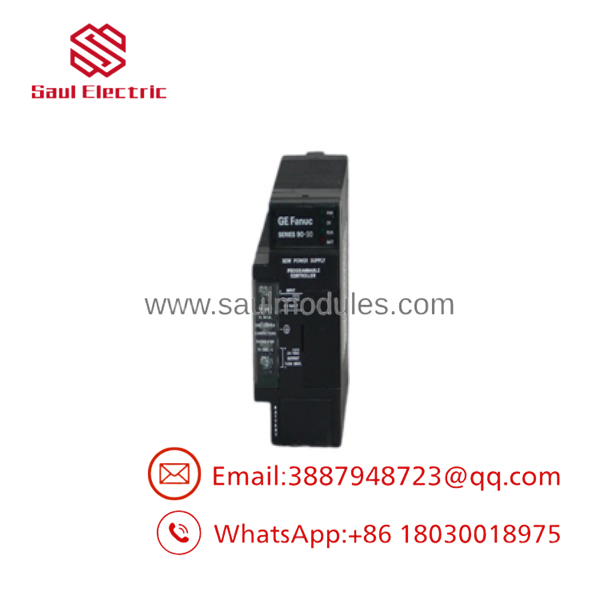

IC693PWR322F

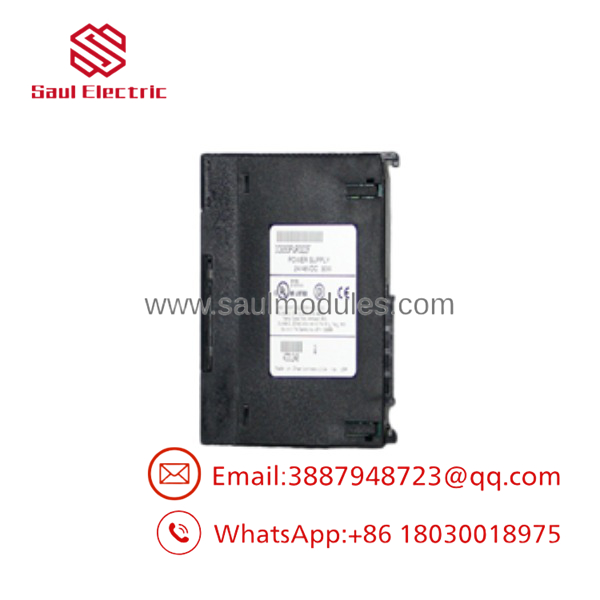

IC693PWR322F

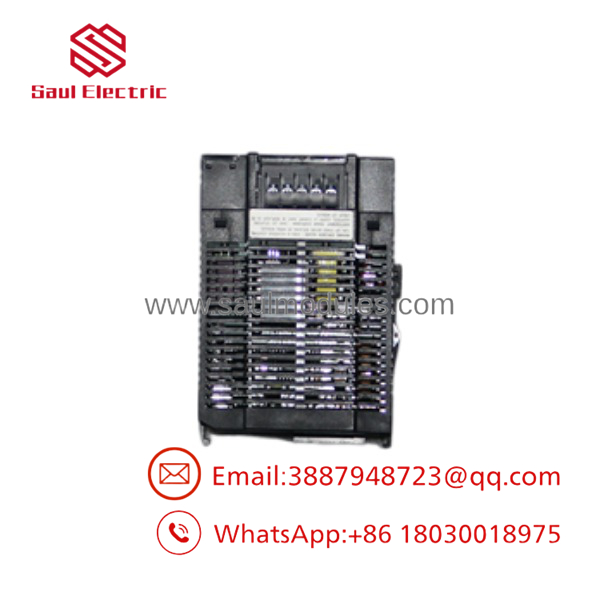

IC693PWR322F
Transparency SOP: Quality Assurance & Testing
We test every IC693PWR322F module under continuous full-load conditions on active GE test racks before it enters our ready-to-ship inventory.
- Inbound Visual Verification: Inspection for chassis damage, terminal screw thread wear, backplane connector alignment, and OEM revision label authenticity.
- Input Voltage Tolerance Sweep: Powered the module across its entire input voltage range (18 VDC to 56 VDC) using a programmable DC power source to ensure stable startup under low-voltage conditions.
- Full-Load Thermal Soak Test: Loaded all three DC outputs simultaneously (3A on +5V logic, 0.6A on +24V relay bus, 0.8A on +24V isolated output) for 4 hours inside a thermal test chamber to verify zero thermal drift or voltage drop.
- Battery Retention & LED Checks: Verified proper battery circuit voltage pass-through to CPU memory backup pins and verified operation of PWR, OK, RUN, and BATT status LEDs.
- ESD Sealing & Final QC: Unit cleaned, terminal screws secured, and module sealed inside heavy-duty anti-static ESD shielding with custom impact-resistant protective packaging.
The Veteran’s Tech Trap Guide
- ⚠️ Calculate Your 5V Backplane Current Budget: The IC693PWR322F delivers a maximum of 3.0 Amps (15 Watts) on the +5 VDC backplane bus. High-density analog cards, Ethernet cards (like IC693CMM321/NIU004), and option modules draw heavy 5V current. If your total rack card consumption exceeds 3.0A, you must upgrade to the high-capacity IC693PWR331 power supply (30W @ +5V).
- ❗ Disconnect CPU Backup Battery Before Removal: The CPU memory backup battery is plugged directly into the front connector of the ! Before pulling the power supply module out of the rack, ensure you transfer or back up CPU memory, or swap the battery carefully to prevent clearing user ladder logic in CPU volatile RAM.
- ⚠️ Never Hot-Swap Power Modules: The GE Series 90-30 backplane is not hot-swappable! Inserting or removing the while line voltage is present can arc backplane power pins and permanently damage attached CPU and I/O cards. Always disconnect incoming DC power first.
- ❗ Observe Input Polarity Carefully: Wiring DC input power backwards (reversing V+ and V- on the input terminal strip) can blow the module’s non-user-serviceable internal input fuse or trip primary circuit breakers.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the GE Fanuc hot-swappable?
A: No. You must turn off incoming DC power before removing or installing the module to prevent electrical damage to the backplane and connected I/O cards.
Q: What is the primary difference between IC693PWR321 and IC693PWR322?
A: The IC693PWR321 is an AC-input power supply (120/240 VAC or 125 VDC), whereas the IC693PWR322 is a DC-input power supply designed specifically for 24 VDC or 48 VDC power sources.
Q: What does the “-F” suffix on mean?
A: The “-F” suffix denotes a specific hardware revision level. Revision F modules feature enhanced noise suppression components and updated internal voltage regulator circuitry compared to earlier revisions (-A through -E).
Q: Will replacing my power supply cause the PLC CPU to lose its program?
A: The PLC program is retained by the 3V lithium battery attached to the front of the power supply module. If the CPU has stored its program to non-volatile Flash memory (Flash ROM), the program is safe. If relying on RAM, ensure you keep the battery plugged in or keep the rack backed up before replacing the power supply.
Q: What warranty coverage comes with this surplus power supply?
A: Every module comes backed by a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, thoroughly inspected, cleaned, and bench-tested under full 30W DC load prior to shipment.
