Product Introduction
The GE Fanuc IC697CPU781-JD is a single-slot central processing unit designed for mid-to-large-scale industrial control applications using the Series 90-70 PLC platform. Built around a 16 MHz 32-bit 80386DX processor paired with 512 Kilobytes of battery-backed CMOS RAM, the CPU781-JD handles discrete logic, analog loops, and complex system diagnostics across VMEbus backplanes.
The “-JD” revision designation signifies updated board component revisions and firmware compatibility updates over earlier revisions (like -AA, -CA, or -FC). Operating in Slot 1 of a standard Series 90-70 main rack, it communicates seamlessly with local and remote Genius I/O, Ethernet modules, and expansion racks, providing a proven, ultra-reliable controller for legacy automation systems.
Key Technical Specifications
| Parameter | Value |
| Processor Type | 16 MHz 32-bit 80386DX Microprocessor |
| User Logic Memory | 512 KB Battery-Backed CMOS RAM |
| Boolean Execution Speed | 0.4 µs per boolean function |
| I/O Capacity | Up to 12,000 Discrete I/O, 8,000 Analog I/O points |
| Floating-Point Math | Integrated math execution capabilities |
| Backplane Standard | VMEbus Architecture (Series 90-70 Rack Slot 1) |
| Serial Ports | 1 RS-232 / RS-485 SNP programming port (via terminal board) |
| Memory Retention | Lithium battery backup on module front panel |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Power Consumption | Draws power from +5 VDC line on 90-70 power supply |
Application Scenarios & The “Trench” Experience
When a main processor module on a critical process loop experiences memory corruption or internal hardware failure, all connected VME racks go into hold/fault state—stopping material lines, pump stations, or assembly cells instantly.
- Heavy Manufacturing Lines – Managing automated stamping presses, transfer lines, and conveyor interlocks across legacy automotive plants.
- Chemical & Refining Racks – Controlling batching sequences, valve manifolds, and multi-channel analog temperature/pressure loops.
- Wastewater Treatment Systems – Running main lift station pump controls, aerators, and chemical dosing systems across multi-rack Series 90-70 architectures.
Field Case Study: A municipal water treatment facility suffered an unrecoverable memory fault on an aging IC697CPU781 module following a severe site power surge. With the station dropped into manual bypass, engineers sourced a replacement IC697CPU781-JD. Because the “-JD” revision maintains complete backwards-compatibility with existing software programs, engineers inserted the card into Slot 1, connected a fresh battery, restored the ladder logic backup via PAC Machine Edition, and had the primary filtration loops running automatically in under two hours.

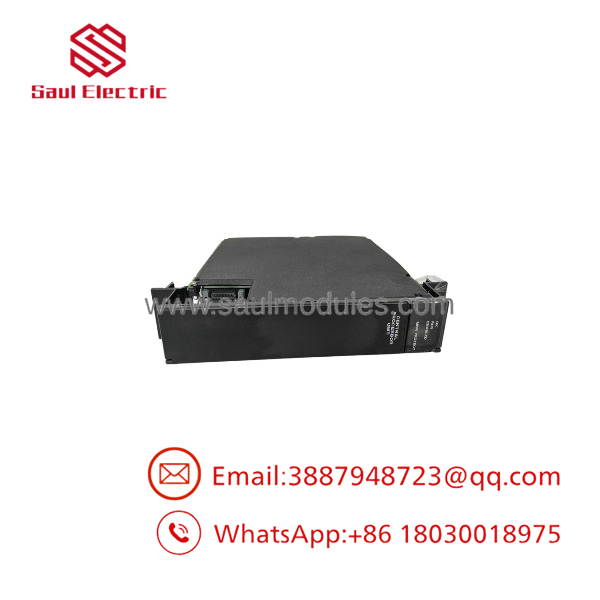

IC697CPU781-JD

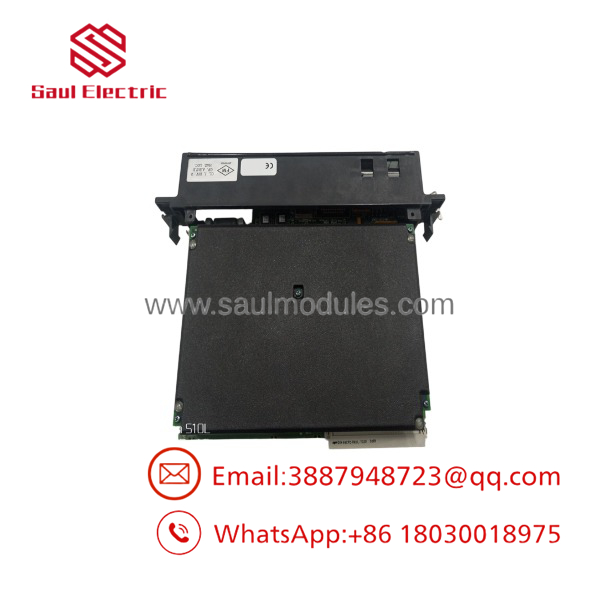

IC697CPU781-JD
Transparency SOP: Quality Assurance & Testing
Testing legacy Series 90-70 VME central processors requires a dedicated test rack, active memory retention verification, and real-time communication stress runs.
- Inbound Mechanical Check: Inspect VME gold backplane pin arrays, faceplate insertion latches, battery contacts, and OEM serial/revision stickers.
- Post & Boot Diagnostic: Install into Slot 1 of an IC697 main chassis, verify Power-On Self Test (POST) LED sequences, and clear fault logs.
- Memory Integrity Test: Load a full 512KB diagnostic test program into RAM, perform multiple power-cycle checks with a fresh lithium battery, and verify zero memory corruption.
- Active Bus Communications: Connect over SNP serial and poll active Genius Bus Controllers (IC697BEM733) and Ethernet cards under a 100% simulated scan load.
- Anti-Static Packaging: Disconnect the memory battery prior to transit to prevent premature discharge, seal in an ESD shielding bag, and package in dense foam padding.
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ Slot 1 Requirement: Like all Series 90-70 CPUs, the IC697CPU781-JD MUST be seated in Slot 1 (the far-left slot) of the main rack. Installing it in an expansion rack or secondary slot will prevent backplane bus initialization.
❗ Connect the Lithium Battery Before Download: CMOS memory in the CPU781 relies on a front-mounted 3V lithium battery to retain the program when power is removed. If you download your program without a connected, healthy battery, turning off the rack breaker will permanently wipe the program memory!
⚠️ Firmware Revision Matching (-JD): When swapping out older CPU781 revisions (such as -AA or -BA), ensure your programming software (VersaPro, Logic Developer, or LM90) has hardware definitions compatible with Revision JD features to avoid configuration mismatch warnings during download.
Frequently Asked Questions (FAQ)
Q: Can I use the IC697CPU781-JD in a Series 90-30 or RX3i rack?
A: No. The IC697CPU781-JD uses the larger VMEbus standard and is designed strictly for Series 90-70 main chassis.
Q: How do I connect my laptop to the IC697CPU781-JD for programming?
A: You need an IC690USB901 (USB to SNP converter cable) or an RS-232/RS-485 converter connected to the SNP port on the front terminal block using VersaPro, LM90, or PAC Machine Edition (Logic Developer) software.
Q: Is the still produced by GE or Emerson?
A: No. The Series 90-70 family has reached end-of-life status. Fully tested pre-owned or New Surplus modules are the standard path for maintaining current operating hardware.
Q: What is the difference between CPU781 and CPU782 modules?
A: The CPU781 generally features 512 KB of user memory, whereas the CPU782 provides 1 MB of memory for larger control programs requiring expanded register tables.
Q: What warranty is included with this CPU?
A: All new surplus and fully bench-tested pre-owned modules supplied by our warehouse carry a full 12-month replacement warranty.
