GE Fanuc IC697MDL653 Series 90-70 24V DC Input Module

Description

Product Introduction & Engineering Value

Managing high-density discrete signals inside legacy Series 90-70 racks often leads to high power consumption and crowded field wiring. The GE Fanuc IC697MDL653 solves this by packing 32 optically isolated 24V DC inputs into a single double-width VME module space.

Because the inputs are grouped into four independent banks of eight points with separate commons, you can easily intermix positive (sinking) and negative (sourcing) field logic on the same card. Configuring input filter times and point behavior is handled soft-style inside VersaPro or Proficy Machine Edition, removing the hassle of setting physical jumpers or DIP switches on the circuit board.

Technical Specifications

• Module Type: High-Density Discrete Input Card
• Number of Inputs: 32 Points (4 isolated groups of 8 points each)
• Nominal Input Voltage: 24 Volts DC (Operating range: 10 to 30 VDC)
• Logic Type: Sinking or Sourcing (Positive/Negative Logic)
• Backplane Current Consumption: 0.3 Amps @ +5V DC
• Input Current Draw: 7.0 mA per point typical @ 24 VDC
• ON State Voltage Range: 10 to 30 VDC
• OFF State Voltage Range: 0 to 5 VDC
• Response Time: Configurable (1ms to 100ms via software; default 1ms)
• Isolation: 1500V RMS group-to-group and group-to-backplane
• Status Indicators: 32 green point status LEDs + 1 MODULE OK LED

Field Application & The “Trench” Experience

During an unexpected midnight outage at an automotive stamping plant, an aging 120V AC input module on a metal press safety rack failed after a transient voltage spike bridged two internal channels. The line needed immediate retrofitting to accept modern 24V DC optical safety curtains and proximity sensors.

The maintenance team replaced the old card with an IC697MDL653. By utilizing the card’s 4 isolated groups, they wired the 24V DC safety light curtains to Groups A & B while maintaining isolated 24V DC auxiliary power for proximity switches on Groups C & D. The high-density card got all 32 sensor feeds back online in under an hour without requiring an additional expansion chassis.

Target Application Scenarios:

• High-Speed Packaging Machinery: Capturing fast-acting photo-eye triggers with 1ms input response times.
• Material Handling Conveyor Hubs: Monitoring hundreds of discrete limit switch states across multi-zone sorting lanes.
• Chemical Skid Safety Systems: Interfacing explosion-proof 24V DC pressure and level switches directly into Series 90-70 CPU logic.

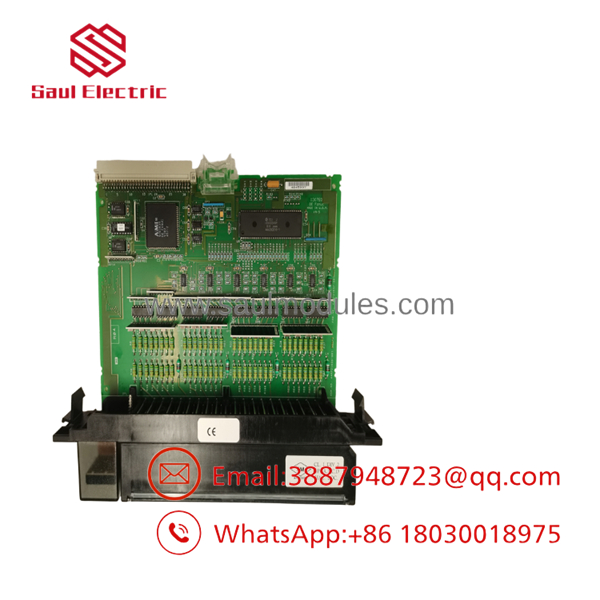

IC697MDL653

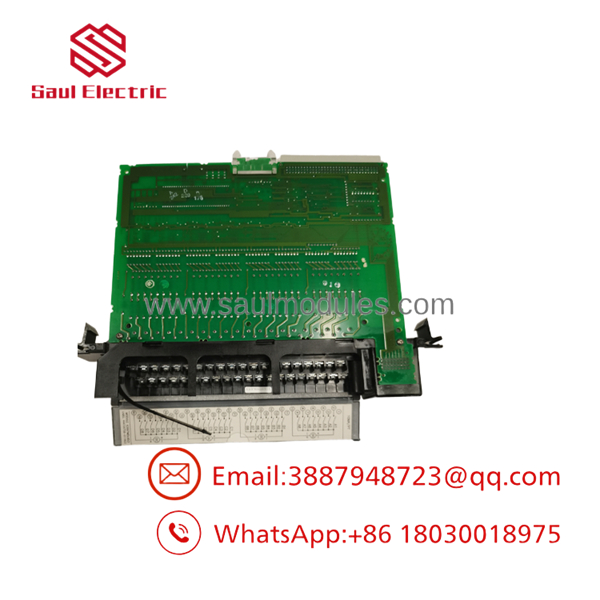

IC697MDL653

Transparency SOP: QA & Testing

Every IC697MDL653 module coming through our inventory goes through rigorous, hands-on bench validation on an active Series 90-70 testing setup:

1. Terminal Block & Board Inspection: Edge connectors, optical isolators, and solder traces are examined under magnification for physical wear, corrosion, or thermal stress.
2. Current Draw Check: Plugs into an active VME rack slot to verify the board maintains the rated 0.3A nominal draw on the +5V bus.
3. 32-Point High-Voltage Stress Loop: Every single input point (0 through 31) is toggled continuously across the full 10V to 30V DC range using a test rig to verify clean switching logic and LED operation.
4. Group Isolation Verification: 1500V dielectric insulation checks are performed between input groups to ensure field transients won’t bridge isolated commons.

The Veteran’s Tech Trap Guide

⚠️ COMMON CONNECTOR POLARITY: Each of the 4 groups has its own isolated common terminal. If you are mixing positive and negative logic on the same module, double-check your terminal wiring before applying power—shorting group commons together bypasses optical isolation and can cause signal crosstalk!

⚠️ BLANK SLOT INTERRUPT JUMPERS: If you mount the IC697MDL653 in a rack with empty slot positions between it and the CPU, ensure the empty slots have Blank Slot Interrupt Jumpers (IC697ACC722) installed. Missing jumpers break the backplane bus interrupt chain and prevent the card from clearing initialization.

PRO TIP: If you notice intermittent input chatter in noisy industrial environments, use your PLC configuration software to increase the digital filter time from 1ms to 10ms or 20ms on specific channels. This suppresses field noise without adding physical RC filters to your terminal blocks.

Dynamic FAQ

Q: Can I mix 24V DC sinking and sourcing inputs on the same module? A: Yes! Because the card features 4 separate, isolated groups of 8 points, you can wire one group for sinking logic and another for sourcing logic using separate power supplies if required.

Q: Does this module require a field power supply to illuminate the LEDs? A: Yes. The individual input status LEDs are powered directly by the incoming field voltage (minimum 10 VDC) on each channel, while the MODULE OK LED is powered by the backplane.

Q: How do I change the input response filter times for this card? A: Filter times are set entirely in software (Logicmaster 90-70, VersaPro, or Proficy Machine Edition) within the module’s hardware configuration table. There are no physical jumpers to set on the board.

Q: What condition is your stock in, and what warranty is included? A: We stock both New Surplus and fully reconditioned units. Every card is rig-tested and backed by our standard 2-year full replacement warranty.

Q: Can I replace an while the PLC rack is powered up? A: No. Hot-swapping modules in Series 90-70 racks is strictly prohibited. Always de-energize the rack before pulling or inserting cards to prevent backplane damage.
