Description
Product Introduction & Engineering Value
Operating legacy automation panels with dead visual output leaves field operators completely blind to process states, often forcing premature and costly HMI overhauls. The GE GESPAC GESVDU-1D-8946 Video Display Unit board provides direct, high-purity video generation across specialized Eurocard/VMEbus system racks.
Designed to offload graphic processing directly from the main CPU card, this module handles character generation, graphic pixel maps, and real-time screen refresh buffers without clogging system bus bandwidth. Its ruggedized Eurocard footprint and industrial temperature tolerance guarantee crisp video rendering in harsh mill and power plant environments.
Technical Specifications
| Parameter | Specification |
| Board Form Factor: | Single-Slot Eurocard / VMEbus Card |
| Video Controller Processor: | Hardware graphic controller with onboard text character generator |
| Video Memory: | Integrated VRAM frame buffer for continuous screen refresh |
| Display Outputs: | Analog RGB, Composite Video, TTL Sync (DB-9 / Coaxial connectors) |
| Supported Resolutions: | Standard legacy industrial display modes (640×480, 800×600 monochrome/color) |
| Bus Interface: | Standard backplane pin-and-socket Eurocard connector |
| Power Requirements: | +5 VDC directly off backplane power rail |
| Operating Temperature: | -20°C to +65°C (-4°F to +149°F) |
Field Application & The “Trench” Experience
The Trench Story: A specialized glass bottle manufacturing line went down when its primary annealing furnace console went pitch black. The main CPU was executing logic normally, but the original GESVDU display driver board suffered a catastrophic video controller failure due to years of cabinet heat buildup. Installing a bench-tested GESVDU-1D-8946 replacement board, setting the video sync DIP switches to match the local industrial CRT monitor, and powering up restored the operator screen instantly—avoiding a full $100k HMI migration project.
Niche Application Scenarios
- Legacy Power Station Operator Consoles: Drives process-mimic display screens on older generator and boiler control desks.
- Automated Packaging Line HMI Units: Generates text and graphical status displays for standalone VMEbus-based packaging machines.
- CNC Machining Center Display Drivers: Interfaces controller processing boards directly to rugged shop-floor video monitors.

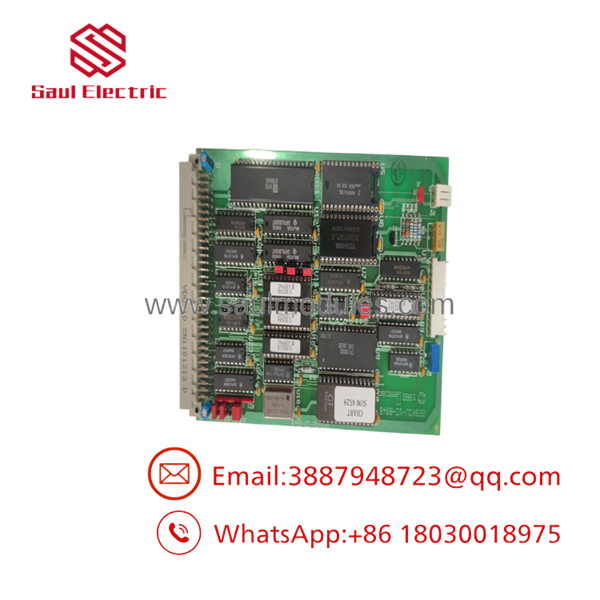

- GESVDU-1D-8946

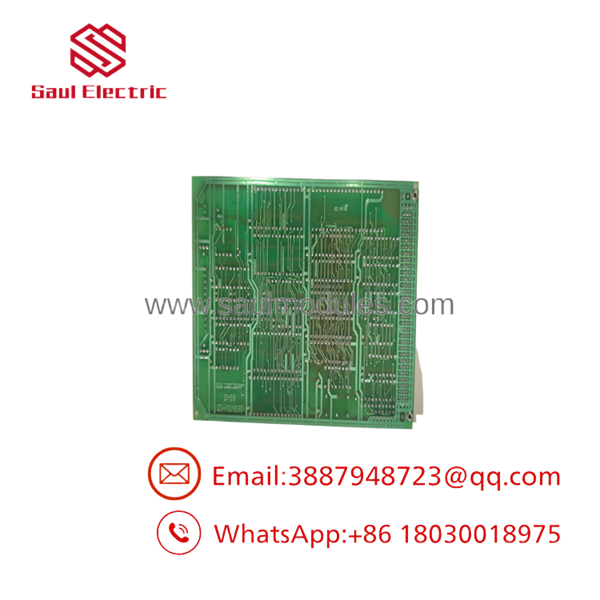

- GESVDU-1D-8946
Transparency SOP: QA & Testing
- Backplane & Component Inspection: Microscopic audit of card-edge solder joints, socketed IC integrity, and VRAM memory chip pins for thermal stress or corrosion.
- Voltage Rail Bench Verification: Static resistance testing across the +5V bus power pins to prevent backplane shorts prior to energizing.
- Video Output & Pattern Testing: Rack-testing the card against an industrial test monitor using high-bandwidth oscilloscopes to verify RGB signal level balance and sync pulse timing.
- Heat-Chamber Stress Cycle: Running continuous text and graphic refresh loops in a elevated-temperature enclosure to rule out intermittent video dropouts.
- Cleanroom ESD Packaging: Board surface cleaning followed by vacuum packaging in static-shielded anti-static bags with fresh desiccant.
The Veteran’s Tech Trap Guide
- ⚠️ Check Video Sync DIP Switches / Jumpers: The GESVDU-1D-8946 supports multiple display sync standards (e.g., Composite Sync vs. Separate Horizontal/Vertical Sync). Never plug a replacement board into a monitor without verifying that the video DIP switches match your existing display unit—incorrect sync signals will result in an unreadable, scrambling display image!
- PRO TIP: Inspect Female Backplane Socket Pins: Because Eurocard backplanes use high-density pin/socket arrangements, repeatedly pulling and re-inserting cards can bend backplane pins or loosen socket contact pressure. Inspect the chassis slot carefully before pushing the board home.
- ⚠️ Do Not Swap Under Power: The GESVDU-1D-8946 does not feature hot-swap protection circuitry. Removing or inserting this module while the chassis power supply is active can induce voltage transients across the VME bus, corrupting CPU RAM or destroying the video controller IC.
Dynamic FAQ
Q: Is the a standard PC-compatible graphics card?
A: No. The is an industrial Eurocard/VME-bus video display board engineered specifically for legacy GESPAC and GE embedded control architectures, not standard PCI or PCIe PC slots.
Q: What display types can be connected to the ?
A: It connects to industrial CRT monitors and early-generation flat panel displays using RGB, TTL, or composite video interfaces, depending on onboard connector pinouts.
Q: Does this module require software drivers to be loaded on the CPU board?
A: The board contains hardware-level character and graphic display controllers. However, your host system OS (such as OS-9 or proprietary RTOS) must point its display output drivers to the card’s assigned memory address base.
Q: How are your surplus units packaged for transit?
A: All units are fully bench-tested, cleaned, wrapped in anti-static ESD shielding bags, and shipped in high-density foam packaging to prevent physical pin damage.
Q: What warranty coverage comes with this module?
A: Every board is covered by our standard 12-month full replacement warranty covering video generation, memory stability, and bus communication.
