Description
Product Introduction & Engineering Value
The GE IC3600EPSV1C is an EPSV-series board from GE’s IC3600 family of legacy turbine-control electronics. This generation of hardware is still encountered in installed Mark I systems, where maintaining the original control architecture can be necessary to keep aging equipment operational.
Power-supply boards deserve a different replacement procedure from ordinary interface cards. Before installing the IC3600EPSV1C, verify the incoming supply, protection devices, board configuration, and downstream load. A failed power board can be the result of another electrical problem rather than the original cause.
Technical Specifications
Manufacturer: General Electric (GE)
Product Family: IC3600
Control Platform: Mark I
Board Designation: EPSV
Part Number: IC3600EPSV1C
Board Type: Power supply / control electronics board
Revision: V1C
Primary Role: Control-power circuitry within compatible GE equipment
Typical Installation: Legacy GE turbine-control cabinet
Application: Mark I turbine control and associated industrial control equipment
Lifecycle: Legacy / obsolete-generation hardware
Replacement Requirement: Exact part-number and electrical-configuration verification
Electrical Ratings: Must be confirmed from the applicable GE system documentation
Engineering caution: Publicly available information for the exact IC3600EPSV1C configuration is limited. Do not infer input voltage, output rails, current capacity, fuse ratings, terminal assignments, or other electrical values from the part number. Use the original GE documentation and cabinet drawings for those parameters.
Field Application & the “Trench” Experience
A maintenance team is preparing an older turbine for startup after an extended outage. The control cabinet shows unstable control power, and inspection identifies the installed board as an IC3600EPSV1C.
The technician checks the cabinet power path before touching the board. Incoming voltage is measured, protection devices are inspected, and downstream loads are checked for abnormal conditions. Only after the external power path is cleared does the team compare the replacement EPSV board with the original.
That sequence prevents a common maintenance mistake: replacing a power board without identifying the electrical condition that caused it to fail.
Specific application scenarios
- GE Mark I turbine control cabinets: Maintaining control-power circuitry in legacy turbine installations.
- Turbine startup systems: Replacing aging EPSV hardware during scheduled outage work.
- Legacy GE spare-parts programs: Holding an inspected IC3600EPSV1C for emergency recovery of an aging control system.
Transparency SOP: QA & Testing
A suitable New Surplus unit should pass a controlled inspection before shipment:
- Identity verification — Confirm and all visible board markings.
- PCB inspection — Examine connectors, components, solder joints, terminal points, and edge contacts.
- Power-circuit inspection — Check visible fuses, capacitors, transformers, regulators, and other power-related components for physical damage where applicable.
- Configuration review — Compare jumpers, switches, and hardware options with the removed board.
- Controlled electrical test — Where a proper IC3600 test setup is available, verify input/output behavior under controlled conditions.
- Load testing — Where technically appropriate, evaluate the supply under a representative load rather than relying only on an unloaded voltage measurement.
- ESD-safe packaging — Protect the board during storage and transportation.
For refurbished inventory, request the actual repair and testing scope. “Powered on successfully” is not a complete power-supply test.

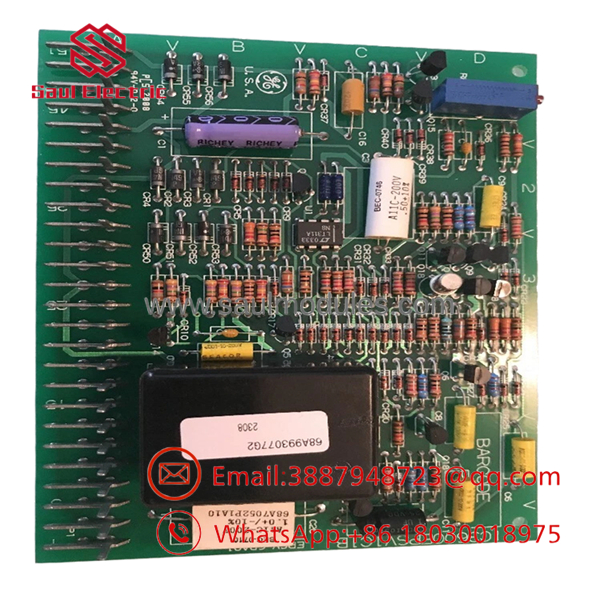

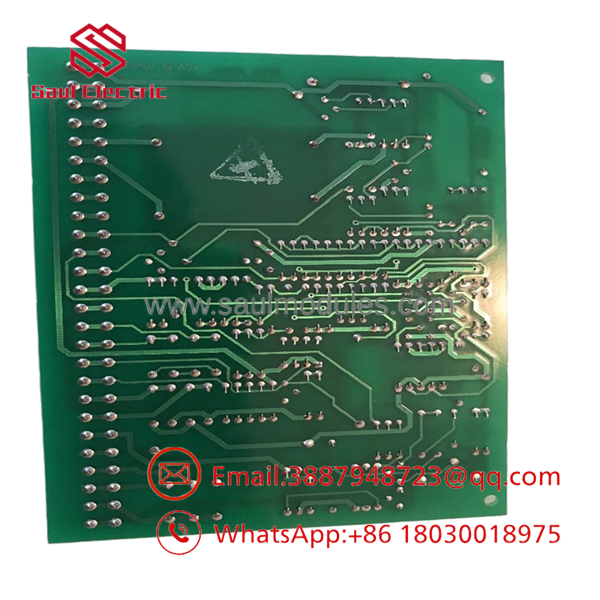

IC3600EPSV1C
IC3600EPSV1C
The Veteran’s Tech Trap Guide
⚠️ Trap #1 — Replacing the board before checking the load
A shorted downstream circuit or abnormal cabinet load can destroy a replacement power board. Troubleshoot the complete power path first.
⚠️ Trap #2 — Assuming the supply output is correct because one voltage measures normally
Power-supply health is determined by the required outputs and their behavior under the appropriate load. Check all relevant rails according to the equipment documentation.
PRO TIP: Record the original board’s configuration before removal. With legacy GE hardware, undocumented field modifications are common enough to make photographs and maintenance records valuable.
⚠️ Trap #3 — Mixing IC3600 boards based on physical fit
A board that fits the cabinet is not necessarily electrically compatible. Match the complete part number and system documentation.
Dynamic FAQ
What is the GE ?
The is a GE EPSV-series power-supply/control board associated with the legacy IC3600 and Mark I turbine-control hardware family.
Is used in GE Mark I systems?
It is associated with GE’s legacy IC3600/Mark I control hardware. The exact cabinet application should be verified against the equipment drawings for the specific installation.
Can another power board replace it?
Not automatically. Verify input and output requirements, configuration, connector arrangement, board revision, and host-system compatibility before substitution.
What should I check before installing this board?
Check the incoming power, cabinet protection devices, downstream loads, board configuration, connectors, and the exact identification. Do not energize a replacement until the cause of the original power fault has been investigated.
How do I verify New Surplus condition?
Request photographs of the actual , including its identification markings and component side. Confirm whether it is unused, previously installed, or refurbished, and ask for any available electrical test documentation.
What warranty should I expect?
Warranty terms vary by supplier and condition. For a critical turbine-control spare, confirm warranty duration, functional-test coverage, DOA provisions, return conditions, and commissioning support before purchasing.
