Description
Product Introduction
The GE IC3600LSRB1 is a specialized speed sensor interface board designed for first- and second-generation GE Speedtronic (Mark I and Mark II) gas and steam turbine control panels. Installed within the analog control rack, it serves as the critical entry module for speed measurement signals coming directly from magnetic reluctance pickups mounted on the turbine shaft.
Turbine technicians relying on legacy Mark I/II systems know that precise speed sensing is the single most critical parameter for overspeed protection and governor control. The LSRB card uses passive resistor-capacitor networks, high-reliability diodes, and transistor arrays to filter out ambient electromagnetic interference (EMI) and electrical noise riding on raw speed pickup lines, delivering clean, proportional pulse signals to down-stream analog speed control cards.
Key Technical Specifications
| Parameter | Specification / Value |
|---|---|
| Part Number | IC3600LSRB1 (e.g., IC3600LSRB1A) |
| System Compatibility | GE Speedtronic Mark I & Mark II Turbine Control Systems |
| Board Type | Reluctance Speed Sensor / Pulse Conditioning Board (LSRB) |
| Input Channels | Passive magnetic pickup / reluctance speed transducer inputs |
| Signal Processing | High-frequency noise suppression filtering & wave shaping |
| Form Factor | Single-sided phenolic card with heavy-duty pin-style edge contacts |
| Component Layout | Discrete axial resistors, film capacitors, and semiconductor drivers |
| Operating Temperature | 0°C to +60°C (32°F to +140°F) |
Application Scenarios & The “Trench” Experience
It’s 2:00 AM at a remote pipeline compressor station powered by a classic GE Frame 3 gas turbine. The unit trips suddenly during load changes due to an erroneous “Turbine Overspeed” alarm. The physical turbine shaft speed is normal, but high electrical noise from a nearby battery charger is bleeding into the speed transducer wiring. An aging filter capacitor on the original IC3600LSRB1 card failed to dump the high-frequency noise spikes, tricking the analog governor into seeing a false speed spike. Swapping in a bench-tested IC3600LSRB1 card restores full signal filtering, eliminating the phantom trip and getting the compressor back online.
- Legacy Gas Turbine Drives – GE Frame 3 / Frame 5 Turbines – Processing primary turbine shaft speed feedback for analog governor cards.
- Industrial Steam Turbines – Co-generation & Mechanical Drives – Conditioning speed pickup signals for valve positioning loops.
- Pipeline Compressor Stations – Unmanned Remote Turbines – High-reliability pulse conditioning in environments with heavy electrical noise.
Transparency SOP: Quality Assurance & Testing
Because the IC3600 series represents early-generation Speedtronic hardware, every module undergoes strict bench verification before shipping:
- Visual & Structural Audit: Inspect phenolic PCB base for hairline cracks, check edge connection pins for bending or oxidation, and inspect axial components for solder joint fatigue.
- Passive Component Sweeps: Test onboard capacitors and resistors using calibrated meters to confirm components haven’t drifted out of original tolerance bands.
- Signal Injection Test: Inject simulated sinusoidal speed pickup signals across input channels. Verify output wave shaping, noise attenuation, and frequency linearity.
- ESD & Protective Packaging: Enclose in static-shielding bags with desiccant and place in custom foam containers to prevent pin damage during transit.

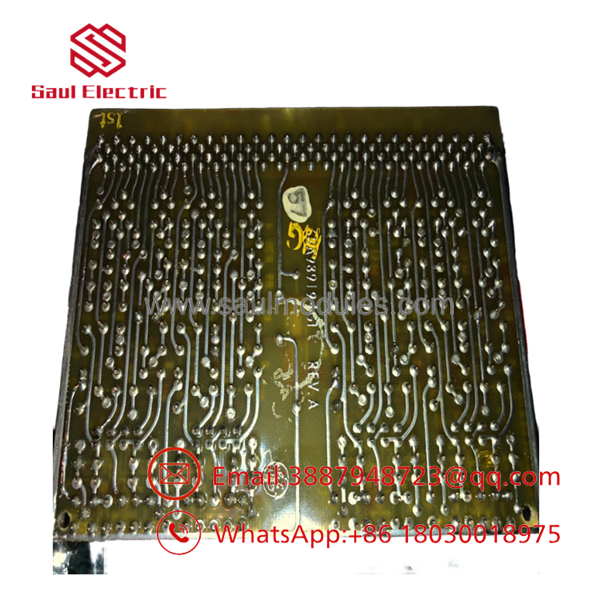

IC3600LSRB1

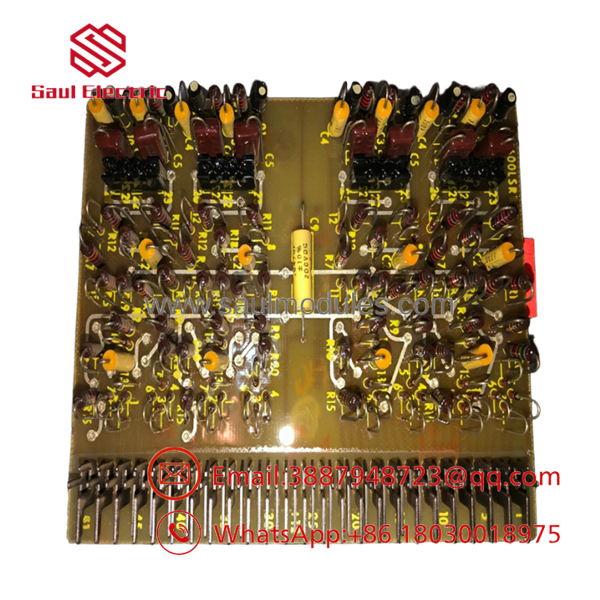

IC3600LSRB1
The Veteran’s Tech Trap Guide (Crucial Value-Add)
⚠️ 1. Inspect Edge Connector Pin Alignment Carefully!
Unlike later Mark IV cards that use modern edge connectors, the IC3600 series uses individual stiffener pins along the bottom edge. When sliding the card into the rack slot, ensure every pin aligns perfectly with the backplane socket. A bent pin can short adjacent signal channels or break off completely inside the socket!
❗ 2. Watch Out for Component Thermal Aging
Due to the age of Mark I and Mark II panels, passive components (especially older electrolytic or film capacitors) can drift over decades of operation. If you observe speed signal chatter on a live system, inspect the card for discolored resistors or leaking capacitors before placing it into service.
⚠️ 3. De-energize Rack Logic Power Before Removal
Never pull or insert an IC3600 card while the rack chassis is powered. Plucking cards under power can cause transient voltage spikes across adjacent backplane pins, risking damage to sensitive analog components on neighboring boards.
Frequently Asked Questions (FAQ for Conversion)
Q: Is the IC3600LSRB1 hot-swappable?
A: No. Removing a speed sensor interface card while the turbine is running interrupts speed feedback to the governor, causing an immediate emergency shutdown. Always execute full LOTO procedures before replacing this module.
Q: What is the difference between IC3600LSRB1A and IC3600LSRB1B?
A: The trailing letter indicates minor artwork or component revision levels made during production runs. In almost all Mark I and Mark II speed conditioning slots, LSRB1A and LSRB1B are directly interchangeble.
Q: Is this unit new or refurbished, and what warranty covers it?
A: We supply this module as New Surplus stock (unused factory original surplus). Every unit includes our full 12-month operational replacement warranty.
