3. Key Technical Specifications
- Part Number: IC660ELB912J
- Function: Micro Genius Network Interface Daughterboard
- Compatibility: Attaches to PCIM (IBM PC Interface Module)
- Network: Genius I/O bus communications
- Memory: Supports shared RAM and onboard memory
- Power: 5 VDC, low current consumption
- Features: Enables PC to Genius I/O network connectivity
- Mounting: Plugs into single or dual-slot PCIM
- Operating Temperature: 0°C to 60°C (typical)
- Application: Industrial automation, data acquisition, and control
- Backward Compatibility: Works with existing Genius blocks
4. Product Introduction & Supply Chain Strategy
The GE IC660ELB912J is a Micro Genius Network Interface Card that serves as a daughterboard for connecting IBM-compatible PCs or hosts to the Genius I/O network via PCIM modules. It facilitates high-speed data exchange in distributed control systems.
New Surplus units help maintain operational continuity for installed Genius I/O bases without full system replacement. This approach minimizes lead time risks, supports vendor consolidation, and reduces total cost of ownership by delivering reliable performance versus refurbished alternatives prone to communication faults.
5. Installation & Configuration Guide
Stage 1: Pre-Installation (Prep & Safety) Lock-out/tag-out power to the host system. Use ESD protection and photograph the existing PCIM setup, board seating, and cabling. Note current Genius bus parameters.
Stage 2: Removal Power down the PCIM module. Carefully remove the old daughterboard from its slot without damaging connectors.
Stage 3: Installation (Clone & Seat) Align and insert the new IC660ELB912J firmly into the PCIM slot. Ensure secure connection and reinstall any retaining hardware.
Stage 4: Power-On & Testing Restore power to the host. Verify Genius bus communication through diagnostic software. Test data exchange with connected I/O blocks and confirm network integrity.

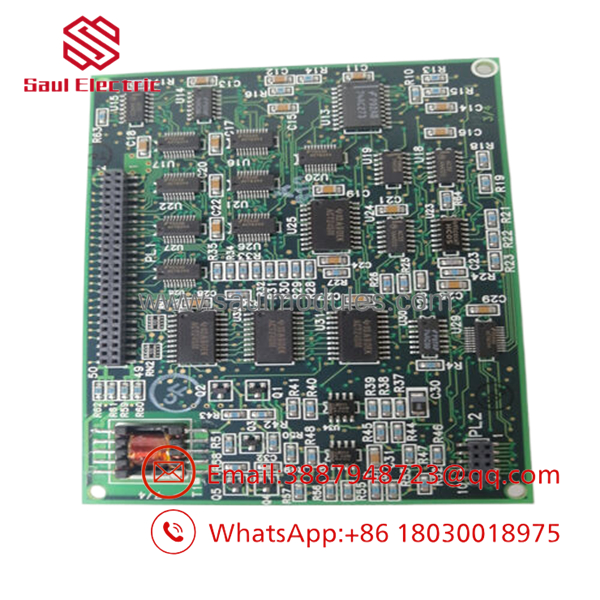

- IC660ELB912J

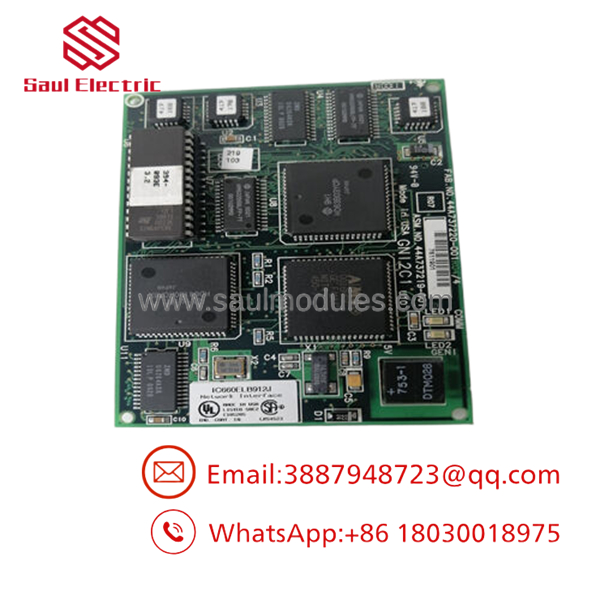

- IC660ELB912J
6. Firmware/Software Versions & Upgrade Notes
The IC660ELB912J is a hardware interface and does not contain field-upgradable firmware. Compatibility depends on the host PCIM module and Genius system software.
Ensure host drivers and configuration software match the Genius network requirements. No specific upgrade risks for the interface card itself, but validate overall system communication after installation.
7. Frequently Asked Questions (FAQ)
Yes. This is original GE stock, never deployed, and fully tested for reliable Genius network operation.
Q: Why select New Surplus for Genius interface cards? Communication interfaces are critical for data flow. Refurbished cards risk intermittent bus errors that disrupt I/O updates and control functions.
Q: Is this component obsolete? Genius I/O is a mature platform. Keep spares on hand to support existing installations efficiently.
Q: What host module does it attach to? It functions as a daughterboard on single-slot or dual-slot PCIM (IBM PC Interface Module) cards.
Q: What warranty is provided? We offer a 1year warranty on this New Surplus interface card for defects and communication performance.
Q: Does it require special configuration? Configuration occurs primarily on the host side and Genius bus. The card enables the physical and protocol interface.
Q: Can it support redundant networks? Genius systems support various redundancy options. Confirm your overall architecture when planning replacements.
