Product Introduction & Engineering Value
After years of commissioning and troubleshooting legacy PLC systems, one lesson becomes obvious: stable analog outputs are just as important as accurate analog inputs. A drifting output card can send perfectly healthy control loops into unnecessary maintenance cycles.
The GE IC693ALG392 is an 8-channel analog current/voltage output module for the Series 90-30 PLC platform. Each channel can be configured independently for voltage or current operation, making the module suitable for mixed-process applications involving control valves, variable frequency drives, chart recorders, and other analog-controlled equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Intelligent Platforms |
| Model | IC693ALG392 |
| Product Family | Series 90-30 |
| Module Type | Analog Current/Voltage Output |
| Number of Outputs | 8 single-ended channels |
| Voltage Output Ranges | 0 to +10 VDC, -10 to +10 VDC |
| Current Output Ranges | 0 to 20 mA, 4 to 20 mA |
| Resolution | 15–16 bits (range dependent) |
| Update Rate | Approximately 8 ms (all channels) |
| External Supply | 20–30 VDC (24 VDC nominal) |
| Backplane Supply | +5 VDC |
| Isolation | Optical isolation between field wiring and PLC backplane |
| Open-Wire Detection | Supported during current-output operation |
| Installation | Any Series 90-30 I/O slot |
Field Application & The “Trench” Experience
During the startup of a solvent recovery unit, operators noticed that several control valves were responding slowly even though the PLC logic appeared correct. Maintenance initially suspected sticking valve positioners, but field testing showed the actuators responded normally when driven by an external calibrator. The actual problem was an aging IC693ALG392 with unstable analog outputs on multiple channels. Once the module was replaced, all valve responses matched the commanded setpoints without modifying the PLC program.
Typical applications include:
- Catalytic cracking unit flow control
- Boiler feedwater valve positioning
- Variable frequency drive speed reference control
- Batch reactor chemical dosing
- Tank farm blending and ratio control

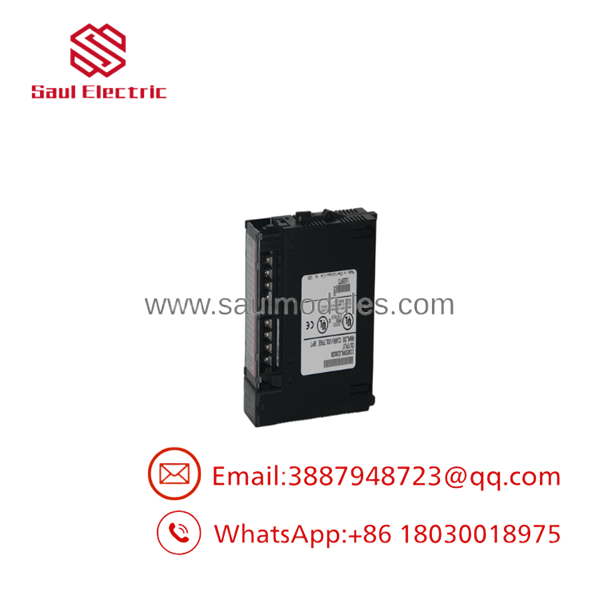

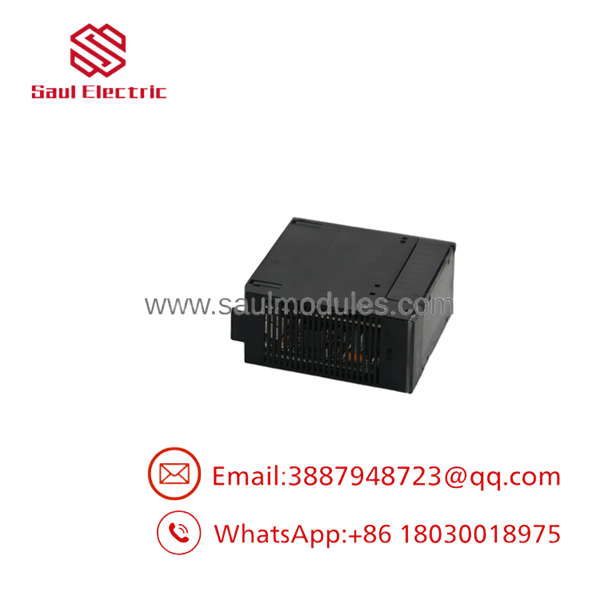

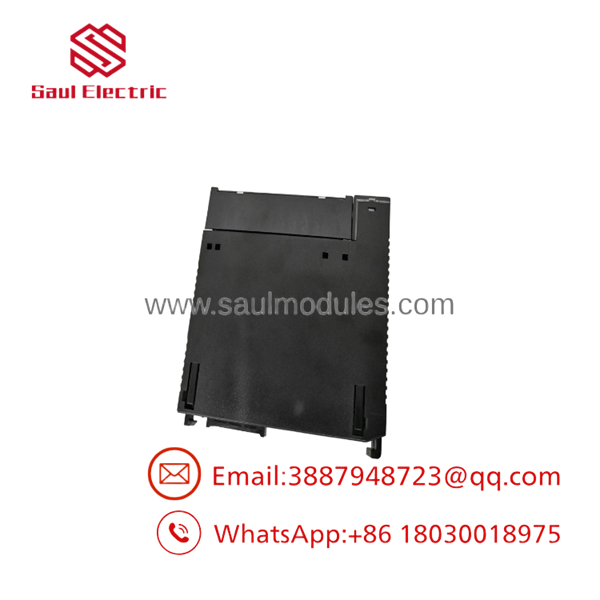

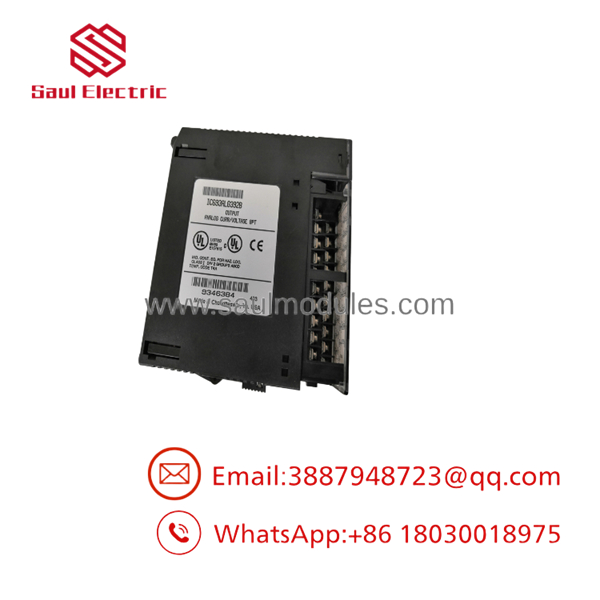

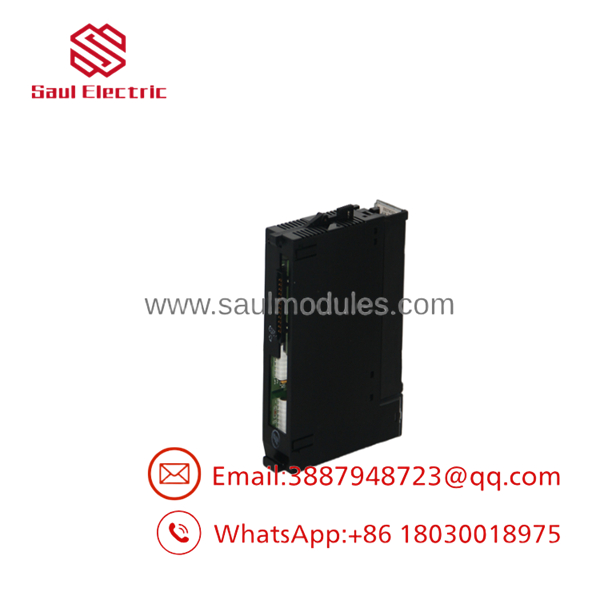

IC693ALG392
IC693ALG392
Transparency SOP: QA & Testing
Every module is evaluated before shipment through a documented inspection process.
- Verify part number, hardware revision, and identification labels.
- Inspect the housing, PCB, connector pins, and terminal interfaces for physical damage.
- Install the module in a Series 90-30 PLC test rack.
- Configure each output channel individually for voltage and current modes.
- Measure output accuracy using calibrated test instruments across all supported ranges.
- Verify open-wire diagnostics, channel response, and communication status.
- Package the module in ESD-safe materials with protective cushioning for transport.
For New Surplus inventory, packaging integrity and unused condition are verified. Refurbished units undergo additional functional testing before approval for shipment.
The Veteran’s Tech Trap Guide
⚠️ External 24 VDC Is Mandatory
The PLC backplane alone will not power the analog outputs. Without a stable external 20–30 VDC supply, the module cannot generate proper field signals.
⚠️ Every Channel Is Independently Configurable
One channel may be configured for 4–20 mA, while another is configured for ±10 V. Always verify the configuration before reconnecting field wiring after maintenance.
PRO TIP: Measure the actual output under load. An unloaded multimeter reading can appear correct while the connected valve positioner or drive receives an unstable signal due to wiring or power issues.
⚠️ Watch CPU Firmware Compatibility
Earlier Series 90-30 CPU firmware versions have specific configuration requirements for the module’s status inputs. Using an incorrect configuration may generate a Loss of Module fault during startup.
Dynamic FAQ
Q1. Can each output channel use a different signal type?
Yes. Each of the eight channels can be configured independently for 0–10 V, ±10 V, 0–20 mA, or 4–20 mA, providing flexibility for mixed analog applications.
Q2. Does the IC693ALG392 support open-wire detection?
Yes. When operating in current-output mode, the module can report open-wire faults to the PLC CPU, simplifying field diagnostics.
Q3. Can this module be installed in any Series 90-30 rack slot?
Yes. The module is designed for installation in any compatible I/O slot within a Series 90-30 PLC system, provided the system configuration supports the module.
Q4. Is programming required after replacement?
If the replacement module has the same part number and the existing hardware configuration is retained, PLC logic generally does not require modification. However, verifying channel configuration and analog scaling after installation is recommended.
Q5. Are New Surplus modules genuinely unused?
Yes. New Surplus inventory consists of unused OEM inventory that has never been commissioned in an operating system. Packaging condition may vary depending on storage history.
Q6. Is warranty coverage available?
Warranty terms depend on inventory condition and supplier policy. Request the warranty documentation and functional test report before ordering to ensure the module meets your maintenance or project requirements.
