GE IC693MDL240 Series 90-30 120V AC Input Module

Description

Product Introduction

The GE Fanuc IC693MDL240 is a 16-point 120 Volt AC Discrete Input Module engineered for Series 90-30 PLC systems. Occupying a single option slot on any primary, expansion, or remote baseplate, it accepts digital field signals from pushbuttons, limit switches, selector switches, and relay contacts operating on standard 120VAC control power.

Organized into two isolated groups of 8 points with a shared common per group, the IC693MDL240 features optical isolation between field wiring and the PLC backplane. A hinged door on the front face houses a 16-LED status array for visual point-by-point diagnostic verification during operation and maintenance troubleshooting.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

At 2:40 AM on a stamping line, the primary safety enclosure gate monitor lost input state handshakes to the central rack. The status LEDs for points 1 through 4 on the installed input module went completely dead—a loose, arcing neutral connection on the main 120VAC panel loop had sent a voltage transient through the field terminal block, frying the input optocouplers for group A. With the press safety system locked out, the entire transfer line was halted, accumulating downtime at thousands of dollars per hour.

Application Scenarios

• Industrial Safety Interlocks: Monitors physical limit switches, E-stop circuit feedback relays, and door interlock contacts.
• Motor Starter & Contactor Monitoring: Reads auxiliary contact feedback from NEMA/IEC motor starters to confirm operational status.
• Machine Operator Panels: Processes inputs from 120V selector switches, illuminated pushbuttons, and palm buttons on operator desks.
• Process Level & Pressure Switches: Interfaces discrete float switches, pressure transducers, and thermal limiters across plant utilities.

Field Case Study

A Midwestern grain handling facility suffered a sudden telemetry drop on their primary leg elevator control system. The legacy IC693MDL240 module experienced optocoupler array degradation due to long-term elevated ambient temperatures in the unconditioned control room, preventing the PLC from sensing bin high-level switches. We pulled a fully bench-tested, pre-cleared surplus IC693MDL240 module from stock and dispatched it via overnight courier. The plant electrician swung the removable terminal block over to the new module, slotted it into option slot 5, and restored full grain handling automation within 15 minutes of arrival.

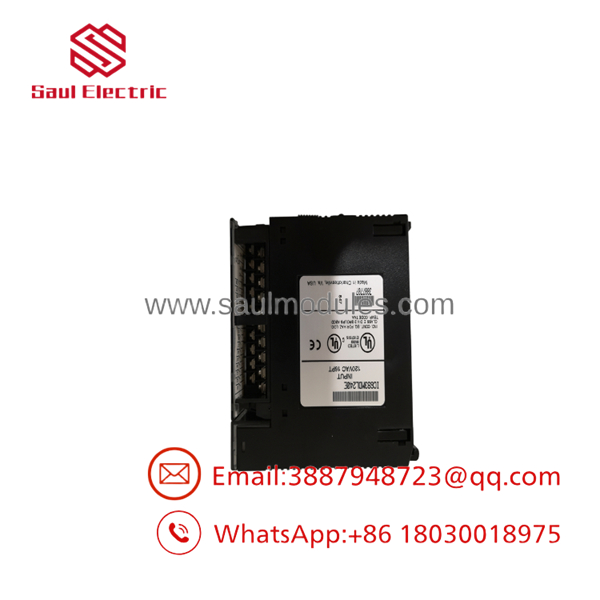

IC693MDL240

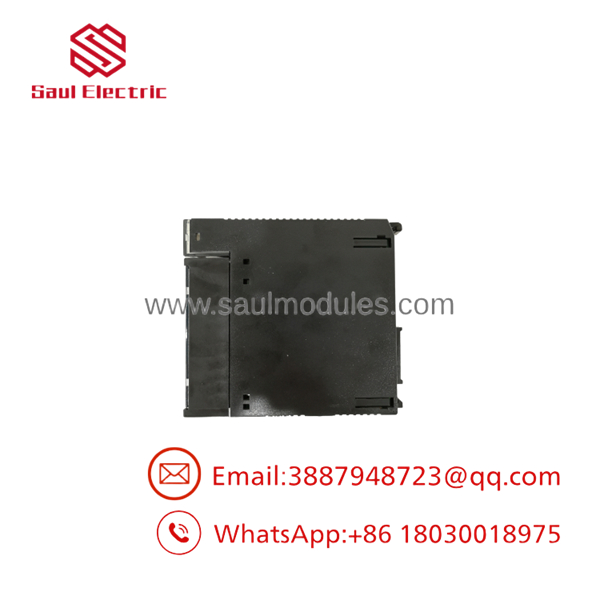

IC693MDL240

Transparency SOP: Quality Assurance & Testing

We test every IC693MDL240 module on live physical test racks before placing it into our ready-to-ship inventory.

1. Inbound Visual Verification: Inspection for casing fractures, bent card-edge backplane pins, broken terminal block retention latches, and OEM tag authenticity.
2. Backplane Power-On Check: Slotted into an active GE Series 90-30 rack (IC693CHS392 driven by an IC693PWR330 supply) to confirm power-up and backplane communication.
3. 16-Point Field Voltage Sweep: Applied a 120VAC test signal across all 16 channels individually and in groups to confirm threshold activation (ON at >80VAC, OFF at <20VAC) and LED status updates.
4. Thermal Soak & Stress Test: Subjected to continuous 120VAC input cycling for 4 hours inside a thermal chamber to ensure zero optocoupler drift or channel leakage under sustained thermal load.
5. ESD Sealing & Final QC: Cleaned, terminals verified, and sealed in heavy-duty ESD shielding with custom-molded protective packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Utilize the Removable Terminal Block: You do not need to unscrew your field wiring when replacing a failed ! The module features a 20-terminal removable block. Simply loosen the top/bottom retaining screws, pop off the wired terminal block, swap the card, and snap the block onto the new unit.
• ❗ Never Hot-Swap on the Baseplate: The GE Series 90-30 backplane is not hot-swappable! Inserting or pulling the while the baseplate power supply is turned on can arc backplane pins, corrupt logic scanning, or damage internal backplane transceivers. Always kill main power first.
• ⚠️ Verify Group Commons (Isolated Power Sources): The 16 points are divided into two distinct groups of 8 (Points 1–8 share Terminal 1, Points 9–16 share Terminal 11). If you are using different 120VAC control transformers for different machine zones, make sure not to bridge the commons between Group A and Group B.
• ❗ Mind the 30ms Input Delay Filter: AC input cards inherently feature RC input filter networks (~30 ms ON delay, ~45 ms OFF delay) to suppress 60Hz AC sine wave zero-crossing chatter. Do not use this module for high-speed pulse counting or microsecond registration sensing—use a High-Speed Counter (HSC) card instead.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE Fanuc hot-swappable?

A: No. You must turn off main power to the Series 90-30 baseplate before removing or installing the module to prevent backplane or chip damage.

Q: Can I use 24VDC signals on the ?

A: No. The is specifically designed for 120VAC nominal signals (80 to 132 VAC). For 24VDC inputs, you should use an IC693MDL645 or IC693MDL655 module.

Q: Do I have to re-wire my field connections when replacing this module?

A: No. The 20-position terminal block is fully removable. You can unlatch and remove the entire wired connector block and snap it directly onto the replacement module.

Q: What is the purpose of the LEDs on the front cover?

A: The front panel contains 16 green LED indicators (labeled 1 through 16) that display the real-time logic ON/OFF status of each corresponding 120VAC field input point.

Q: What warranty coverage comes with this surplus input card?

A: Every module comes backed by a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, thoroughly inspected, cleaned, and bench-tested under live 120VAC loads prior to shipping.
