Product Introduction & Engineering Value
Most industrial control cabinets still rely on 24 VDC field devices because they are easy to troubleshoot and widely supported across machine builders. The challenge is maintaining reliable signal acquisition when electrical noise, long cable runs, and mixed sensor types are present.
The GE IC693MDL645 is a 16-point positive logic DC input module designed for the Series 90-30 PLC platform. It accepts standard 24 VDC discrete signals from field devices and provides dependable isolation between field wiring and controller logic, making it suitable for machine automation, process control, and material handling applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Model | IC693MDL645 |
| Product Type | Positive Logic DC Input Module |
| PLC Family | Series 90-30 |
| Number of Inputs | 16 |
| Input Groups | Two isolated groups of 8 |
| Nominal Input Voltage | 24 VDC |
| Operating Voltage Range | 0–30 VDC |
| ON-State Voltage | 11.5–30 VDC |
| OFF-State Voltage | 0–5 VDC |
| Input Current | Approximately 7 mA at 24 VDC |
| Input Filter | 1 ms typical |
| Isolation | 1500 VAC field-to-backplane |
| LED Indicators | One LED per input point |
| Backplane Current | Approximately 90 mA @ 5 VDC |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Mounting | Any standard Series 90-30 I/O slot |
Field Application & The “Trench” Experience
An automated warehouse experienced intermittent pallet positioning faults during peak production. Operators initially suspected encoder failures, but diagnostics showed that several 24 VDC photoelectric sensors occasionally failed to register because of deteriorated terminal connections on an aging input card.
Maintenance technicians replaced the existing module with an IC693MDL645, verified each sensor channel, and completed an I/O validation before restarting the conveyor. Once the wiring issues were corrected, the PLC consistently detected every pallet transition without modifying the application program or replacing the field sensors.
Common application scenarios include:
- Automated conveyor photoeye monitoring
- Packaging machine safety interlock status
- Motor starter auxiliary contact feedback in manufacturing cells

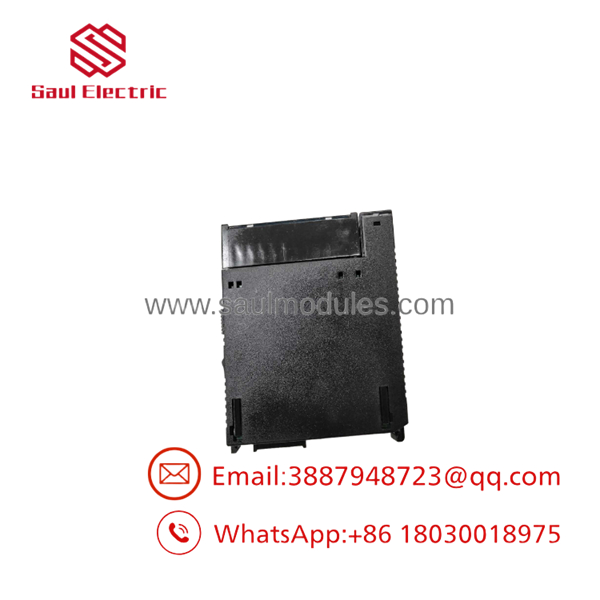

IC693MDL645

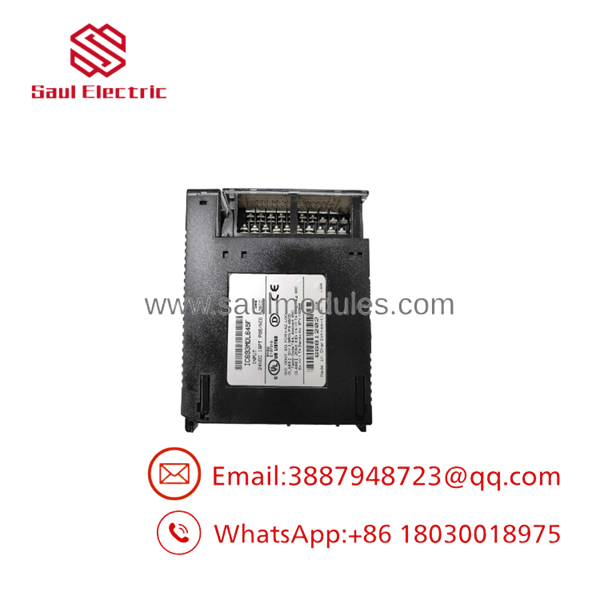

IC693MDL645
Transparency SOP: QA & Testing
Every module is inspected and functionally tested before shipment.
- Verify catalog number, hardware revision, and terminal identification.
- Inspect housing, backplane connector, and PCB for mechanical damage.
- Apply calibrated 24 VDC signals to all 16 input channels.
- Confirm LED indication and PLC input mapping for every point.
- Verify isolation, power consumption, and communication with the CPU.
- Complete repeated power-cycle testing to confirm stable operation.
- Package the module using ESD-safe materials and industrial protective packaging.
New Surplus inventory is examined to verify unused condition. Refurbished modules receive additional operational testing under full-channel loading before shipment.
The Veteran’s Tech Trap Guide
⚠️ Positive Logic Only
The IC693MDL645 is designed for positive logic (sourcing) inputs. Connecting it to sinking field wiring without verifying the electrical design can leave every input permanently OFF, even though the sensors appear to operate normally.
⚠️ Don’t Ignore Group Commons
The module divides its 16 inputs into two groups of eight, with separate common terminals. Incorrectly wiring the common connections is one of the most frequent causes of commissioning delays after replacement.
PRO TIP: Before replacing the module, record the existing terminal wiring and verify sensor polarity with a multimeter. Many “failed modules” turn out to be wiring faults or failed field power supplies rather than defective PLC hardware.
⚠️ High-Speed Signals Need Dedicated Hardware
Although the IC693MDL645 offers a fast response suitable for standard machine control, it is not intended for encoder feedback or high-speed pulse counting. Use a dedicated high-speed input module for those applications.
Dynamic FAQ
Q1. What devices are commonly connected to the IC693MDL645?
Typical devices include 24 VDC proximity sensors, photoelectric sensors, pushbuttons, selector switches, auxiliary relay contacts, and limit switches used in industrial automation systems.
Q2. Is the a sourcing or sinking input module?
It is a positive logic (sourcing) DC input module, intended for use with compatible field wiring and sensor configurations.
Q3. How are the inputs organized?
The module provides 16 input channels divided into two isolated groups of eight, simplifying field wiring and improving electrical isolation.
Q4. Can the module be installed in any Series 90-30 rack?
Yes. The can be installed in any compatible Series 90-30 I/O slot, provided sufficient backplane power is available.
Q5. Does each input have a status indicator?
Yes. Every input channel includes an individual LED indicator, allowing technicians to quickly verify field signal status during startup and troubleshooting.
Q6. How are New Surplus modules verified?
Each New Surplus module is inspected for unused condition, correct part identification, connector integrity, and cosmetic quality. Refurbished units additionally complete comprehensive functional testing, channel verification, isolation testing, and repeated power-cycle validation before shipment.
