GE IC693MDL646 Series 90-30 24VDC Input Module (16-Point)

Description

Product Introduction

The GE Fanuc IC693MDL646 is a 16-point 24 Volt DC Positive/Negative Logic (Sink/Source) Input Module for GE Series 90-30 PLC systems. Occupying a single option slot on any CPU, expansion, or remote baseplate, it converts field signals from optical sensors, proximity switches, pushbuttons, and solid-state outputs into internal logic states for the main processor.

Configured in two isolated groups of 8 points, the IC693MDL646 offers dual-logic flexibility: depending on how field commons are wired, it can accept either sourcing (positive logic) or sinking (negative logic) input devices. Its optical isolation protects delicate rack electronics from field electrical noise, and the hinged front door includes a 16-LED status grid for instant visual troubleshooting.

Key Technical Specifications

Application Scenarios & The “Trench” Experience

At 10:15 PM during an evening shift at an automated bottling plant, the main case packing lane suddenly locked up. The status lights on points 1 through 8 of the installed 24VDC input card went totally dark after a short circuit on a photo-eye power line burned out the input optocoupler array on Group A. With the palletizer starving for cases, the conveyor system sat completely idle, risking major shipment delays.

Application Scenarios

• High-Speed Sensor Processing: Reads PNP/NPN proximity sensors, photo-eyes, and laser distance switches requiring fast (~7 ms) response.
• Palletizer & Conveyor Routing: Monitors zone occupancy switches, diverter position sensors, and jam-detect photo-eyes.
• Robotic End-of-Arm Tooling: Integrates discrete 24VDC gripper closed/open feedback sensors and part-present switches.
• Automated Assembly Skids: Interfaces operator panel 24V pushbuttons, key switches, and solid-state safety relay output channels.

Field Case Study

A automotive parts manufacturing facility in Indiana suffered an unexpected downtime event on their primary robot welding cell when a 24V DC power supply short ruined the input channels of their legacy IC693MDL646 module. The station was stuck in mid-cycle, stalling the entire line at a cost of $9,500 per hour. We dispatched a bench-tested, pre-cleared surplus IC693MDL646 module via local courier. The shift electrician popped off the removable terminal block without disturbing field wiring, snapped it onto the new card, slid the module into option slot 4, and had the robot welding cell running again in under 15 minutes.

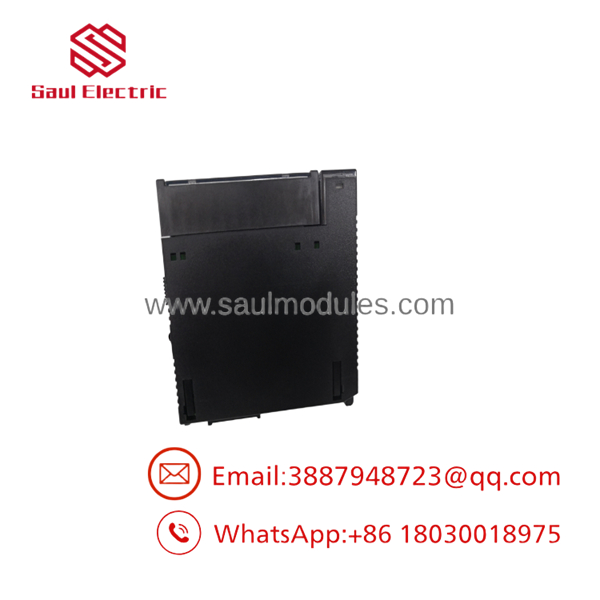

IC693MDL646

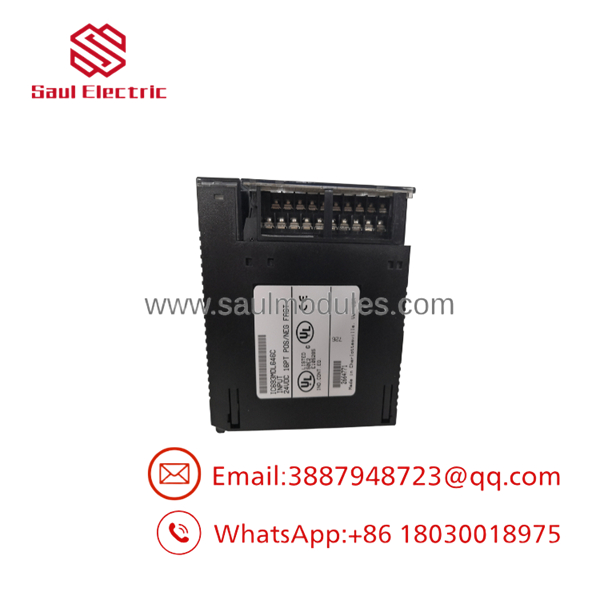

IC693MDL646

Transparency SOP: Quality Assurance & Testing

We test every IC693MDL646 unit under live load on active GE test racks before it enters our ready-to-ship inventory.

1. Inbound Visual Verification: Inspection for casing fractures, bent card-edge backplane pins, intact terminal block latches, and OEM tag authenticity.
2. Backplane Power-On Check: Slotted into an active GE Series 90-30 rack (IC693CHS392 driven by an IC693PWR330 supply) to confirm power-up and backplane communication.
3. 16-Point Field Voltage Sweep: Applied 24 VDC test signals across all 16 channels in both sinking (NPN) and sourcing (PNP) configurations to confirm exact switching thresholds (ON at >11.5VDC, OFF at <5VDC) and LED activations.
4. Thermal Soak & Stress Test: Executed continuous high-frequency pulse inputs across all channels for 4 hours inside a thermal test chamber to ensure zero optocoupler signal drift.
5. ESD Sealing & Final QC: Cleaned, terminals verified, and sealed inside heavy-duty ESD shielding with custom impact-resistant protective foam packaging.

The Veteran’s Tech Trap Guide

• ⚠️ Utilize the Removable Terminal Block: You do not need to disconnect field wires when swapping a failed ! The module features a 20-terminal removable connector block. Simply loosen the top/bottom retaining screws, pop off the wired terminal block, swap the module, and snap the block onto the replacement unit.
• ❗ Never Hot-Swap on the Baseplate: The GE Series 90-30 backplane is not hot-swappable! Inserting or pulling the while the rack power supply is energized can arc backplane pins, ruin internal backplane transceivers, or trigger an immediate CPU hardware fault. Always kill rack power first.
• ⚠️ Wiring Sinking vs. Sourcing Logic: Group A (Points 1–8) uses Terminal 1 as its Common, while Group B (Points 9–16) uses Terminal 11 as its Common. For positive logic (sourcing input), connect the Common terminal to 24VDC (-). For negative logic (sinking input), connect the Common terminal to 24VDC (+).
• ❗ Check Voltage Drop Across Long Sensor Runs: The turn-on threshold for the is 11.5 VDC. If you have long field wire runs or multiple sensors wired in series, verify that line voltage drop doesn’t cause the voltage at the input terminal to slip below 11.5 VDC during active sensor states.

Frequently Asked Questions (FAQ for Conversion)

Q: Is the GE Fanuc hot-swappable?

A: No. You must turn off main power to the Series 90-30 baseplate before removing or installing the module to prevent backplane or chip damage.

Q: Can I use both PNP (Sourcing) and NPN (Sinking) sensors on the same card?

A: Yes, but only by group! Because the module has two separate isolated commons (Terminal 1 for points 1–8 and Terminal 11 for points 9–16), you can wire one group as Positive Logic (PNP) and the second group as Negative Logic (NPN).

Q: What is the response time of the compared to AC input cards?

A: The features a fast ~7 ms filter delay time (both ON and OFF), making it significantly faster than standard AC input cards (like the IC693MDL240, which has a ~30 ms delay).

Q: Do I need to re-program the PLC when replacing an ?

A: No. As long as the replacement unit matches the model number and is installed in the same option slot, no software reconfiguration or ladder logic editing is required.

Q: What warranty coverage comes with this surplus input card?

A: Every module comes backed by a full 12-month replacement warranty. All units are authentic GE Fanuc surplus equipment, thoroughly inspected, cleaned, and bench-tested under live 24VDC input loads prior to shipping.
