Product Introduction & Engineering Value
Distributed I/O networks become increasingly difficult to maintain when multiple proprietary communication interfaces coexist within the same control system. Standardizing on PROFIBUS DP allows engineers to simplify wiring, reduce commissioning time, and integrate field devices from multiple manufacturers.
The GE IC693PBM200 is a PROFIBUS DP Master Module developed for the Series 90-30 PLC platform. It manages deterministic communication with distributed I/O, variable frequency drives, valve islands, and intelligent field devices while supporting all standard PROFIBUS DP baud rates up to 12 Mbps and communication with as many as 125 slave nodes.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc (Emerson) |
| Model | IC693PBM200 |
| Product Family | Series 90-30 |
| Module Type | PROFIBUS DP Master Module |
| Network Protocol | PROFIBUS DP Master |
| Supported Slave Devices | Up to 125 DP Slaves |
| Input Data Capacity | 244 Bytes per slave |
| Output Data Capacity | 244 Bytes per slave |
| Supported Baud Rates | 9.6K, 19.2K, 93.75K, 187.5K, 500K, 1.5M, 3M, 6M, 12M baud |
| PROFIBUS Connector | 9-pin D-Sub Female |
| Service Port | RS-232 (Firmware Upgrade) |
| Backplane Current | 450 mA @ 5 VDC (Typical) |
| CPU Requirement | Series 90-30 CPU Firmware Release 8.00 or later |
| Programming Software | Proficy Machine Edition Logic Developer PLC |
| Mounting Location | Any Series 90-30 baseplate slot except Slot 1 of a modular CPU baseplate |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Diagnostic Features | Slave Status Array, Network Counters, DP Master Diagnostics, Firmware Revision Monitoring |

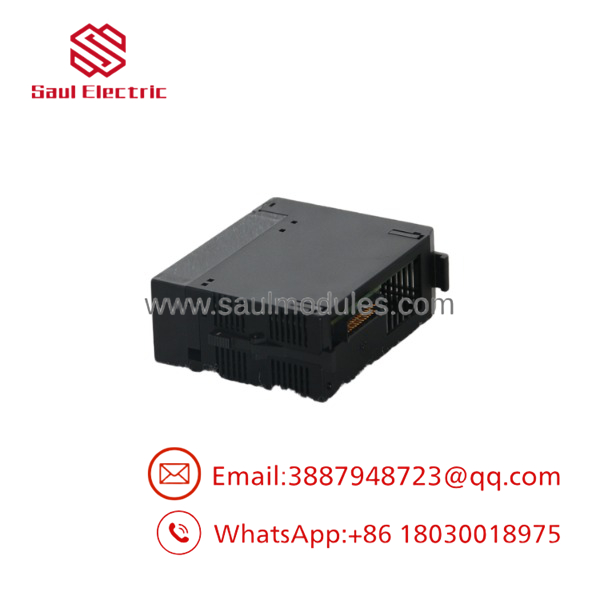

IC693PBM200
Field Application & The “Trench” Experience
A steel processing plant replaced several hardwired remote I/O panels with PROFIBUS DP field stations to reduce installation costs. The existing Series 90-30 controller remained reliable, but it required a communication interface capable of coordinating multiple distributed devices over a single network.
Engineers installed an IC693PBM200, configured the network topology in Proficy Machine Edition, and commissioned more than forty PROFIBUS DP slave stations without modifying the existing control strategy. The migration significantly reduced cabinet wiring while providing centralized diagnostics for every field device.
Typical applications include:
- Rolling mill distributed I/O control
- Process skid integration using PROFIBUS valve islands
- Packaging systems with PROFIBUS-enabled variable frequency drives
Transparency SOP: QA & Testing
Every communication module follows a documented quality verification process before shipment.
- Verify model number, firmware revision, and hardware identification.
- Inspect the PROFIBUS connector, RS-232 service port, PCB, and backplane contacts.
- Install the module in a Series 90-30 test rack.
- Establish communication with multiple PROFIBUS DP slave simulators.
- Verify cyclic I/O exchange, diagnostic messaging, and network synchronization.
- Confirm LED indicators, communication counters, and repeated power-cycle performance.
- Package the module using ESD-safe materials with industrial-grade protective packaging.
New Surplus modules are inspected to verify original unused condition. Refurbished modules additionally complete extended communication and burn-in testing before shipment.
The Veteran’s Tech Trap Guide
⚠️ Don’t Use Logicmaster 90
The IC693PBM200 requires Proficy Machine Edition Logic Developer PLC for configuration. Legacy Logicmaster 90 software cannot configure or maintain this communication module.
⚠️ Verify CPU Firmware Before Installation
The module requires Series 90-30 CPU Firmware Release 8.00 or later, while larger PROFIBUS networks are best supported using Release 10.60 or newer. Installing the module on older CPUs frequently results in configuration or communication limitations.
PRO TIP: Always save the complete PROFIBUS project—including GSD files, slave addresses, baud rate, and network configuration—before replacing the master module. Most startup delays after replacement are configuration related rather than hardware failures.
⚠️ Observe Slot Restrictions
Although the module can be installed in most Series 90-30 baseplate slots, it must not be installed in Slot 1 of a modular CPU baseplate. Verify rack layout before beginning maintenance.
Dynamic FAQ
Q1. What is the primary purpose of the IC693PBM200?
The IC693PBM200 functions as a PROFIBUS DP Master, allowing a Series 90-30 PLC to communicate with distributed I/O stations, drives, valve terminals, and other PROFIBUS DP slave devices.
Q2. How many PROFIBUS devices can one module manage?
The module supports communication with up to 125 PROFIBUS DP slave devices, depending on the network configuration and PLC memory resources.
Q3. Which baud rates are supported?
The supports all standard PROFIBUS DP communication speeds from 9.6 Kbps through 12 Mbps, allowing integration into both legacy and modern PROFIBUS networks.
Q4. Which software is required for configuration?
Configuration is performed using Proficy Machine Edition Logic Developer PLC. Earlier programming environments such as Logicmaster 90 are not supported.
Q5. Can the module be installed in an expansion rack?
Yes. The may be installed in CPU, expansion, or remote baseplates, provided it is not installed in Slot 1 of a modular CPU baseplate.
Q6. How are New Surplus and Refurbished modules verified?
Every module is inspected for hardware identification, connector integrity, firmware revision, PROFIBUS communication performance, diagnostic functionality, and power-cycle reliability. Refurbished units additionally undergo extended communication testing and operational burn-in before shipment.
